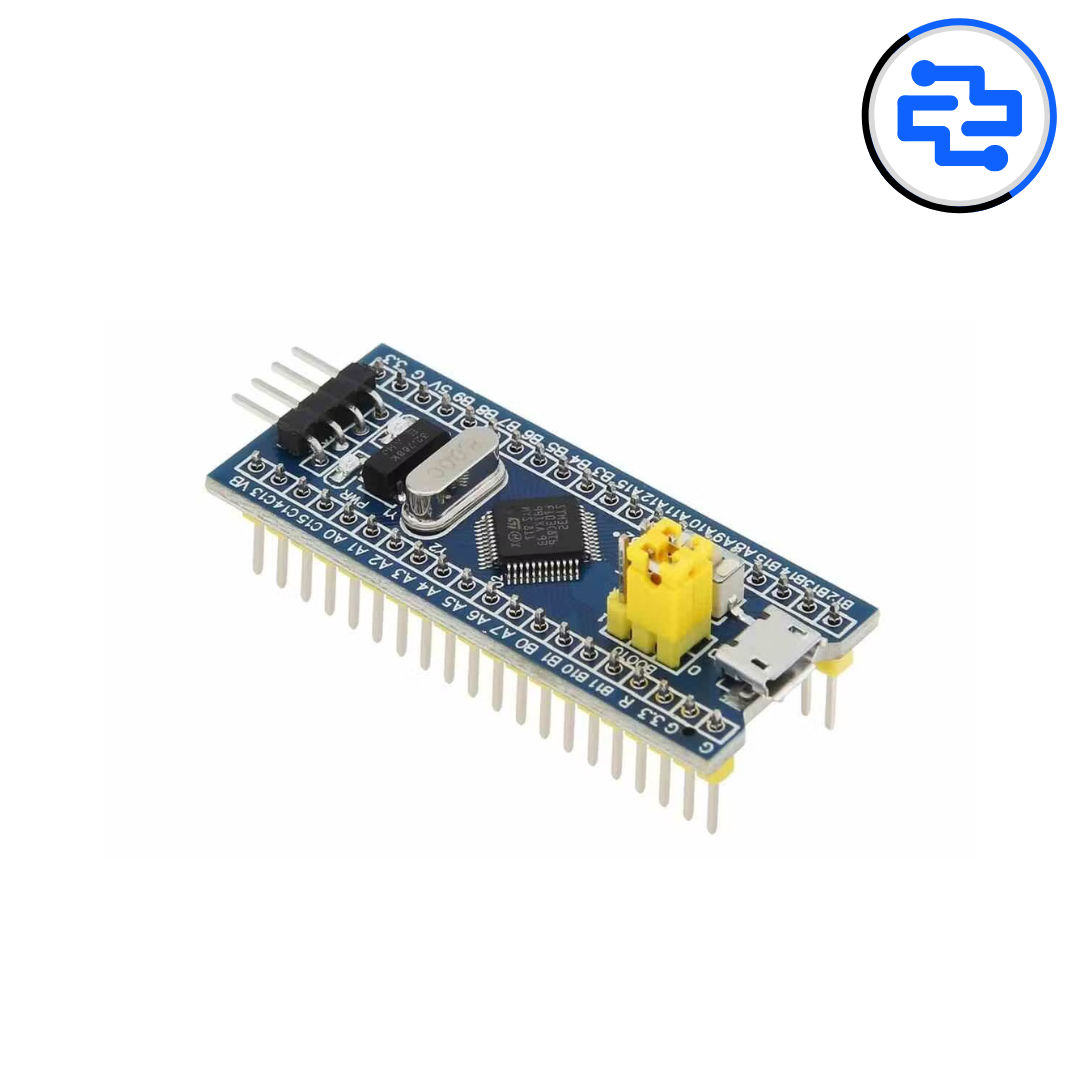

The STM32 F103C8T6 System Board, commonly known as the Blue Pill, is a powerful 32-bit ARM Cortex-M3 microcontroller development board designed for high-performance embedded applications. It offers fast processing, rich peripherals, and low power consumption, making it suitable for robotics, motor control, industrial automation, and real-time embedded systems. With multiple development toolchain options, it is widely used by professionals and advanced learners.

Core Board Specifications

• Microcontroller: STM32F103C8T6
• CPU Core: ARM Cortex-M3
• Maximum Clock Frequency: 72 MHz
• Flash Memory: 64 KB
• SRAM: 20 KB

Electrical & Interface

• Operating Voltage: 3.3 V
• Input Voltage: 4.5–9 V (via VIN or USB)
• GPIO Pins: Up to 37
• ADC: 12-bit, up to 10 channels
• Timers: Advanced, general-purpose, and basic timers
• Communication Interfaces: USART, SPI, I²C, CAN, USB
• Debug Interface: SWD (Serial Wire Debug)

Performance Characteristics

• High-speed 32-bit processing
• Deterministic real-time performance
• Rich peripheral set for complex applications
• Efficient power usage for embedded designs

Physical Characteristics

• Board Type: Microcontroller system board
• Form Factor: Compact DIP-style
• USB Connector: Micro-USB (power and optional programming)
• Breadboard-friendly pin layout

Compatibility

• Arduino IDE (STM32 core)
• STM32CubeIDE
• PlatformIO
• Keil, IAR toolchains
• Sensors, motor drivers, displays, and communication modules

Key Advantages

• High performance at low cost
• Extensive peripheral support
• Professional-grade MCU architecture
• Large open-source community

Technical Insights

• Native USB supports device functionality
• 5 V tolerant GPIOs (except analog pins)
• External programmer (ST-Link) recommended for debugging
• Clock source selectable via internal/external crystal

Applications

• Robotics and automation
• Motor control systems
• Industrial controllers
• Data acquisition systems
• Embedded and real-time applications

Pro Tip

• Use ST-Link for reliable programming and debugging
• Configure clock properly for 72 MHz operation
• Avoid powering GPIOs directly with 5 V
• Use CubeMX for fast peripheral configuration

Package Includes

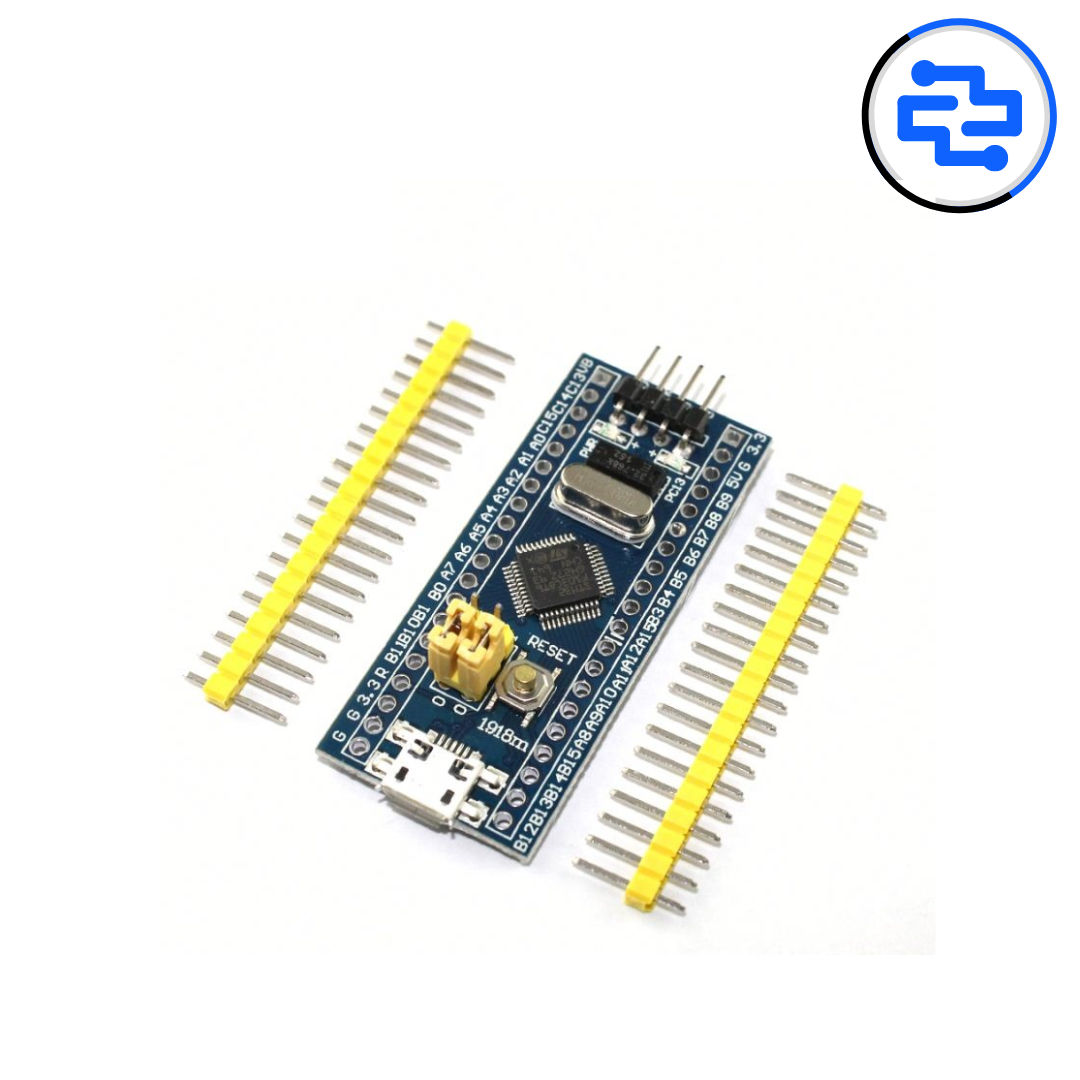

• 1 × STM32 F103C8T6 System Board

STM32 F103C8T6 System Board

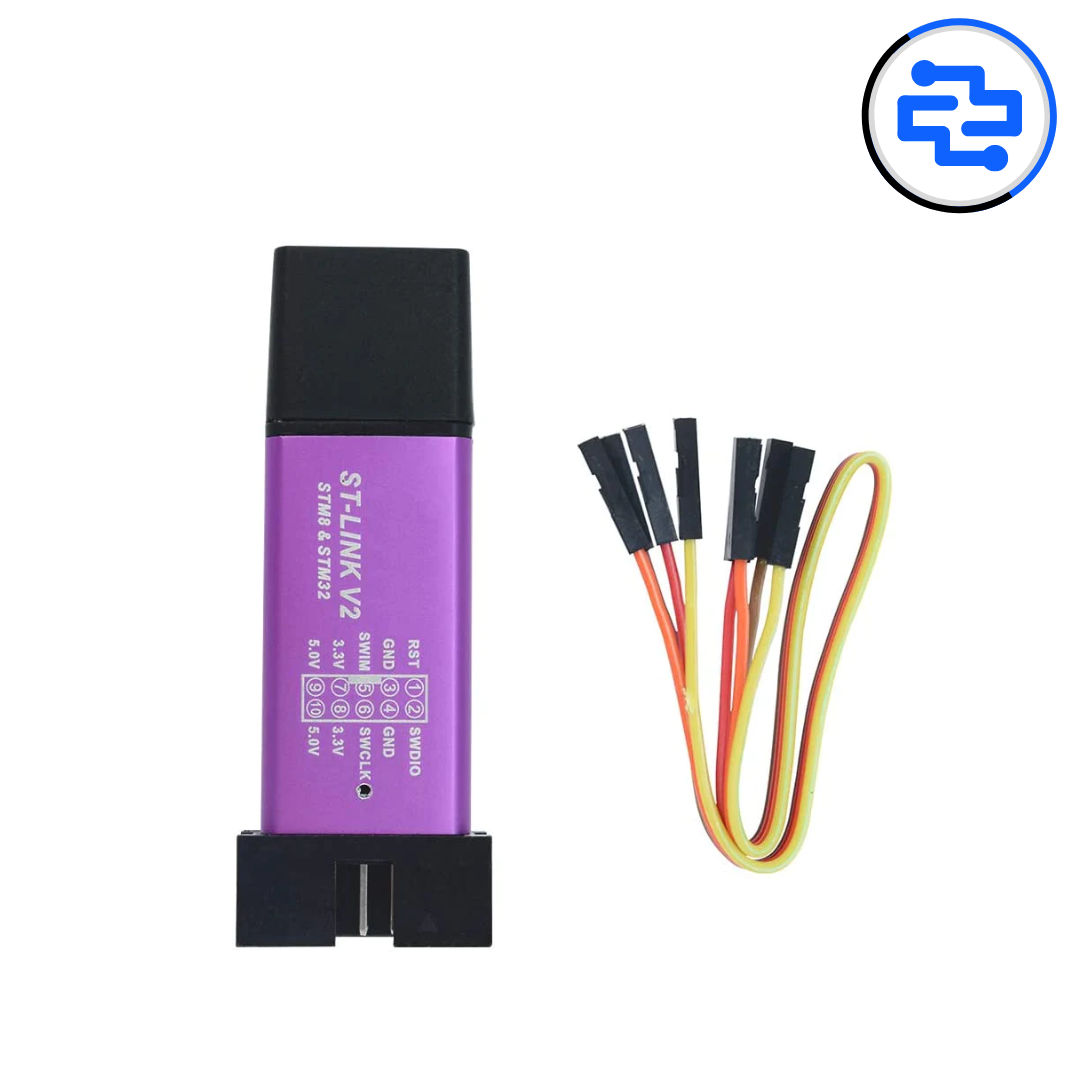

ST Link V2 Programmer For STM8 and STM32
