A crystal oscillator is an electronic circuit that generates a precise electrical signal by harnessing the mechanical resonance of a vibrating quartz crystal. The crystal’s piezoelectric properties cause it to oscillate at a specific frequency when an electric current is applied.

This highly accurate frequency is widely used for timekeeping, such as in quartz wristwatches, and provides a stable clock signal for digital circuits. Crystal oscillators are also essential for stabilizing frequencies in radio transmitters and receivers, ensuring reliable and consistent communication.

Features:

Frequency: 16 MHz
Tolerance: 30%
Operating Temperature Range: -10°C to +60°C
Storage Temperature Range: -20°C to +70°C

Specification:

Frequency Range	16 MHz
Tolerance (%):	30
Operating Temperature Range	-10°C to +60°C
Storage condition (℃)	-20 to 70
Length (mm):	10
Width (mm):	4.4
Height (mm):	3.3
Weight (g):	1 (approx) (each)

Application:

Clocks
radios
computers.

Package Includes:

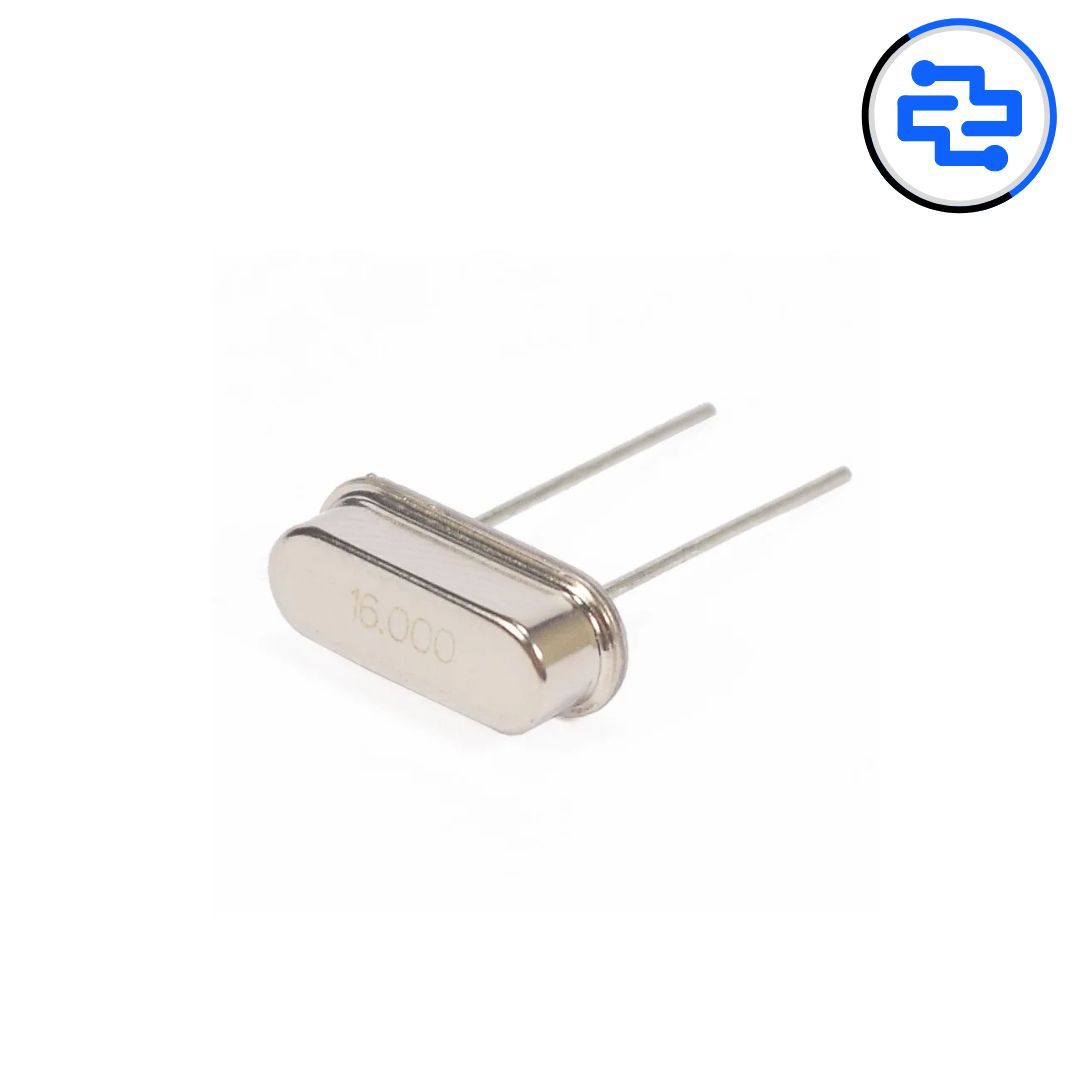

1 x 16MHz Quartz Crystal Oscillator DIP.
