This compact 5V voltage regulator module uses the AMS1117-5.0 chip to deliver stable 5V output from unregulated DC sources (7–12V). Ideal for powering Arduino, sensors, and microcontrollers, it features overheat/overcurrent protection and requires minimal external components.

Key Benefits
✔ Stable Output – Fixed 5V ±2% accuracy
✔ Built-in Protections – Thermal shutdown, current limiting
✔ Space-Saving – Ultra-compact PCB design
✔ Low Dropout – Operates down to 1V input-output differential

Technical Specifications

Core Specifications
Input Voltage: 6.5V–12V DC (max 15V)

Output Voltage: 5.0V ±2%

Output Current: 1A max (continuous)

Dropout Voltage: 1.1V (typ. @800mA)

Operating Temp.: -40°C to +125°C

Electrical Characteristics
Ripple Rejection: 60dB (noise suppression)

Quiescent Current: 5–10mA

Interface: 3-pin (IN, GND, OUT)

Physical Properties
Dimensions: 11mm × 15mm × 4mm

Mounting: Through-hole pins

Thermal Pad: Onboard copper heatsink

Why Choose This Regulator?
✔ Plug-and-Play – Directly powers 5V projects
✔ Robust Design – Handles voltage spikes/surges
✔ Cost-Effective – Cheaper than switching modules for low-current uses

Common Applications:

Arduino Uno/Nano power backup

Sensor arrays (e.g., multiple sensors)

Breadboard-friendly prototyping

Battery-powered systems (7–9V input)

Pro Tip:

Heat management: Add a heatsink if drawing >500mA continuously.

Input filtering: Use ≥10μF capacitor at input for noisy sources.

Package Includes:

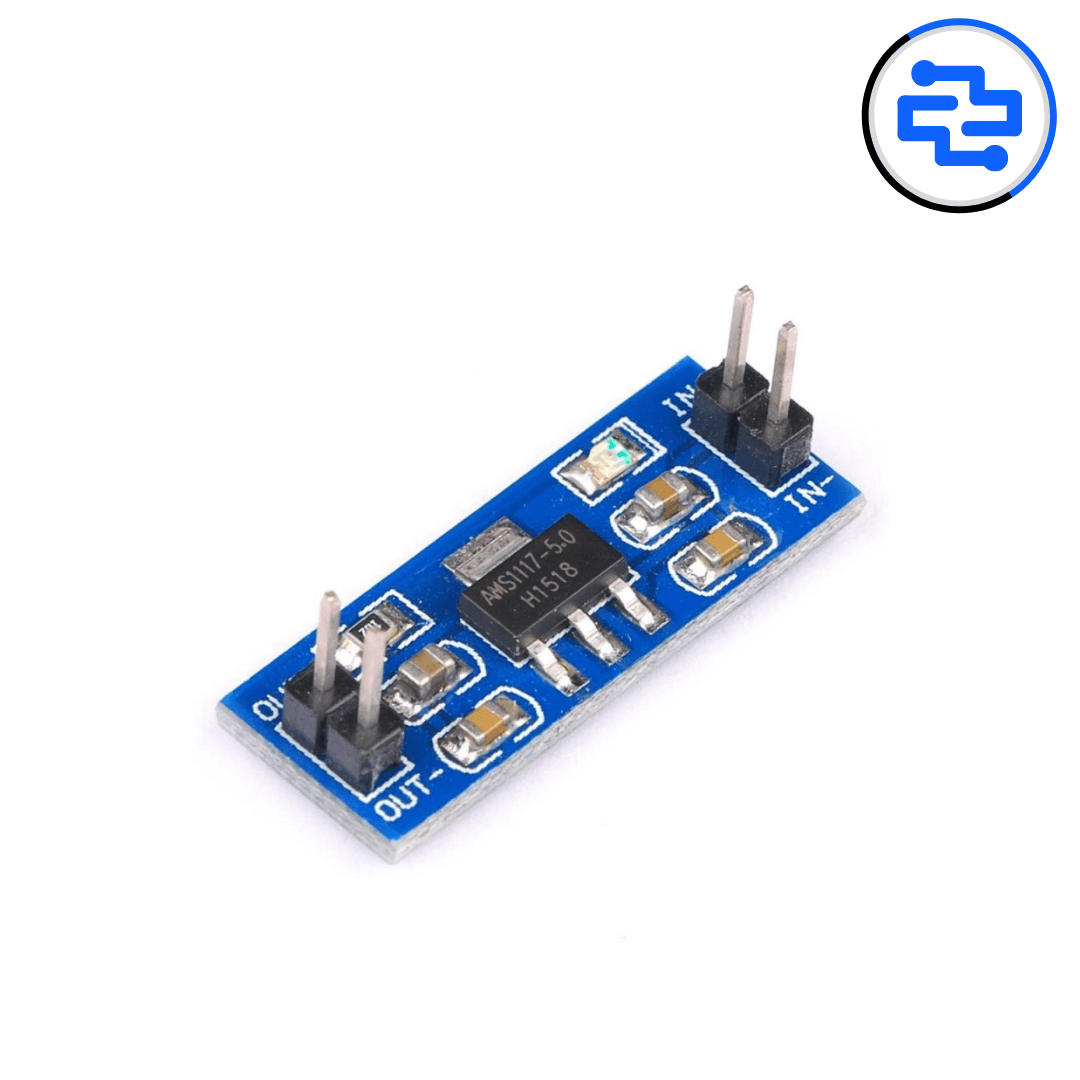

1 × AMS1117-5.0 Power Supply Module
