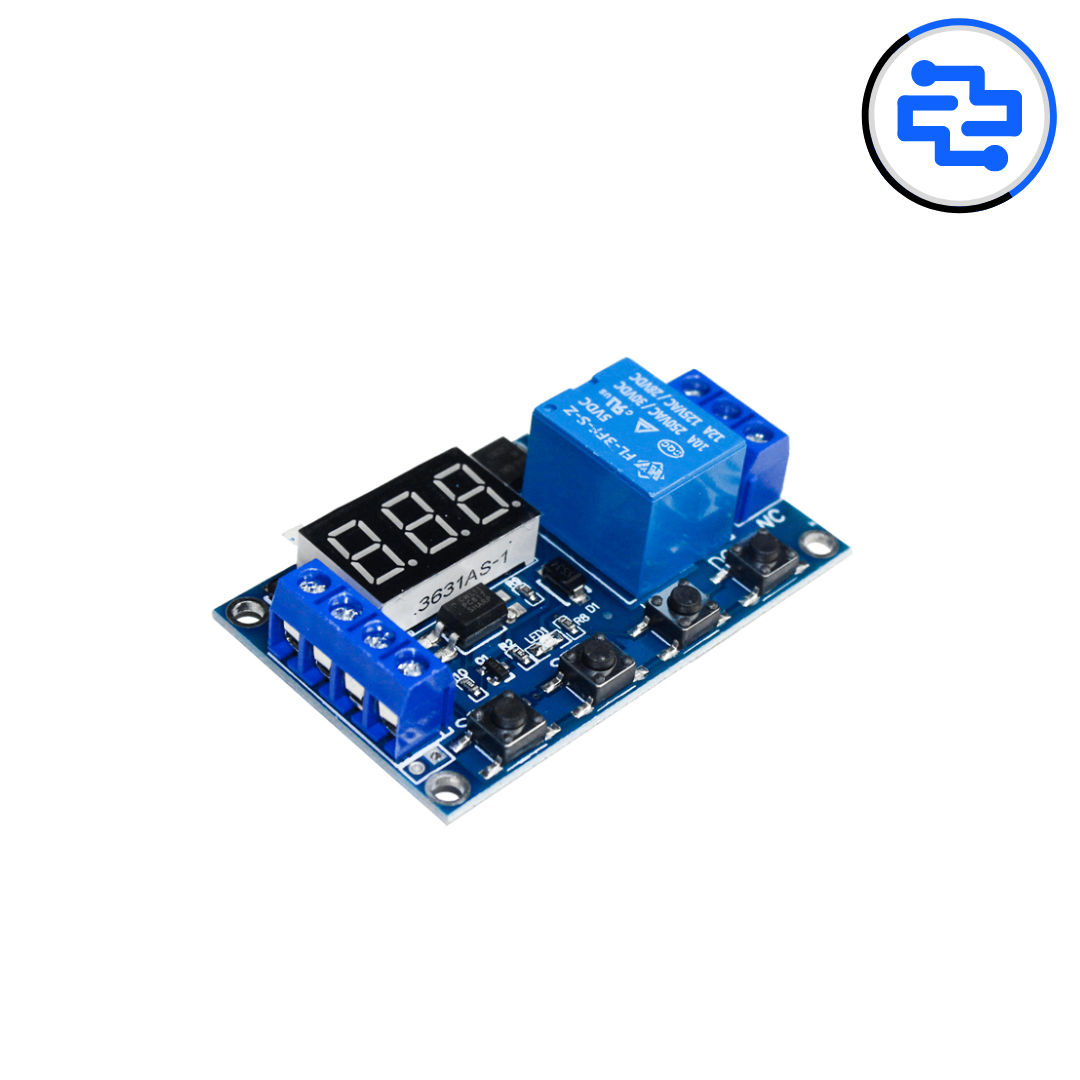

The 1-Channel Power Relay Module with Adjustable Timing Cycle is a smart delay relay controller designed to automatically turn loads ON or OFF based on a configurable time cycle. It integrates a high-power electromagnetic relay, onboard timing control buttons, and a digital display for precise delay configuration. This module is widely used in automation, pump control, lighting systems, motor control, and DIY timer-based applications where accurate time-based switching is required.
Core Module Overview
• Module Type: Time delay relay controller
• Relay Channels: 1
• Control Type: Adjustable timing cycle (delay ON / delay OFF)
• User Interface: Push buttons with digital display
Electrical & Interface
• Operating Voltage: Typically 5 V / 12 V DC (module variant dependent)
• Relay Rating: Up to 10 A @ 250 V AC / 30 V DC
• Relay Contacts: COM, NO, NC
• Control Method: Onboard buttons (no MCU required)
• Output Type: Isolated relay switching
Timing & Control Characteristics
• Timing Range: Milliseconds to hours (mode dependent)
• Display: 3-digit 7-segment LED
• Timing Accuracy: High, with digital control
• Multiple Timing Modes: Delay ON, Delay OFF, cyclic operation (variant dependent)
Physical Characteristics
• Module Type: PCB-mounted relay controller
• Display Type: LED digital display
• Buttons: Mode, Set, Up, Down
• Compact and robust design with mounting holes
Compatibility
• AC and DC loads
• Pumps, motors, lights, heaters
• PLC and relay-based automation systems
• DIY electronics and control panels
• Industrial and home automation projects
Key Advantages
• No programming required
• Precise digital timing control
• High-power relay output
• Easy configuration via onboard buttons
Technical Insights
• Timing parameters stored in onboard controller
• Relay provides electrical isolation
• Load wiring must follow safety practices
• Module voltage must match supply rating
Applications
• Pump delay and cyclic control
• Automatic lighting timers
• Motor start/stop delay systems
• Appliance automation
• Industrial timing control tasks
Pro Tip
• Double-check relay contact wiring (NO/NC)
• Set timing with load disconnected first
• Use enclosure for mains voltage safety
• Avoid exceeding relay current rating
Package Includes
• 1 × 1-Channel Power Relay Module with Adjustable Timing Cycle
