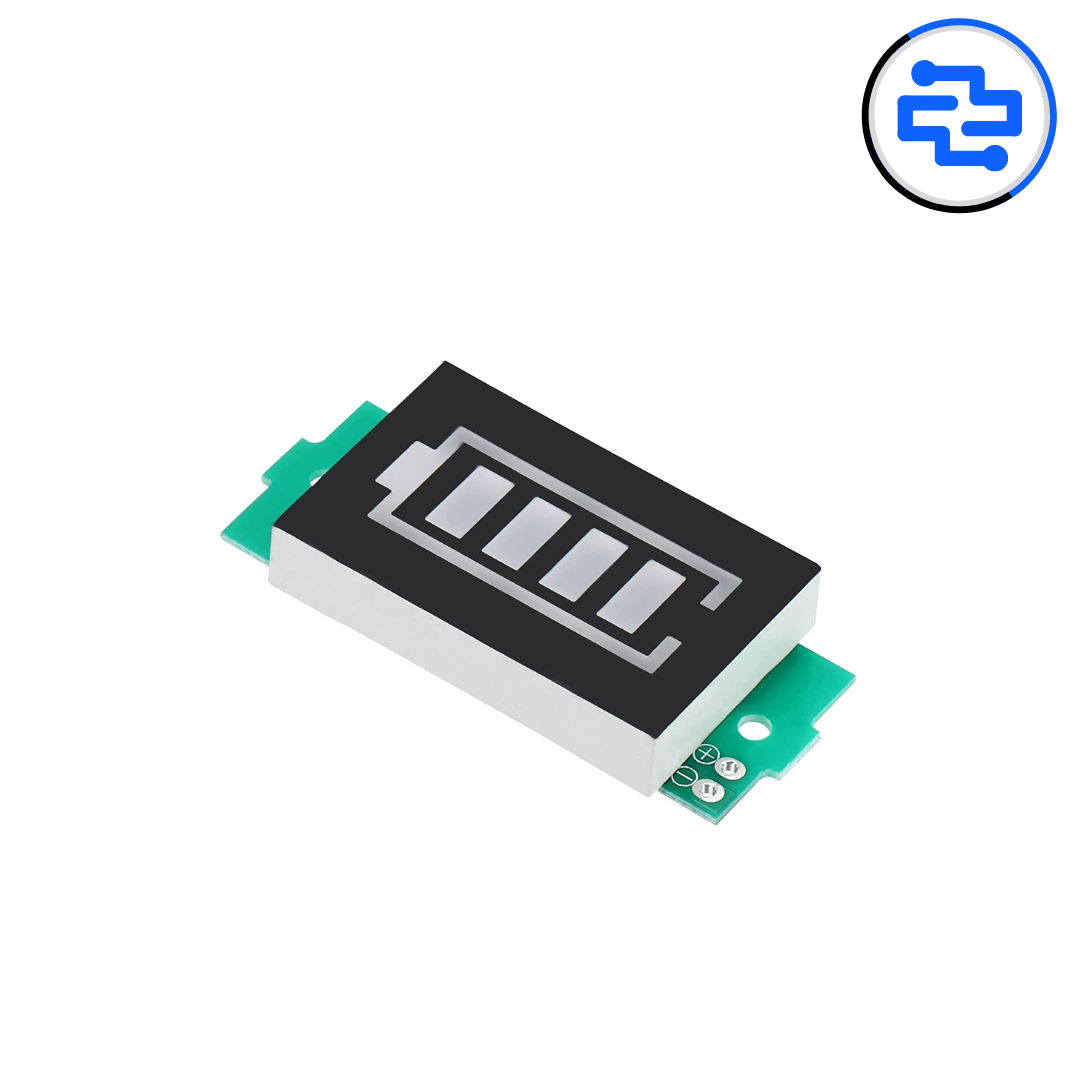

The 1S to 8S Battery Level Indicator Module is a compact and efficient display board designed to visually monitor the voltage level of lithium battery packs ranging from 1 cell (1S) to 8 cells (8S) in series. Equipped with a bright LED bar display, it provides an instant and accurate representation of battery charge status, making it ideal for DIY battery packs, e-bikes, solar storage systems, and RC projects. Its plug-and-play design allows quick connection directly to the battery’s balance port or main terminals for real-time voltage indication.
Technical Specifications
Core Specifications
Supported battery type: Lithium-ion/LiPo packs from 1S to 8S
Input voltage range: 3.7 V to 33 V DC (automatic cell detection)
Display type: Multi-segment LED bar for cell voltage indication
Measurement accuracy: ±1% (typical)
Current consumption: <15 mA during operation
Electrical & Physical
Automatically detects the number of cells connected (1S–8S)
Clearly marked input terminals for easy wiring
Bright, low-power LEDs for clear visibility in any lighting
Compact PCB design with dimensions approximately 40 mm × 25 mm × 10 mm
Environmental
Operating temperature range: –10 °C to +60 °C
Humidity tolerance: Up to 80% non-condensing
Why Choose the 1S–8S Battery Level Indicator
Provides instant visual feedback of pack voltage and charge level
Supports a wide range of lithium battery configurations (single to eight cells)
Ideal for portable projects, e-bike packs, and custom power systems
Critical Uses
DIY lithium-ion or LiPo battery packs
E-bikes, scooters, and electric skateboards
Solar energy storage monitoring
RC vehicles, drones, and robotics requiring multi-cell packs
Pro Tips
Connect to the balance port for accurate cell-level monitoring
Avoid exceeding 33 V input to protect the module
Use proper insulation and mounting to prevent accidental short circuits
Package Includes
1 × 1S to 8S Battery Level Indicator Module
