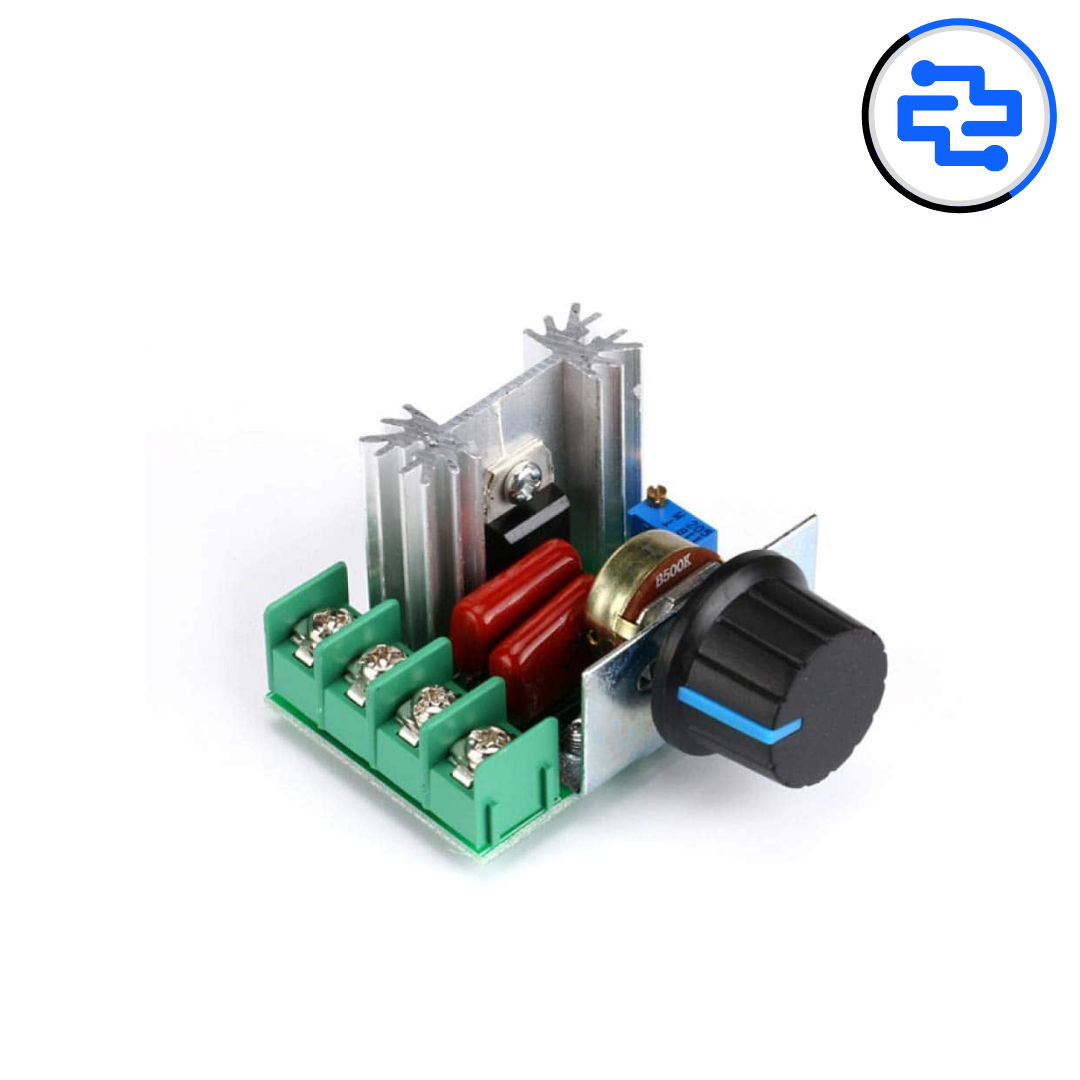

The 220 V AC 2000 W SCR Voltage Regulator is a high-power AC control module designed to regulate output voltage and power delivered to AC loads. Using phase-angle control with SCR (Silicon Controlled Rectifier) technology, it allows smooth adjustment of power for resistive loads such as heaters, lamps, and universal motors. This module is commonly used in dimmers, speed controllers, temperature controllers, and industrial power regulation applications.
Core Module Specifications
• Module Type: AC voltage and power regulator
• Control Method: Phase-angle control using SCR
• Rated Input Voltage: 220 V AC
• Maximum Load Power: Up to 2000 W
Electrical & Interface
• Input Supply: 220–240 V AC
• Output Voltage: Adjustable AC (phase-controlled)
• Load Type: Resistive and some inductive loads
• Control Interface: Onboard potentiometer
• Electrical Isolation: No isolation between control and mains
Performance Characteristics
• Smooth power adjustment from low to high output
• Stable operation under continuous load
• Efficient control with minimal power loss
• Output waveform is chopped AC (not pure sine wave)
Physical Characteristics
• Module Type: PCB-mounted AC regulator
• Cooling: Large aluminum heatsink
• Control Knob: Panel-mount potentiometer
• Robust construction for high-power operation
Compatibility
• Electric heaters and heating elements
• AC lamps and incandescent bulbs
• Universal AC motors (fans, drills)
• Temperature and speed control systems
Key Advantages
• Simple and reliable AC power control
• High power handling capability
• No external controller required
• Compact solution for AC regulation
Technical Insights
• Not suitable for inductive loads without snubber protection
• Output voltage measured by RMS varies with load
• Must be installed in insulated enclosure
• Direct mains handling requires safety precautions
Applications
• Light dimmer circuits
• Heater and temperature controllers
• AC motor speed control
• Industrial power regulation
• DIY and automation projects
Pro Tip
• Always use proper insulation and enclosure
• Do not exceed rated power limit
• Ensure adequate airflow around heatsink
• Not recommended for sensitive electronics or SMPS
Package Includes
• 1 × 220 V AC 2000 W SCR Voltage Regulator Module
