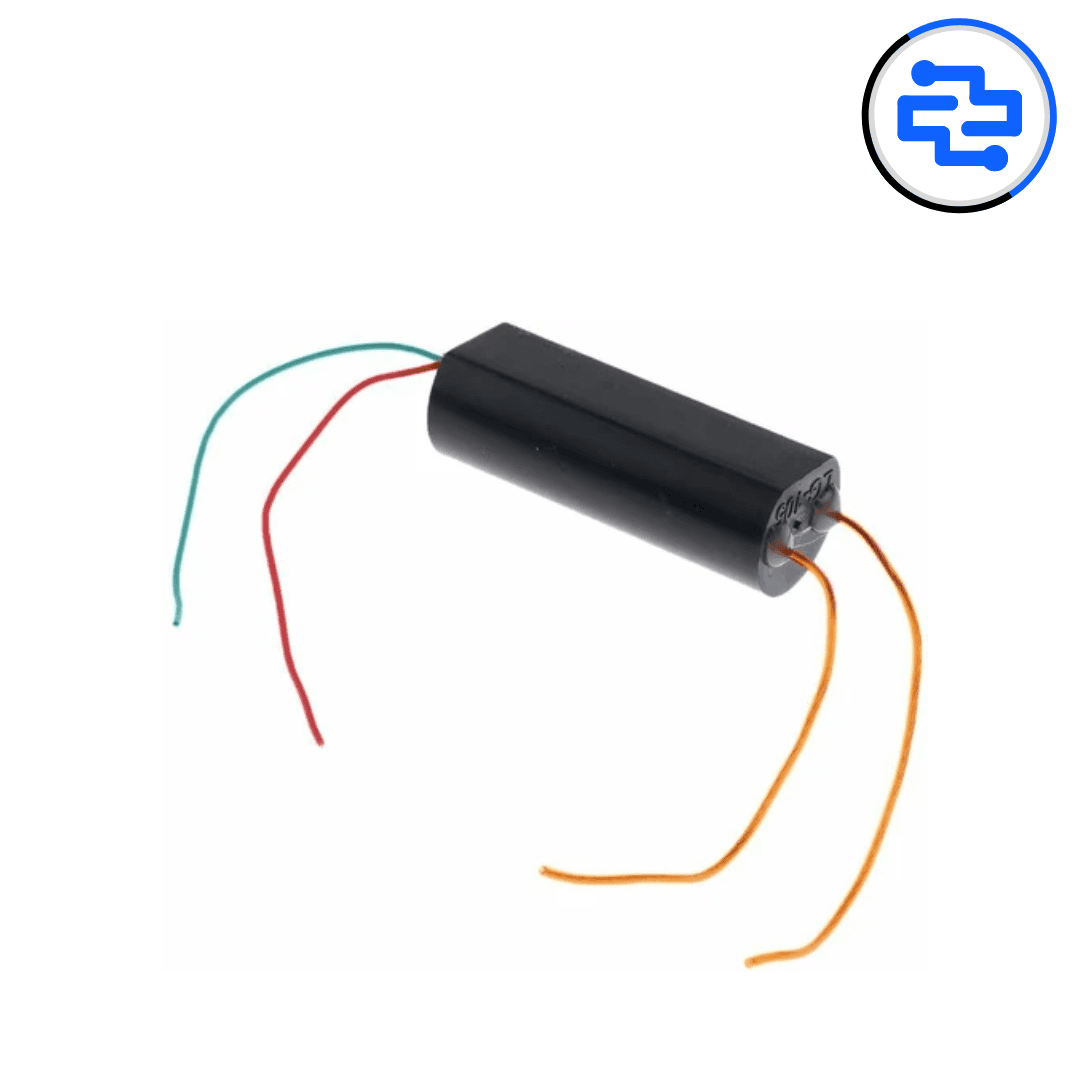

The 400 kV Step Up Power Module is a compact high-voltage DC generator designed to boost a low DC input into a very high-voltage output. Commonly used in educational demonstrations, science experiments, ionizers, ozone generators, and ignition applications, this module produces visible sparks and high electric potential at very low current. Due to its size and simplicity, it is widely used in DIY high-voltage projects and electronics experimentation.
Core Module Specifications
• Module Type: High-voltage DC step-up generator
• Output Voltage: Up to 400 kV (open-circuit, approximate)
• Input Type: Low-voltage DC
• Output Type: High-voltage pulse DC
Electrical & Interface
• Input Voltage: 3 V – 6 V DC (typical operation)
• Input Current: ~1 A – 2 A (load dependent)
• Output Voltage: High-voltage DC (very low current)
• Output Leads: Two high-voltage insulated wires
• Input Leads: Red (+) and Black (−) wires
Performance Characteristics
• Generates visible electric sparks
• Very high voltage with extremely low current
• Continuous spark output with stable power input
• Output intensity depends on input voltage and current
Physical Characteristics
• Module Type: Encapsulated high-voltage transformer
• Body Material: Insulated plastic casing
• Size: Ultra-compact and lightweight
• Pre-attached input and output wires
Compatibility
• Battery-powered DC sources
• Arduino / ESP32 (power control via relay or MOSFET only)
• DIY high-voltage experiments
• Educational electronics kits
Key Advantages
• Produces very high voltage from low DC input
• Compact and easy to integrate
• Low-cost high-voltage solution
• Suitable for demonstrations and experiments
Technical Insights
• Output voltage rating is approximate and open-circuit
• Current is very low but can still cause electric shock
• Must never be powered continuously without airflow
• Not designed for precision or regulated HV output
Applications
• High-voltage science experiments
• Spark generation demonstrations
• Ozone and ion generator projects
• Ignition and discharge testing
• Educational and DIY electronics
Pro Tip
• Never touch output wires while powered
• Use insulated tools and proper safety precautions
• Do not power directly from microcontroller pins
• Limit continuous run time to prevent overheating
Package Includes
• 1 × 400 kV Step Up Power Module
