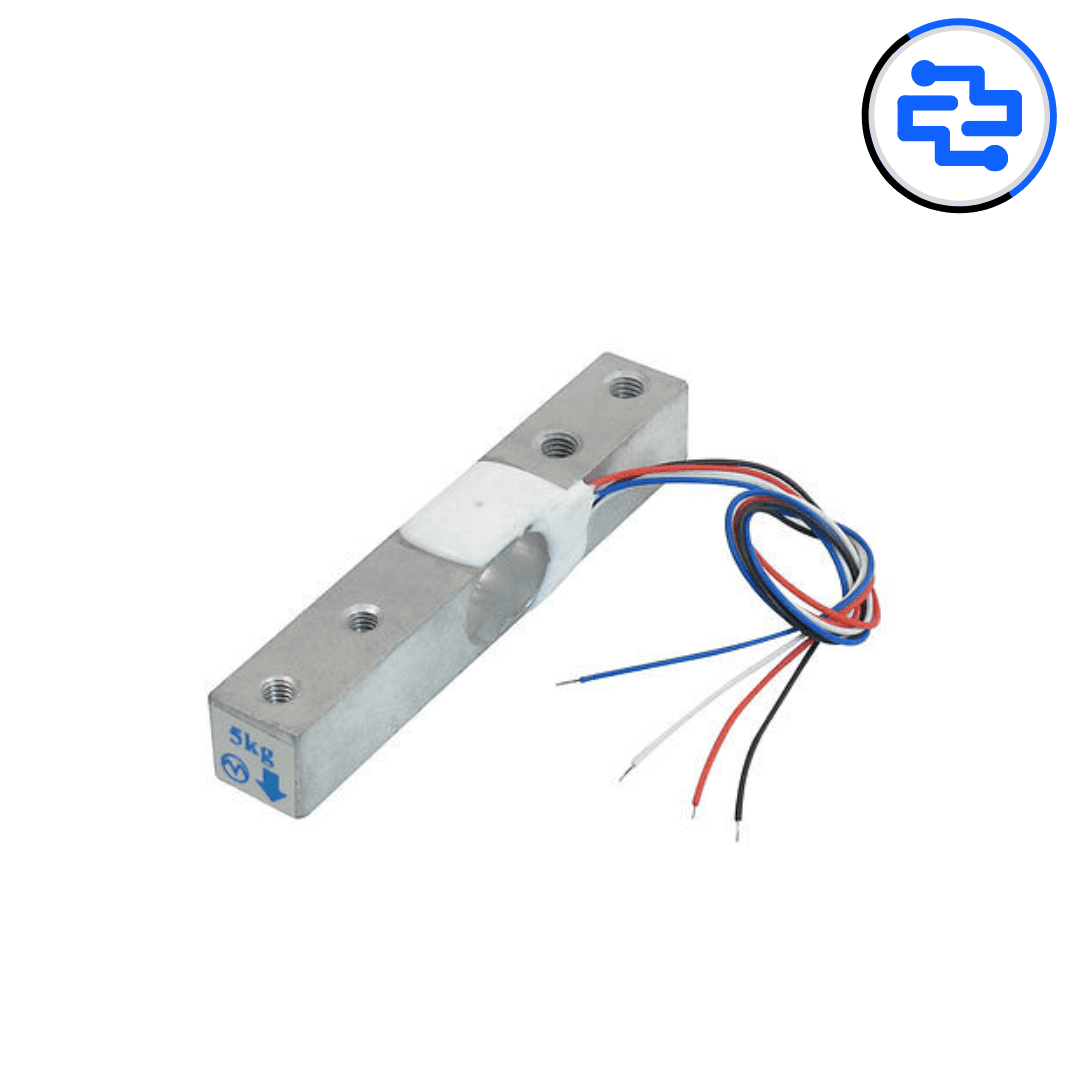

The 5 kg Load Cell Sensor is a strain gauge–based force measurement device designed to measure weight and load up to 5 kilograms with high accuracy. It converts applied force into a small electrical signal, which can be amplified and processed using modules like HX711. This sensor is widely used in digital weighing scales, force measurement systems, and embedded electronics projects.
Core Sensor Specifications
• Sensor Type: Strain gauge load cell
• Maximum Load Capacity: 5 kg
• Measurement Type: Weight / force
• Output Type: Analog (millivolt-level signal)
Electrical & Interface
• Excitation Voltage: 3 V – 12 V DC
• Output Signal: Differential analog (mV/V)
• Typical Sensitivity: ~1.0 mV/V

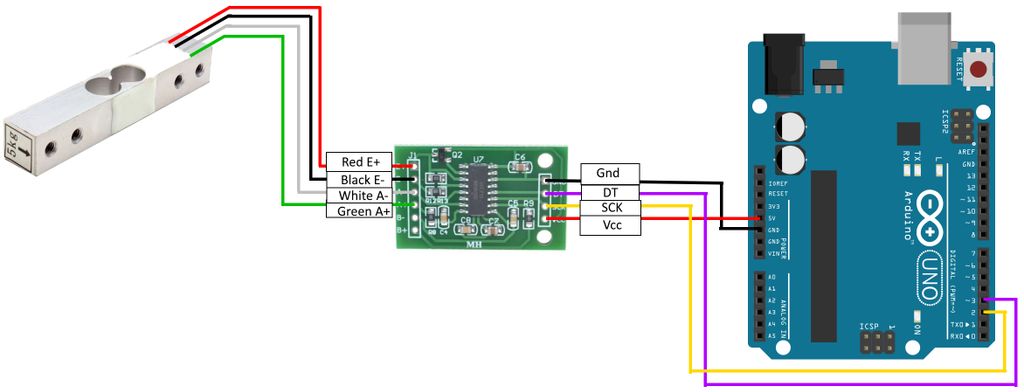

• Wiring: 4-wire configuration
• Interface Requirement: External amplifier (HX711 recommended)
Performance Characteristics
• High accuracy for low to medium weight ranges
• Stable and repeatable measurements
• Suitable for static and slow-changing loads
• Accuracy depends on calibration and mounting
Physical Characteristics
• Sensor Body: Aluminum alloy
• Form Factor: Single-point bar-type load cell
• Mounting: Screw holes for fixed installation
• Compact and lightweight construction
Compatibility
• HX711 weighing amplifier module
• Arduino Uno / Nano / Mega
• ESP8266 / ESP32
• STM32 and other ADC-based microcontrollers
Key Advantages
• Accurate weight measurement up to 5 kg
• Durable metal construction
• Widely supported in DIY and industrial projects
• Easy integration with HX711 modules
Technical Insights
• Measures deformation using strain gauges
• Requires proper mechanical mounting for accuracy
• Temperature and vibration can affect readings
• Software calibration is mandatory
Applications
• Digital weighing scales
• Kitchen and pocket scales
• Load and force measurement systems
• IoT-based weight monitoring
• DIY electronics and automation projects
Pro Tip
• Mount the load cell on a rigid, flat surface
• Always calibrate using known weights
• Avoid side loads and twisting forces
• Use shielded wires to reduce noise
Package Includes
• 1 × 5 kg Load Cell Sensor
