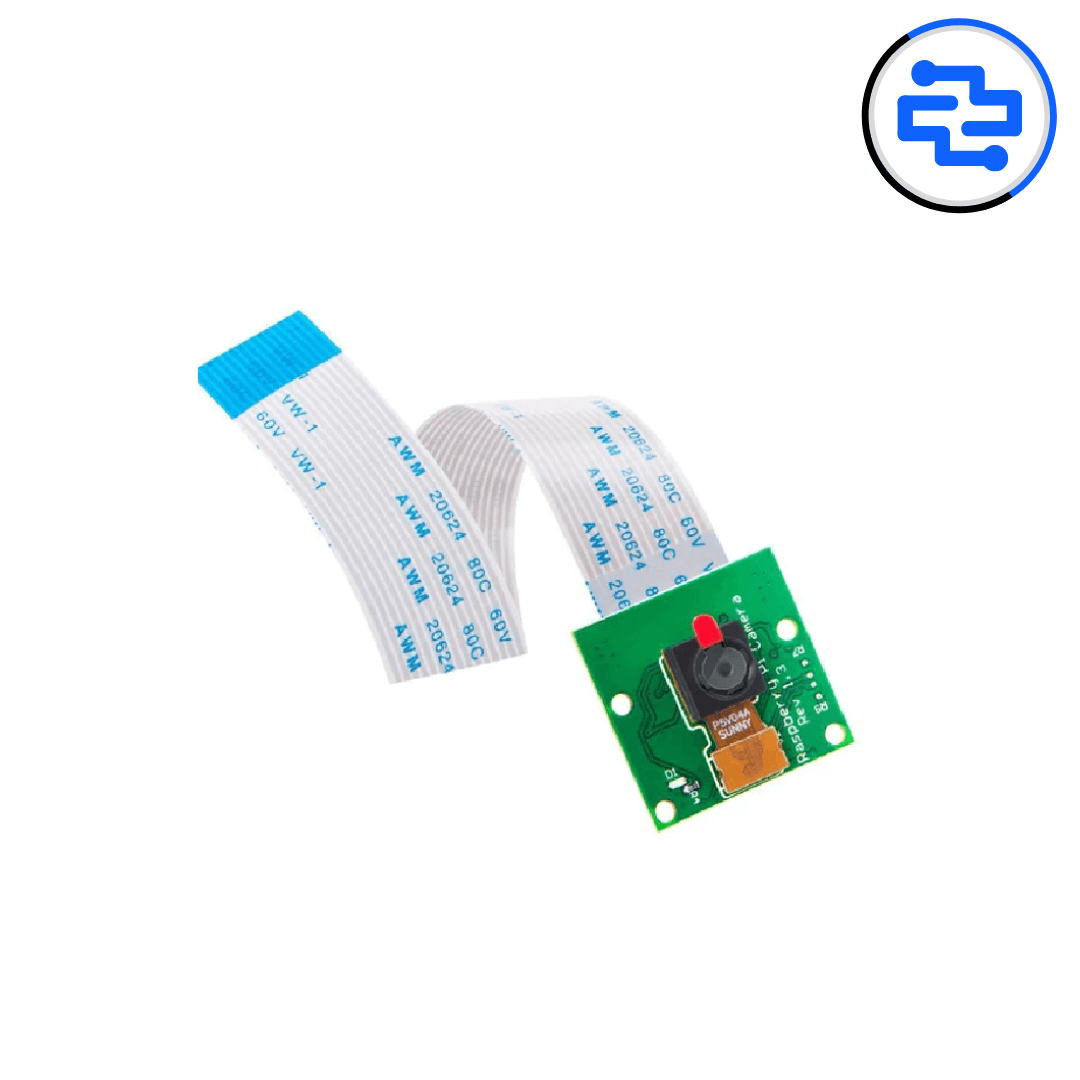

The 5 MP Raspberry Pi Camera Module is a compact, high-quality camera designed specifically for Raspberry Pi boards. Equipped with the OmniVision OV5647 image sensor, it delivers clear still images and smooth video capture, making it ideal for computer vision, surveillance, robotics, and IoT projects. Its lightweight design and direct CSI interface ensure fast data transfer and easy integration, while maintaining excellent image quality for both indoor and outdoor applications.
Core Camera Specifications
• Camera Sensor: OmniVision OV5647
• Resolution: 5 Megapixels
• Image Resolution: Up to 2592 × 1944 pixels
• Video Resolution: 1080p @ 30 fps, 720p @ 60 fps, 480p @ 90 fps
• Focus Type: Fixed focus
Electrical & Interface
• Interface Type: CSI (Camera Serial Interface)
• Compatible Boards: Raspberry Pi models with CSI port
• Power Supply: Provided via Raspberry Pi CSI connector
• Connection Cable: 15-pin ribbon cable
Performance Characteristics
• High-quality image capture with low latency
• Supports still image and video streaming
• Good low-light performance for its class
• Optimized for Raspberry Pi camera stack
Physical Characteristics
• Module Type: PCB-mounted camera board
• Sensor Size: 1/4 inch
• Lens: Fixed-focus lens
• Compact, lightweight design suitable for embedded systems
Compatibility
• Raspberry Pi Zero / Zero W
• Raspberry Pi 3 Model B / B+
• Raspberry Pi 4 Model B
• Raspberry Pi 5 (with CSI support)
• Raspberry Pi OS and compatible Linux distributions
Key Advantages
• Official Raspberry Pi–compatible camera solution
• Easy plug-and-play integration via CSI
• Supports high-resolution images and HD video
• Large community support and software examples
Technical Insights
• Uses the OV5647 CMOS sensor
• Requires enabling camera interface in Raspberry Pi settings
• Fixed focus optimized for mid-range distances
• Ideal for OpenCV and Python-based vision projects
Applications
• Raspberry Pi camera projects
• Computer vision and image processing
• Home surveillance systems
• Robotics and autonomous vehicles
• Time-lapse photography
• IoT and AI-based monitoring systems
Pro Tip
• Enable the camera using raspi-config before use
• Use proper lighting for best image quality
• Secure the ribbon cable to avoid intermittent connection
• Consider camera enclosures for outdoor use
Package Includes
• 1 × 5 MP Raspberry Pi Camera Module
• 1 × CSI ribbon cable
