The 74HC151 is 8-bit multiplexers that allow for the selection of one of eight binary input lines (I0 to I7) based on three select inputs (S0 to S2), with an enable input (E) that controls the output state. When the enable input (E) is HIGH, the output Y is forced LOW and output Y is forced HIGH. This functionality makes the 74HC151 ideal for data selection, routing, and signal control in digital systems. The device features clamp diodes on the inputs, which enable easy interfacing to voltages above VCC using current-limiting resistors, making it versatile and compatible with a wide range of voltage levels.
Features :
- Propagation Delay Time: 43 ns
- Supply Voltage: 2V to 6V
- Operating Temperature: -55°C to +125°C
- Maximum Clock Frequency: 28 MHz
Package Includes:

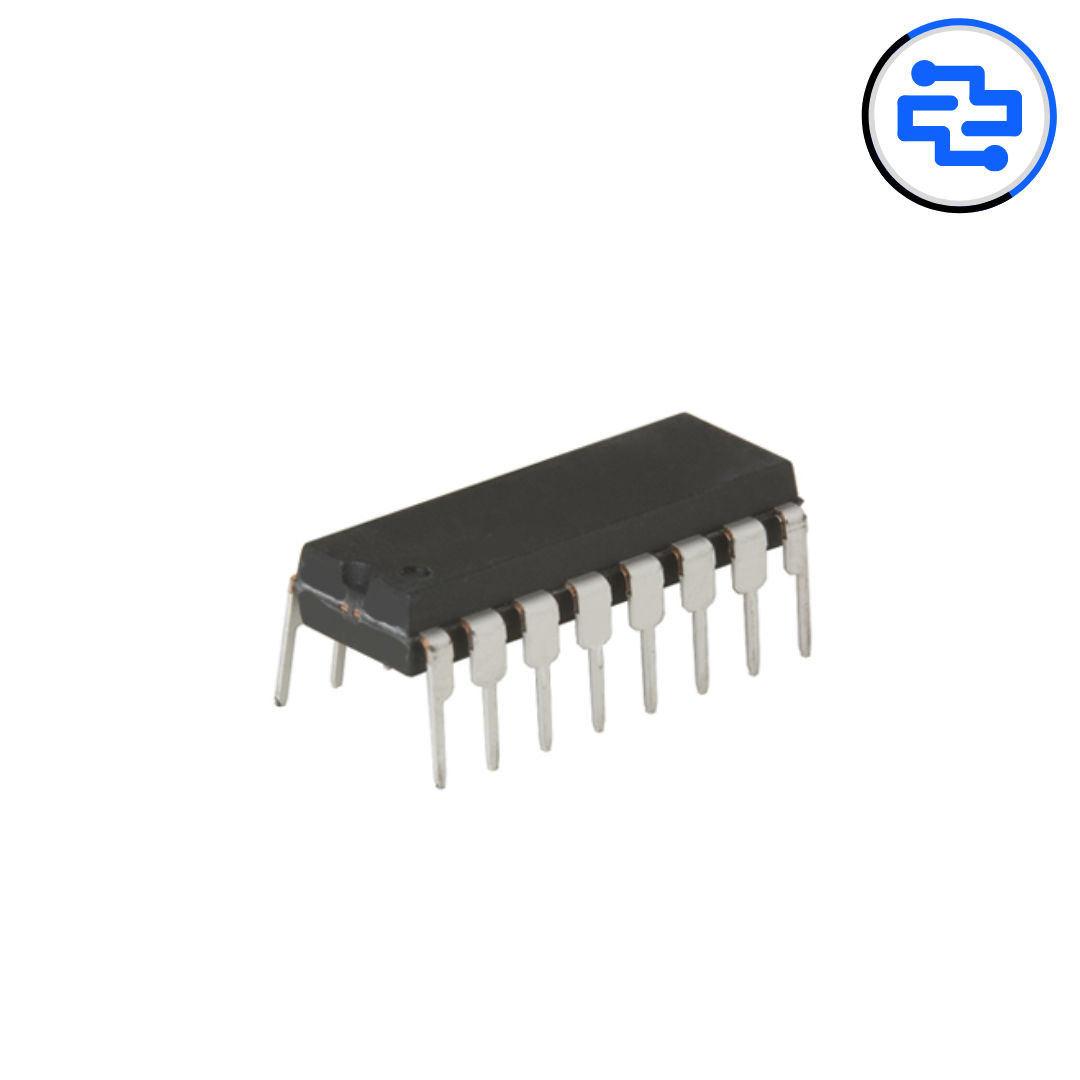

1 x 74HC151 8-Input Multiplexer
