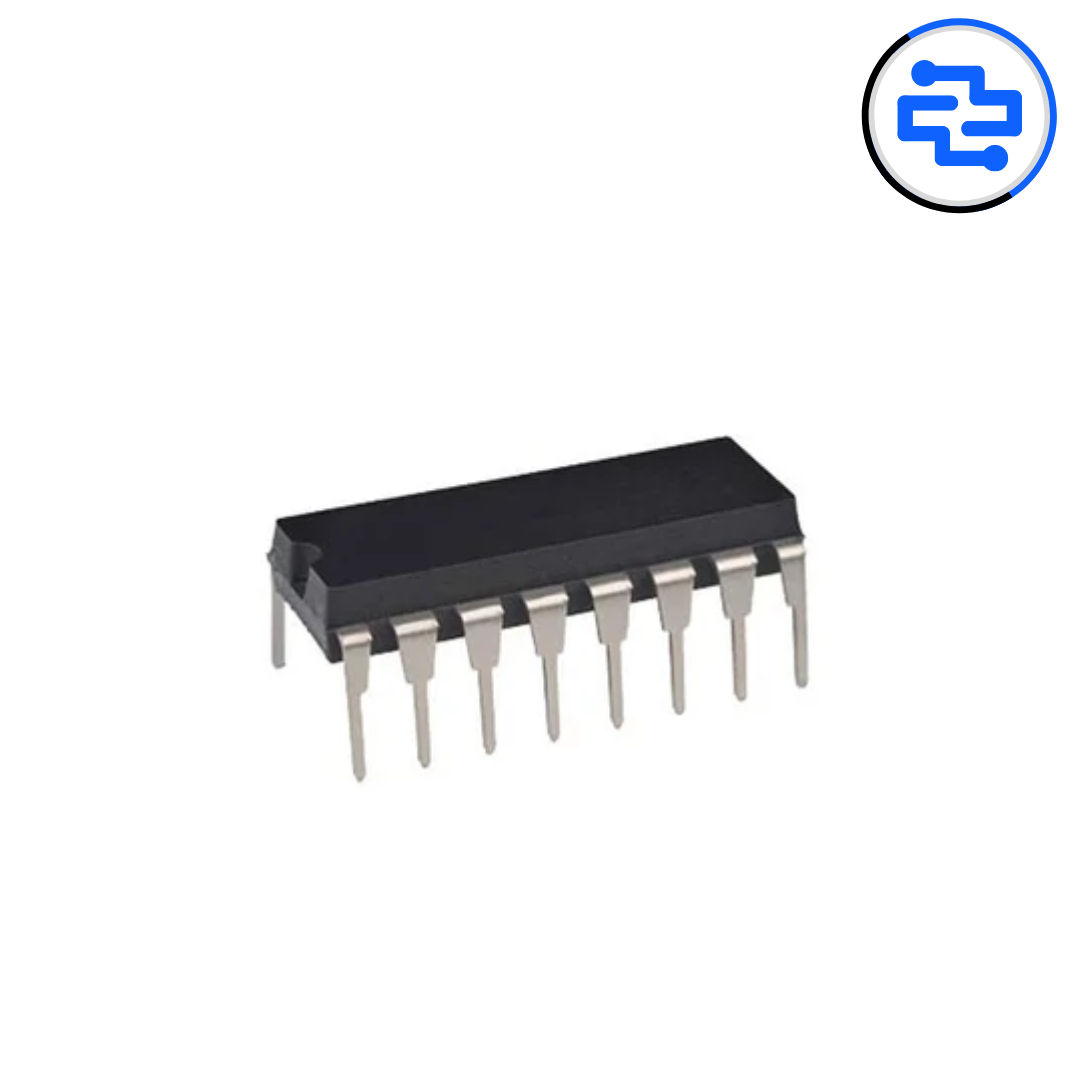

The 74HC32 is a Quad 2-input OR Gate IC from Nexperia, offering four independent OR gates with push-pull outputs. It operates within a 2.0V to 6.0V range and features low power consumption, fast switching (23 ns delay), and CMOS inputs/outputs. With a high-level output current of -5.2 mA and low-level output current of 5.2 mA, it drives digital circuits effectively. Packaged in a 14-pin DIP format, it is suitable for applications in harsh environments with a temperature range of -55°C to +125°C.
Features :
- Operating voltage range: 2.0V to 6.0V
- Propagation delay time: 23 ns
- High-level output current: -5.2 mA, low-level output current: 5.2 mA
- Low power consumption
- Wide operating temperature range: -55°C to +125°C
Package Includes:
1 x 74HC32 Quad 2-Input OR Gate IC
