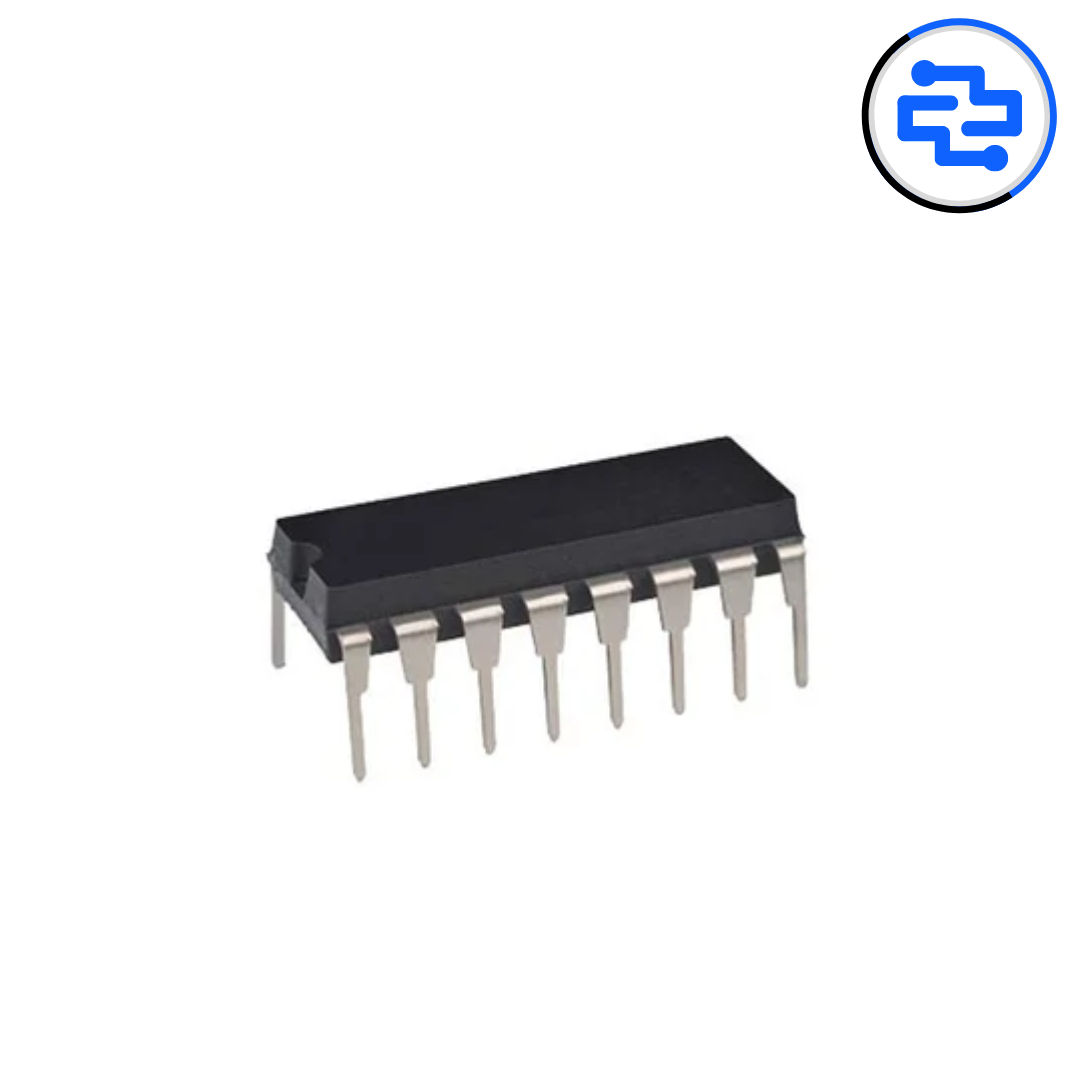

The 74LS20 Dual 4-input NAND is a dual 4-input NAND gate IC that contains two independent positive logic 4-input NAND gates. It is designed to provide high-speed and reliable logic operations in digital circuits. With TTL output levels, it interfaces easily with CMOS, NMOS, and TTL logic families. The 74LS20 is well-suited for applications where you need to perform logical AND operations, and it can drive TTL inputs, making it compatible with a wide range of digital components like microcontrollers and other TTL devices.
Features :
- Wide Operating Voltage Range: Suitable for a voltage supply of 4.75V to 5V.
- Temperature Range: Operates within an ambient temperature range of 0°C to 70°C.
- Low Power Consumption: Very low quiescent current of 11 µA
- Two Independent 4-Input NAND Gates
Package Includes:
1 x 74LS20 Dual 4-input NAND Gate IC
