The 74LS74 is a Dual D-type Positive Edge-triggered Flip-Flop integrated circuit designed for digital logic applications. This IC features two independent D-type flip-flops, each with a clock (CP), data (D), and output (Q). The flip-flops are triggered on the positive edge of the clock signal, ensuring precise synchronization in digital systems. The 74LS74 is commonly used in memory storage, data latching, and signal synchronization applications. Note:

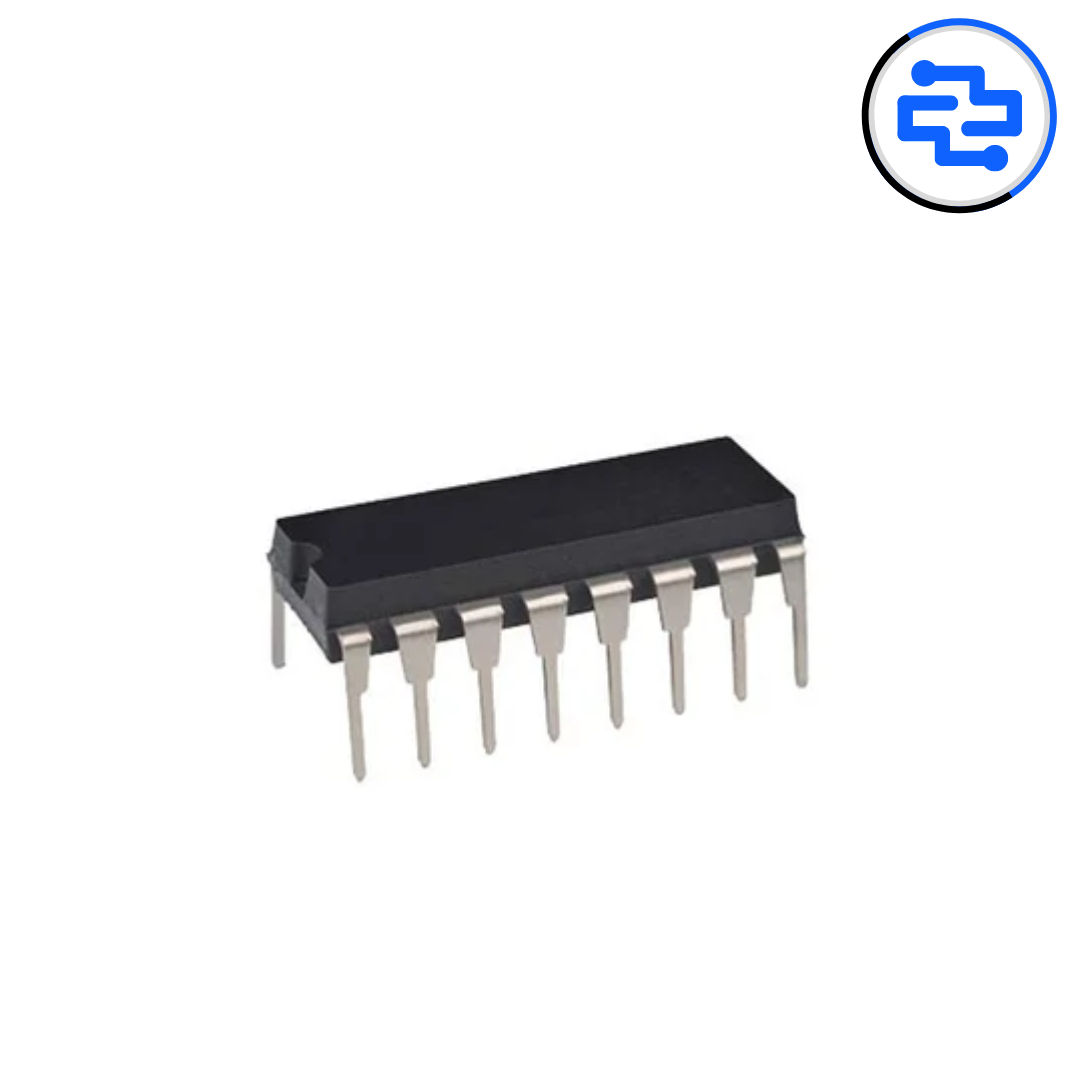

- Product Images are shown for illustrative purposes only and may differ from the actual product.
- For Technical Specifications about the IC go through the Datasheet in the Attachment section.
Features :
- Dual D-type Flip-Flops: Two independent flip-flops in one IC.
- Reset and Set Inputs: Allows manual control of output states.
- TTL-Compatible: Compatible with TTL logic systems.
- Fast Propagation Delay: 40 ns for quick signal response.
- Operating Voltage: 5V.
- Temperature Range: 0°C to 70°C
Package Includes:
1 x 74LS74 Dual D-type Positive Edge-triggered Flip-Flops IC (7474 IC) DIP-14 Package
