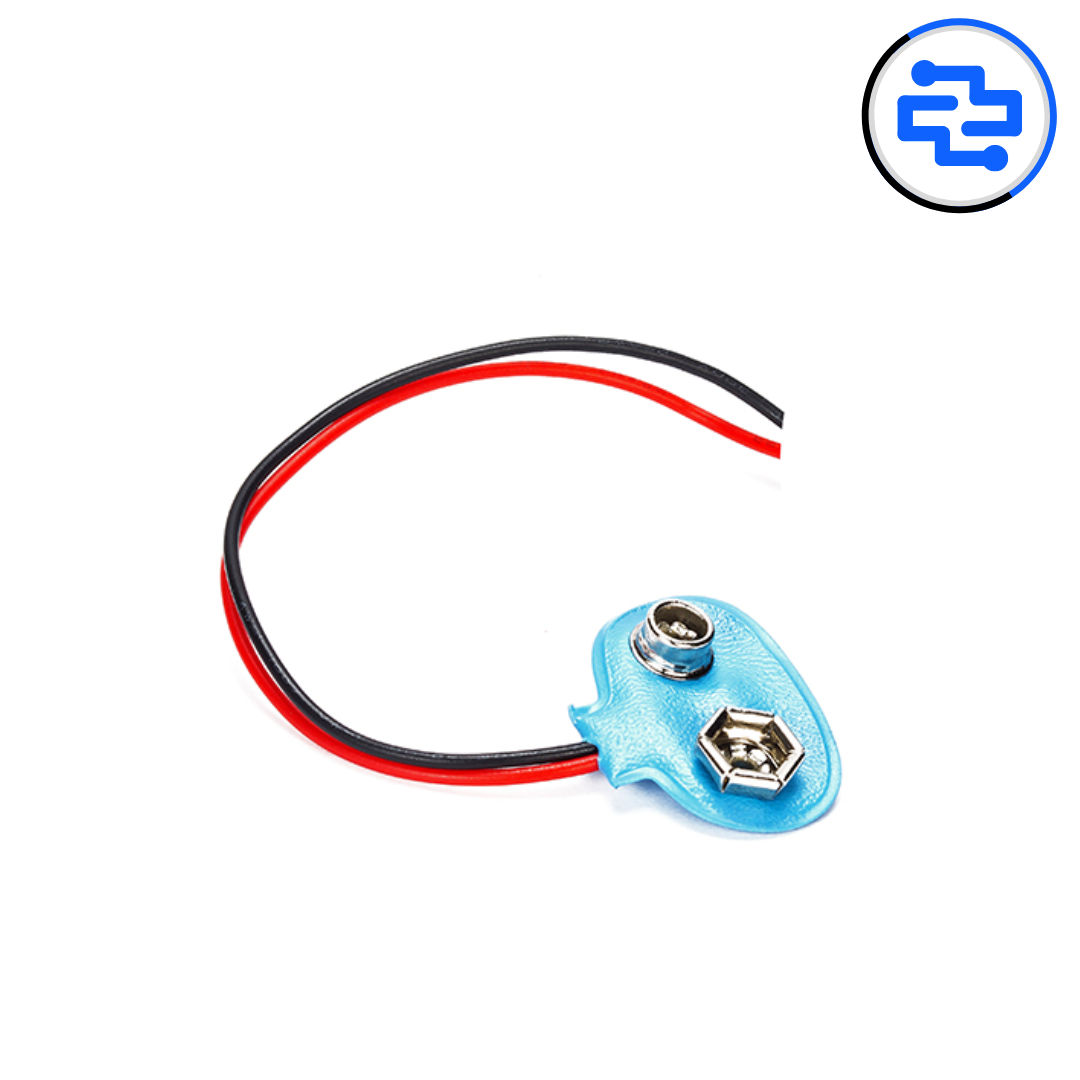

The 9V Battery Snap Connector is a simple and durable connector designed to provide a secure connection between a standard 9V battery and your electronic circuits. It features a classic snap-on clip for quick attachment and pre-soldered wire leads for easy integration, making it perfect for DIY electronics, Arduino projects, prototyping, and small battery-powered devices.
Technical Specifications
Core Specifications
Connector type: Standard 9V snap-on clip (male/female terminals)
Compatible battery: All standard 9V batteries (alkaline or rechargeable)
Wire length: Approximately 10–15 cm
Wire gauge: 26 AWG (approx.)
Polarity: Clearly marked positive (red) and negative (black) leads
Electrical & Physical
Durable plastic cap with nickel-plated metal contacts
Flexible stranded wire for easy soldering and bending
Compact and lightweight for portable projects
Dimensions approximately 25 mm × 18 mm (connector head only)
Environmental
Operating temperature range: –20 °C to +60 °C
Suitable for indoor and portable electronic applications
Why Choose the 9V Snap Connector
Quick and reliable connection to any standard 9V battery
Pre-attached wires save time in DIY and prototyping projects
Compact design fits easily in small enclosures and devices
Critical Uses
Arduino and breadboard-based circuits
DIY battery-powered gadgets and toys
Prototyping and testing low-voltage circuits
Replacement connector for 9V-powered devices
Pro Tips
Double-check polarity before connecting to your circuit
Avoid excessive bending of the wires near the connector for long life
Use heat-shrink tubing or electrical tape for added insulation if required
Package Includes
1 × 9V Battery Snap Connector
