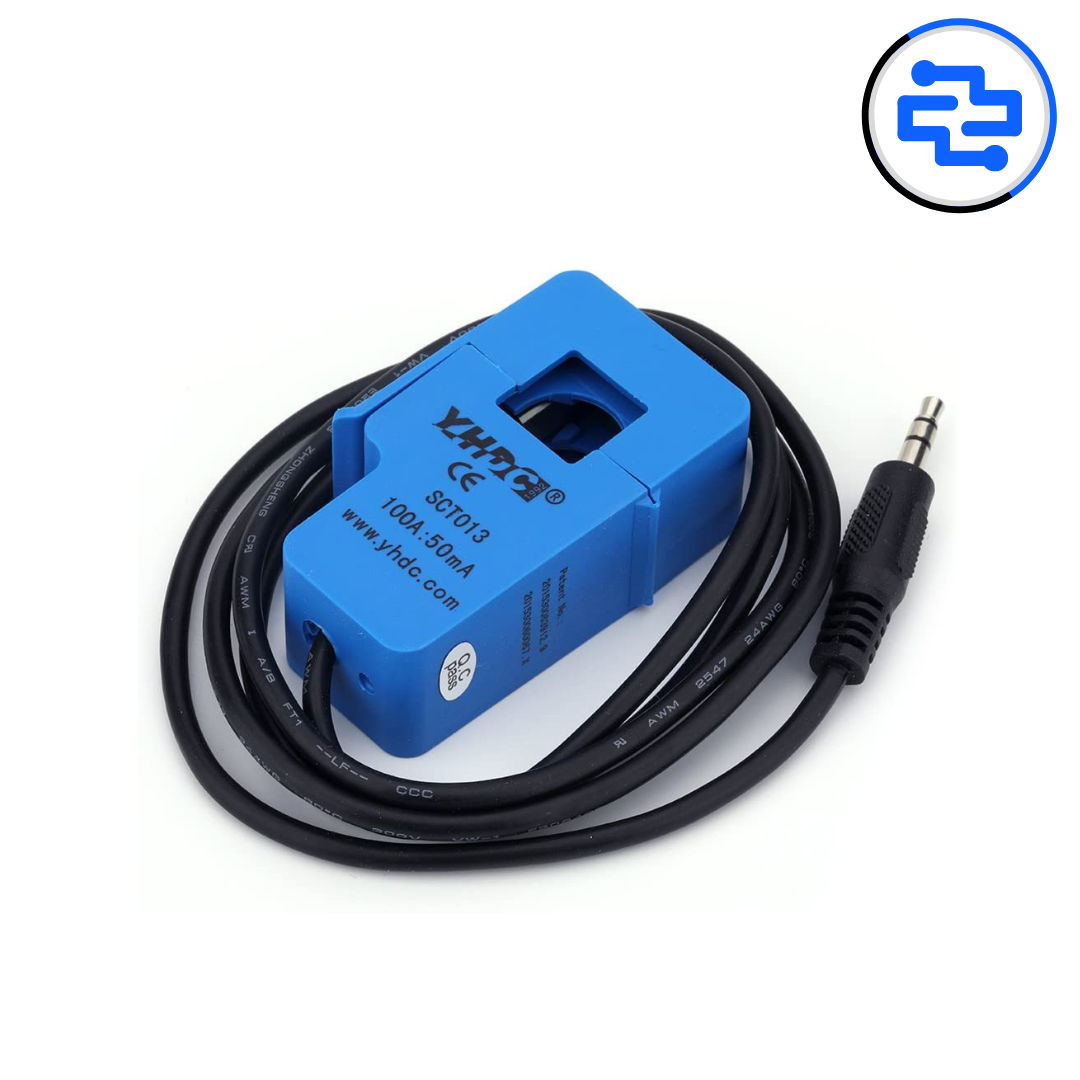

AC Current Clamp Sensor SCT-013-100 (100A)

The AC Current Clamp Sensor SCT-013-100 (100A) is a non-invasive split-core current transformer (CT) designed for safely measuring AC current up to 100A without disconnecting or cutting the electrical wiring. By simply clamping around a single live conductor, it provides an isolated output proportional to the measured current, making it ideal for energy monitoring, smart metering, power analysis, and IoT-based electrical monitoring systems. Compatible with Arduino, ESP32, STM32, Raspberry Pi (with external ADC if required), and other microcontroller platforms, the SCT-013-100 Current Clamp Sensor is available at Directronics and is ideal for students, hobbyists, makers, educators, and professional engineers. (Directronics)

Features:

• Non-Invasive AC Current Measurement

• Measures AC Current up to 100A

• Split-Core Clamp Design

• Galvanic Electrical Isolation

• No Need to Cut or Disconnect Wires

• Analog Output (Variant Dependent)

• Standard 3.5mm Audio Jack Connector

• High Accuracy and Good Linearity

• Compact and Lightweight Construction

• Safe and Easy Installation

• Compatible with Arduino, ESP32, STM32, Raspberry Pi, and Other Controllers

• Ideal for Energy Monitoring and Smart Metering Applications

Why Choose AC Current Clamp Sensor SCT-013-100 (100A)?

• Measures AC current safely without direct electrical contact

• Provides complete electrical isolation from the measured circuit

• Easy clip-on installation without modifying existing wiring

• Reliable performance for power monitoring applications

• Well supported by open-source libraries and energy monitoring platforms

• Suitable for beginners, students, hobbyists, and professionals

Applications:

• Energy Monitoring Systems

• Smart Meters

• Home Energy Management

• IoT Power Monitoring

• Solar Energy Monitoring

• Industrial Load Monitoring

• AC Motor Current Measurement

• Power Consumption Analysis

• Educational Electronics Projects

• Prototype Development

Technical Specifications:

• Product Type: Split-Core Current Transformer

• Model: SCT-013-100

• Measurement Type: AC Current Only

• Rated Current Range: 0–100A AC

• Sensor Type: Non-Invasive Current Transformer (CT)

• Output Type: Analog (Current or Voltage Output Depending on Variant)

• Connector: 3.5mm Audio Jack

• Opening Size: Approximately 13 × 13mm

• Frequency Range: 50Hz–150kHz

• Operating Temperature: -25°C to +70°C

• Cable Length: Approximately 1 Meter

• Electrical Isolation: Yes (Magnetic Coupling)

Package Includes:

• 1 × AC Current Clamp Sensor SCT-013-100 (100A)
