AD8232 ECG Sensor with ECG Cable and Electrodes

The AD8232 ECG Sensor with ECG Cable and Electrodes is a compact single-lead electrocardiogram (ECG) monitoring module designed to capture and process electrical signals generated by the human heart. Based on the AD8232 integrated ECG front-end, this module amplifies, filters, and outputs ECG signals that can be easily read by microcontrollers for waveform monitoring and data analysis applications. Available at Directronics, the AD8232 ECG Sensor with ECG Cable and Electrodes is ideal for students, hobbyists, makers, educators, and professional engineers working on Arduino, ESP32, Raspberry Pi, wearable electronics, and biomedical prototype projects.

Features:

• Based on AD8232 ECG Signal Conditioning IC

• Single Lead ECG Monitoring Capability

• Includes ECG Cable and Disposable Electrodes

• Integrated Signal Amplification and Filtering

• Provides Analog ECG Output Signal

• Supports Two or Three Electrode Configurations

• Built-In Leads-Off Detection

• Low Power Consumption

• Compact and Lightweight Sensor Design

• Easy Interface with Microcontrollers

• Compatible with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and Other Development Boards

• Suitable for ECG Signal Acquisition and Educational Projects

Why Choose AD8232 ECG Sensor with ECG Cable and Electrodes?

• Provides an easy way to capture ECG signals for electronic projects

• Integrated filtering improves signal quality

• Simple analog output interface for microcontroller systems

• Compact solution for wearable and portable monitoring projects

• Supports learning and experimentation with bioelectric signals

• Suitable for beginners, students, and professional developers

Applications:

• ECG Monitoring Projects

• Heart Rate Monitoring Systems

• Wearable Health Monitoring Devices

• Arduino Biomedical Projects

• ESP32 IoT Health Monitoring Applications

• Fitness Monitoring Devices

• Biomedical Signal Processing Experiments

• Educational Electronics Projects

• Data Logging Systems

• Research and Prototype Development

Technical Specifications:

• Product Type: ECG Sensor Module

• Sensor IC: AD8232

• Measurement Type: Single Lead ECG

• Operating Voltage: 2.0V–3.5V DC

• Recommended Supply Voltage: 3.3V DC

• Signal Output: Analog ECG Signal

• Communication Interface: Analog Output

• Electrode Configuration: 2 or 3 Electrode Support

• Input Pins: RA, LA, RL

• Output Pins: OUTPUT, LO+, LO-, SDN, GND, 3.3V

• Gain: Approximately 100V/V (Typical)

• Supply Current: Approximately 170µA (Typical)

• ECG Cable Connector: 3.5mm Jack (Model Dependent)

• Operating Temperature: -40°C to +85°C (Typical)

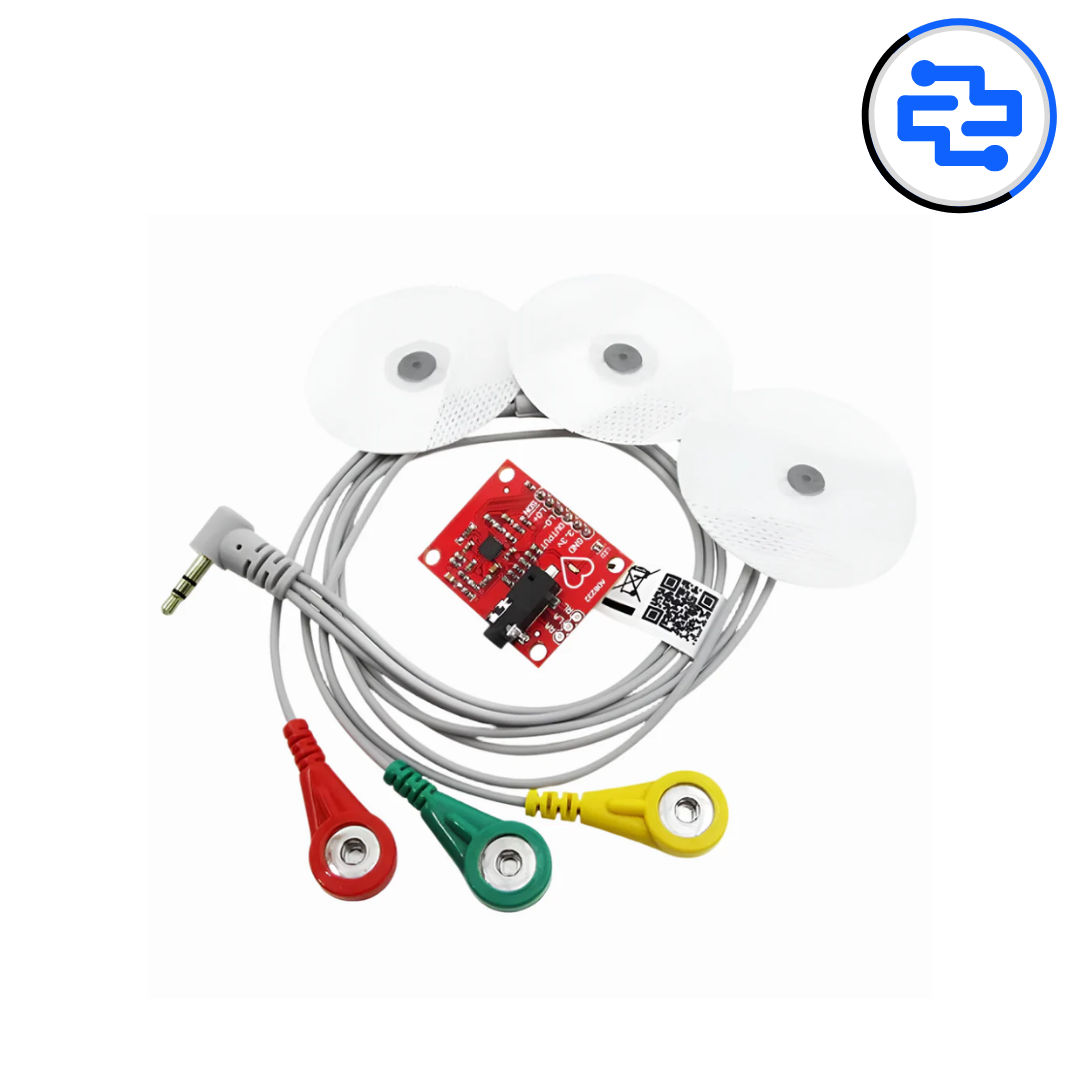

Package Includes:

• 1 × AD8232 ECG Sensor Module

• 1 × ECG Cable

• 3 × Disposable ECG Electrodes
