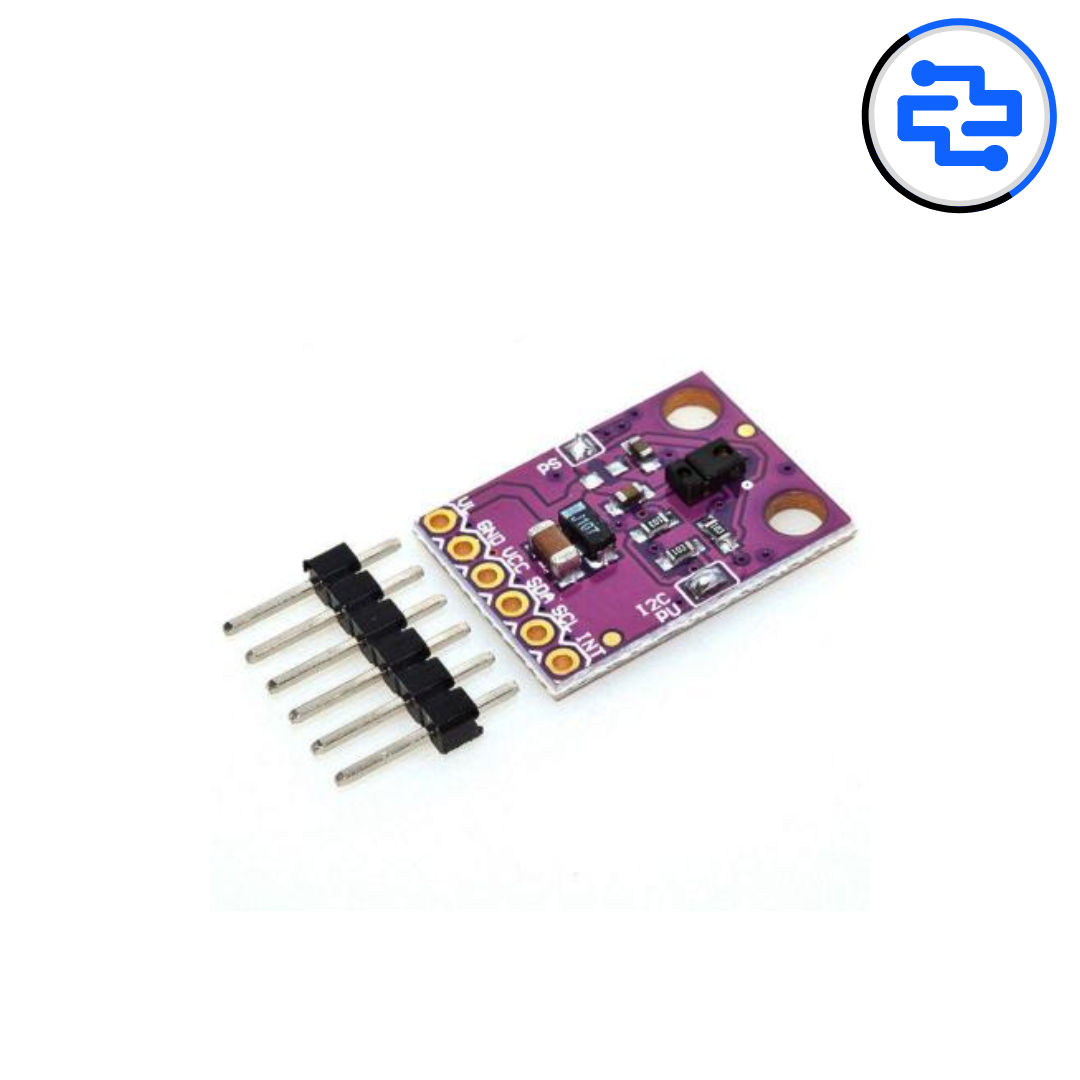

The APDS9960 RGB Gesture Sensor Detection Module is a versatile digital sensor capable of detecting gestures, ambient light, RGB color, and proximity. It integrates multiple sensing functions into a single compact IC, making it ideal for touchless user interfaces, smart devices, wearables, and IoT applications. With an I²C interface and onboard IR LED, the APDS9960 enables reliable gesture recognition and accurate color sensing in embedded systems.
Core Sensor Specifications
• Sensor Type: Gesture, RGB color, proximity, and ambient light sensor
• Sensor IC: APDS9960
• Detection Functions: Gesture (up/down/left/right), RGB color, proximity, ambient light
• Sensing Technology: IR + photodiode array
Electrical & Interface
• Operating Voltage: 2.4 V – 3.6 V
• Logic Level: 3.3 V
• Communication Interface: I²C
• I²C Address: 0x39
• Interface Pins: VCC, GND, SDA, SCL, INT
• IR Illumination: Integrated IR LED
Performance Characteristics
• Accurate short-range gesture detection
• High-resolution RGB color measurement
• Reliable proximity sensing
• Fast response suitable for real-time interaction
Physical Characteristics
• Module Type: PCB-mounted sensor module
• Sensor Package: Compact integrated IC
• Small form factor for embedded designs
• Optimized for front-facing gesture detection
Compatibility
• Arduino Uno / Nano / Mega
• ESP8266 / ESP32
• Raspberry Pi
• STM32 and other I²C-enabled MCUs
• IoT and smart interface systems
Key Advantages
• Multiple sensing functions in one module
• Touchless gesture-based control
• Low power consumption
• Well-supported libraries and documentation
Technical Insights
• Gesture detection works best within short distance range
• Ambient light affects color accuracy if not calibrated
• Requires proper timing configuration for gesture engine
• Interrupt pin helps reduce MCU polling
Applications
• Gesture-controlled switches and appliances
• Touchless user interfaces
• Smart lighting and displays
• Wearables and consumer electronics
• IoT and automation projects
Pro Tip
• Use proper enclosure window for IR transparency
• Calibrate color sensing under target lighting
• Enable interrupts for power-efficient operation
• Keep sensor facing gesture direction clearly
Package Includes
• 1 × APDS9960 RGB Gesture Sensor Detection Module
