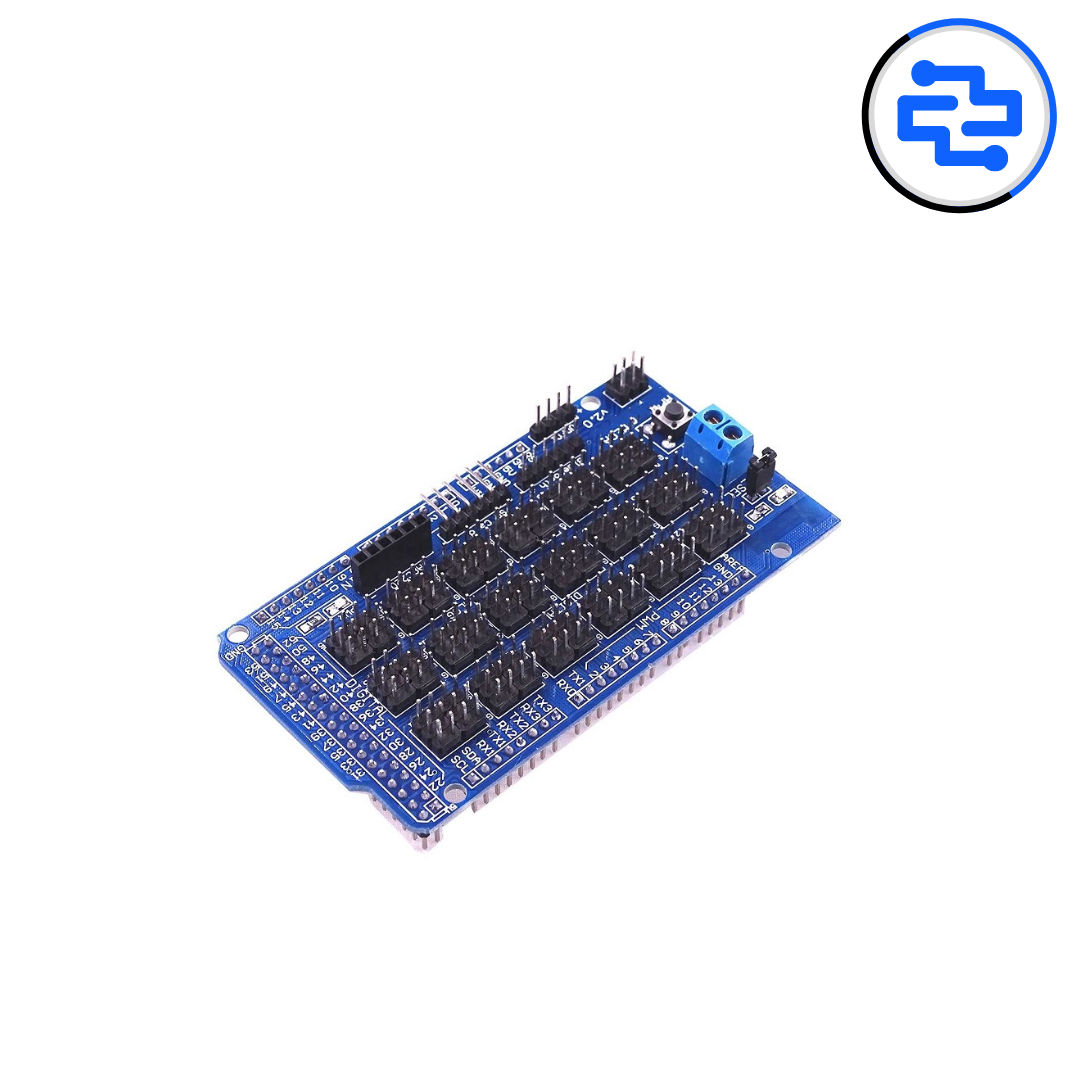

The Arduino Mega 2560 R3 Sensor Shield V2.0 is an expansion board designed to simplify the connection of sensors, servos, relays, and communication modules with the Arduino Mega 2560. It breaks out all Mega I/O pins into clearly labeled 3-pin headers (Signal, VCC, GND), enabling fast prototyping, clean wiring, and reliable connections. This shield is ideal for robotics, automation, IoT systems, and educational projects that require multiple peripherals.
Core Shield Specifications
• Shield Type: Sensor expansion shield
• Compatible Board: Arduino Mega 2560 R3
• Pin Breakout: Digital, Analog, PWM, Serial ports
• Header Format: 3-pin (S, VCC, GND)
Electrical & Interface
• Operating Voltage: 5 V (from Arduino Mega)
• I/O Logic Level: 5 V TTL
• Power Distribution: Common VCC and GND rails
• Communication Support: UART, I²C, SPI via headers
• Servo Support: Dedicated power and signal routing
Performance Characteristics
• Supports simultaneous connection of multiple sensors and modules
• Clean and organized wiring reduces connection errors
• Reliable signal routing for stable operation
• Suitable for complex projects with high I/O requirements
Physical Characteristics
• Form Factor: Stackable shield for Arduino Mega
• PCB Type: Through-hole headers with silkscreen labels
• Mounting: Direct plug-on to Mega 2560 R3
• Durable and reusable design
Compatibility
• Arduino Mega 2560 R3
• Servo motors and motor drivers
• Sensors (ultrasonic, IR, temperature, motion, etc.)
• Communication modules (Bluetooth, RF, GSM, GPS)
Key Advantages
• Eliminates messy jumper wiring
• Saves development and debugging time
• Easy sensor replacement and expansion
• Ideal for robotics and multi-sensor systems
Technical Insights
• Power for high-current devices should be supplied externally
• Shares Arduino Mega pin mapping directly
• Some versions include external power input for servos
• Not compatible with Arduino Uno or Nano
Applications
• Robotics control systems
• Home and industrial automation
• IoT prototyping platforms
• Educational electronics labs
• Multi-sensor data acquisition projects
Pro Tip
• Use an external power supply for servos and relays
• Label connected sensors to speed up troubleshooting
• Check pin conflicts when using multiple communication modules
Package Includes
• 1 × Arduino Mega 2560 R3 Sensor Shield V2.0
