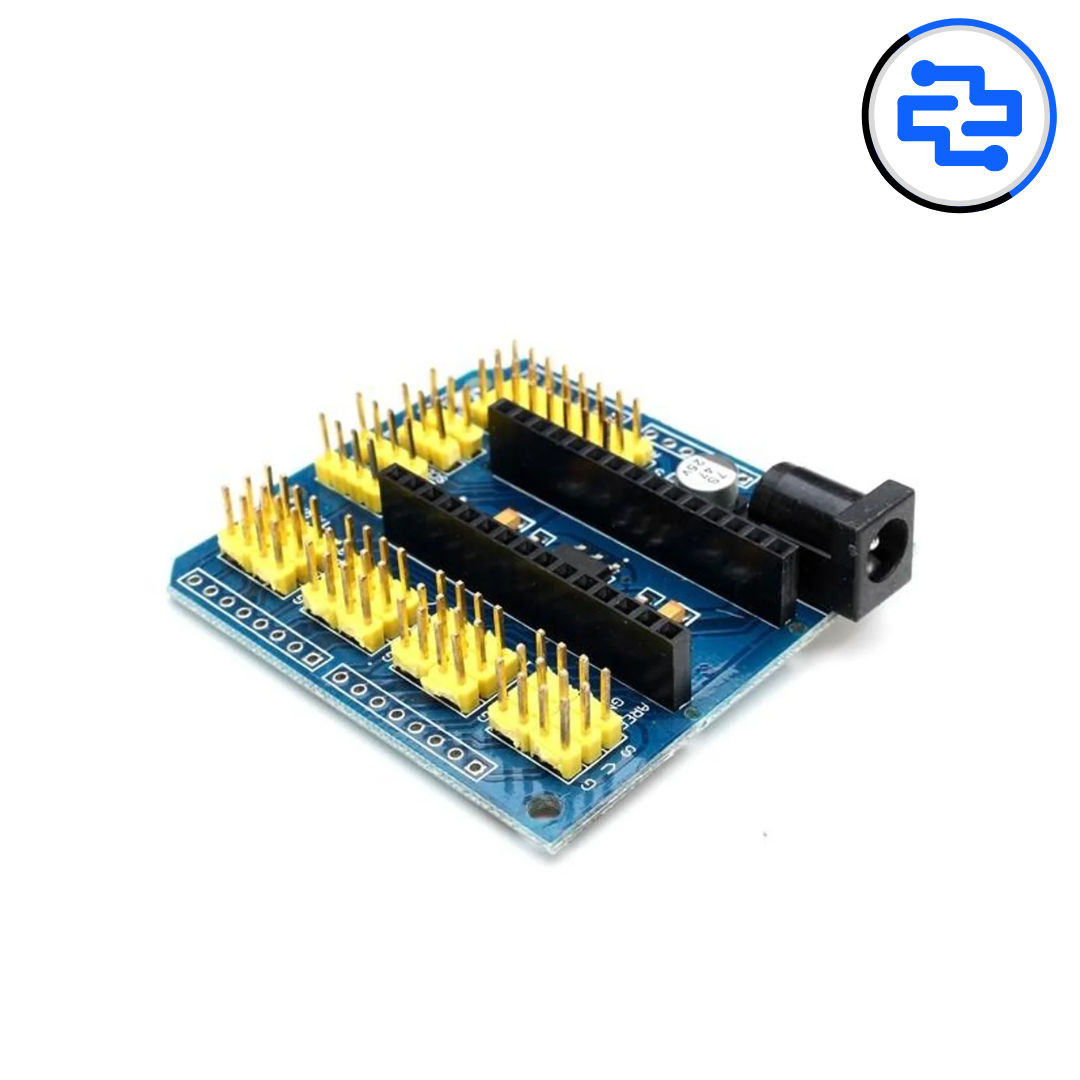

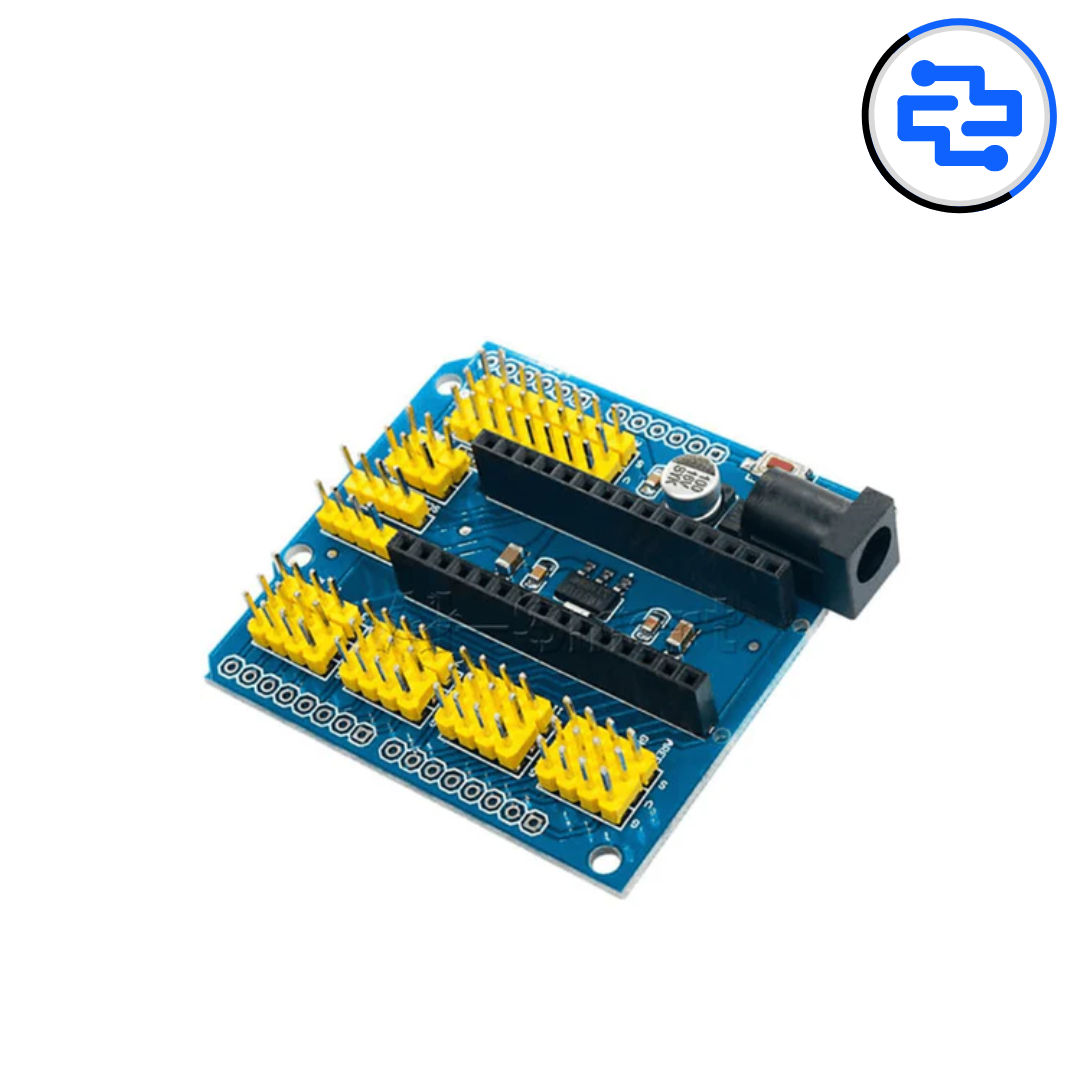

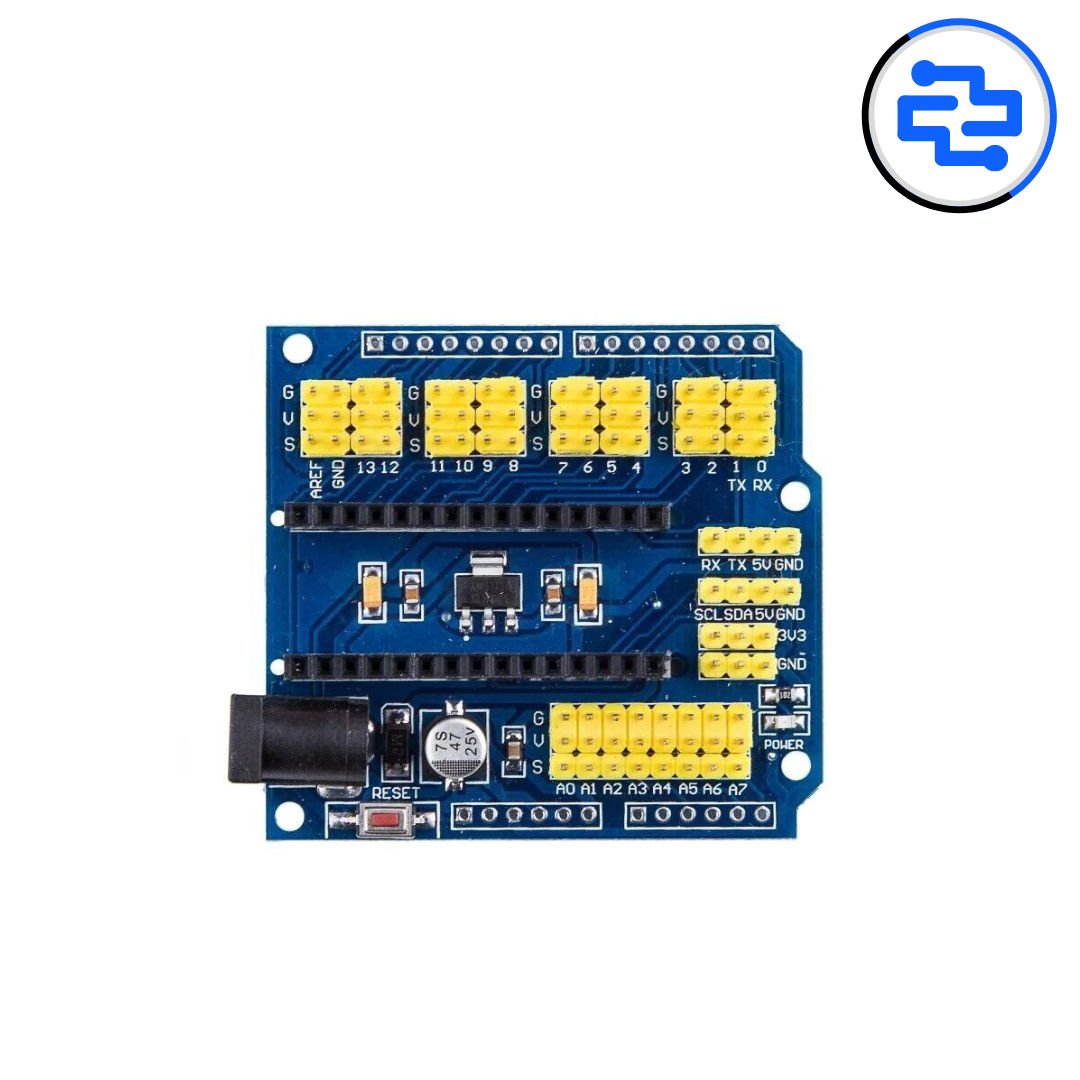

The Arduino Nano Breakout Board is a convenient expansion board designed to simplify connections and prototyping with the Arduino Nano. It breaks out all Nano pins into clearly labeled 3-pin headers (Signal, VCC, GND), making it easy to connect sensors, modules, and actuators without messy wiring. This board is ideal for rapid prototyping, education, robotics, and embedded development where clean and organized connections are required.
Core Board Overview
• Board Type: Breakout / expansion board
• Compatible Controller: Arduino Nano
• Pin Access: All Nano GPIO, power, and communication pins
• Purpose: Easy sensor and module interfacing
Electrical & Interface
• Operating Voltage: Depends on Arduino Nano (5 V / 3.3 V)
• Pin Layout: 3-pin headers (GND, VCC, Signal)
• Power Input: DC barrel jack (module dependent)
• Onboard Regulation: Power distribution support
• Reset Button: Onboard reset switch
Performance Characteristics
• Clean and organized wiring
• Reduces chances of incorrect connections
• Improves reliability during prototyping
• Suitable for repeated plug-and-play usage
Physical Characteristics
• Board Type: Arduino Nano shield-style breakout
• Mounting Holes: Provided for secure installation
• Clearly labeled pin names
• Compact and durable PCB design
Compatibility
• Arduino Nano V3.0
• Sensors and modules with 3-pin interface
• Servo motors and relay modules
• Robotics and automation systems
• Educational electronics kits
Key Advantages
• Easy access to all Nano pins
• Sensor-friendly GVS pin layout
• Reduces breadboard dependency
• Ideal for beginners and professionals
Technical Insights
• Does not include Arduino Nano (unless specified)
• Power handling depends on onboard components
• Check voltage jumper settings before powering sensors
• Ensure correct orientation when inserting Nano
Applications
• Rapid prototyping
• Robotics control systems
• Sensor hub development
• Educational and training projects
• Embedded system testing
Pro Tip
• Verify voltage selection before connecting sensors
• Use proper mounting to avoid stress on Nano pins
• Label connected modules for easier debugging
• Ideal companion for Nano-based robots
Package Includes
• 1 × Arduino Nano Breakout Board
