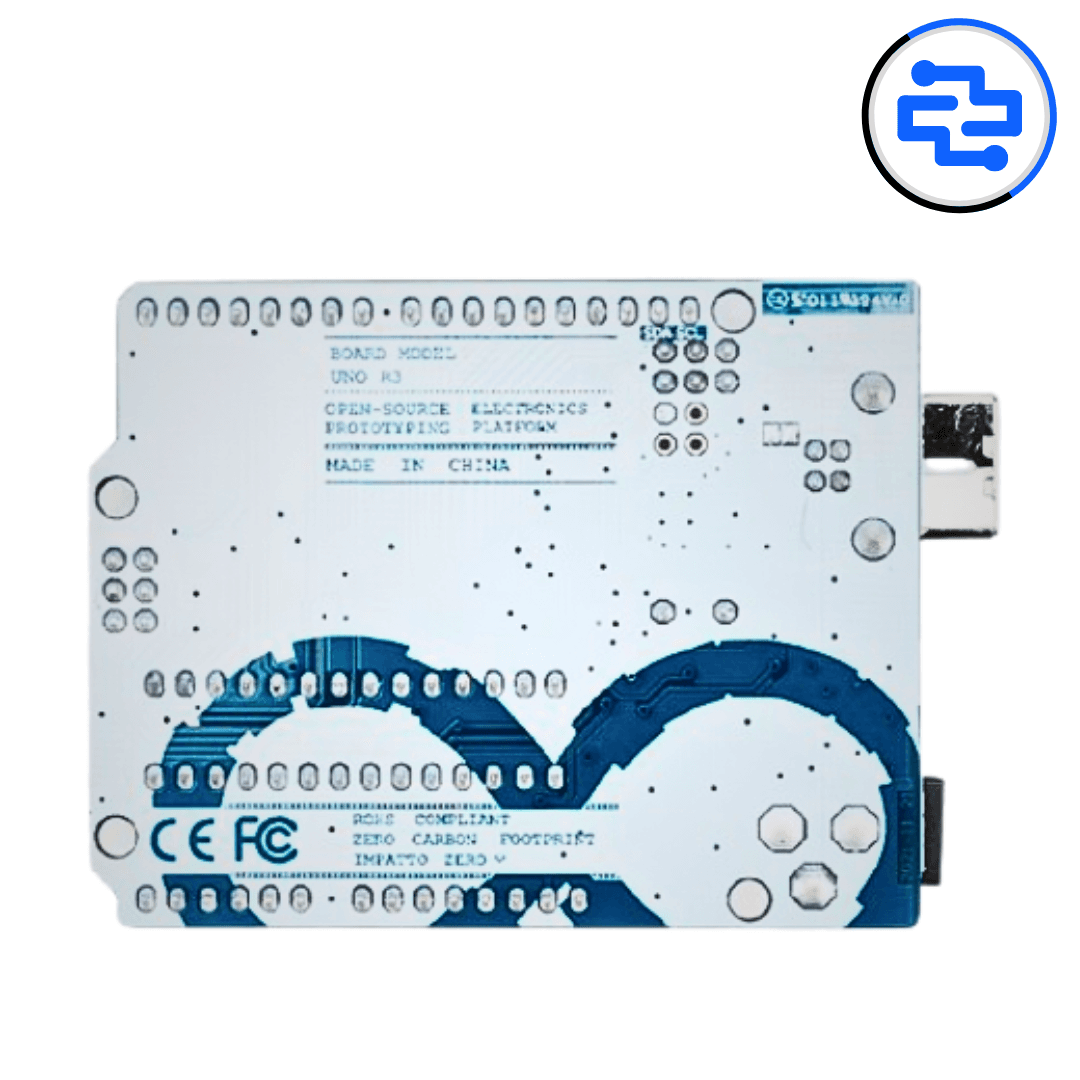

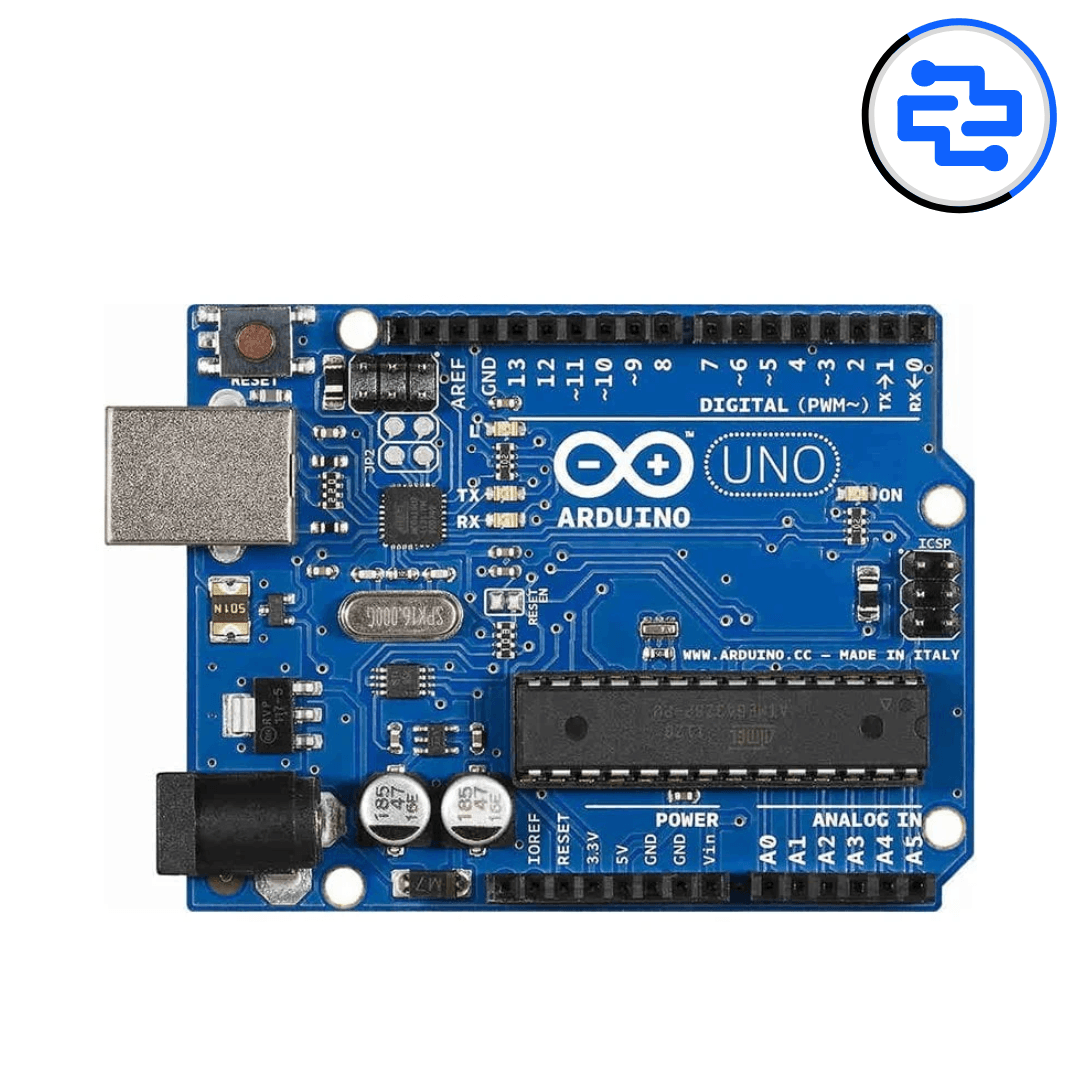

The Arduino Uno R3 Development Board is one of the most popular and beginner-friendly microcontroller boards used for electronics prototyping, embedded development, IoT, and educational projects. Based on the ATmega328P microcontroller, it offers a perfect balance of simplicity, performance, and expandability. With extensive library support and a huge global community, the Arduino Uno R3 is ideal for learning electronics as well as building real-world applications.
Core Board Specifications
• Microcontroller: ATmega328P
• Operating Voltage: 5 V
• Development Platform: Arduino ecosystem
• USB Interface: For programming and power
Electrical & Interface
• Input Voltage (Recommended): 7–12 V
• Digital I/O Pins: 14 (6 PWM capable)
• Analog Input Pins: 6
• Clock Speed: 16 MHz
• Communication Interfaces: UART, I²C, SPI
• Programming Method: USB bootloader
Performance Characteristics
• Stable and reliable operation
• Real-time control for sensors and actuators
• Fast boot and program execution
• Suitable for continuous operation
Physical Characteristics
• Board Type: Microcontroller development board
• USB Connector: USB Type-B
• Power Jack: DC barrel jack
• Standard Arduino Uno form factor
Compatibility
• Arduino IDE
• Wide range of shields and modules
• Sensors, motors, displays, and communication modules
• Windows, macOS, and Linux systems
Key Advantages
• Extremely beginner-friendly
• Massive community and documentation
• Large library ecosystem
• Ideal for rapid prototyping
Technical Insights
• Uses ATmega16U2 as USB-to-serial converter
• Flash memory includes bootloader
• GPIO pins operate at 5 V logic
• External shields expand functionality easily
Applications
• Learning electronics and programming
• IoT and automation projects
• Robotics and motor control
• Sensor data acquisition
• DIY and educational projects
Pro Tip
• Use official Arduino drivers for best stability
• Power motors separately to avoid resets
• Start with example sketches to learn faster
• Label pin usage in complex projects
Package Includes
• 1 × Arduino Uno R3 Development Board
