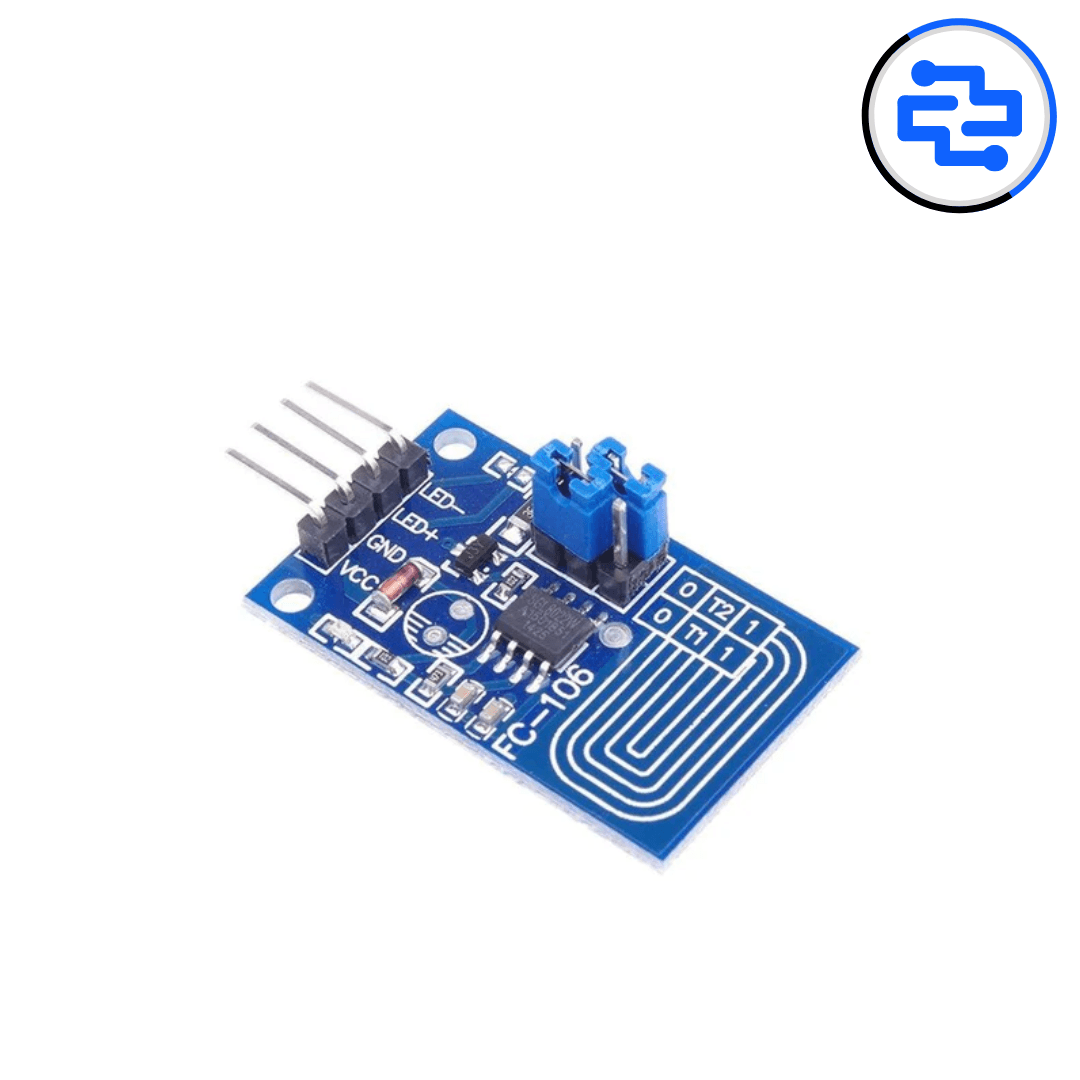

The Capacitive Touch Dimmer Module is a touch-based control module designed to detect finger touch and provide dimming or level-based control output. It uses capacitive sensing technology to replace traditional mechanical switches, offering smooth, silent, and long-life operation. This module is commonly used in touch lamps, LED dimmers, control panels, and DIY electronics projects where touch-controlled intensity adjustment is required.
Core Module Specifications
• Module Type: Capacitive touch dimmer / touch controller
• Sensing Method: Capacitive touch sensing
• Touch Channels: Single touch input
• Control Function: Touch-based dimming or level control
Electrical & Interface
• Operating Voltage: 3.3 V – 5 V DC
• Output Type: PWM / analog-like control signal (module dependent)
• Interface Pins: VCC, GND, OUT / LED+ / LED− (variant dependent)
• Sensitivity Adjustment: Onboard potentiometer / jumper (if provided)
• Indicator: Onboard LED for touch status
Performance Characteristics
• Smooth and responsive touch detection
• Stable dimming control
• No mechanical wear or noise
• Works through thin plastic or acrylic panels
Physical Characteristics
• Module Type: PCB-mounted touch control board
• Touch Area: Printed capacitive touch pad
• Compact and lightweight design
• Mounting Holes: Provided for fixed installation
Compatibility
• Arduino Uno / Nano / Mega
• ESP8266 / ESP32
• LED driver circuits
• PWM-controlled loads
• Touch-based lighting systems
Key Advantages
• Modern touch interface
• Long lifespan compared to mechanical switches
• Simple wiring and integration
• Ideal for aesthetic and sealed designs
Technical Insights
• Sensitivity affected by enclosure thickness
• Requires stable power supply for noise-free operation
• Not suitable for direct high-power load driving
• Output may require external driver for LEDs or loads
Applications
• Touch-controlled LED dimmers
• Smart lamps and lighting panels
• Home automation touch switches
• Decorative and designer electronics
• Educational and DIY projects
Pro Tip
• Test sensitivity after enclosure installation
• Use external MOSFET or driver for high-power LEDs
• Avoid placing near high-noise power circuits
• Ensure proper grounding for stable touch response
Package Includes
• 1 × Capacitive Touch Dimmer Module
