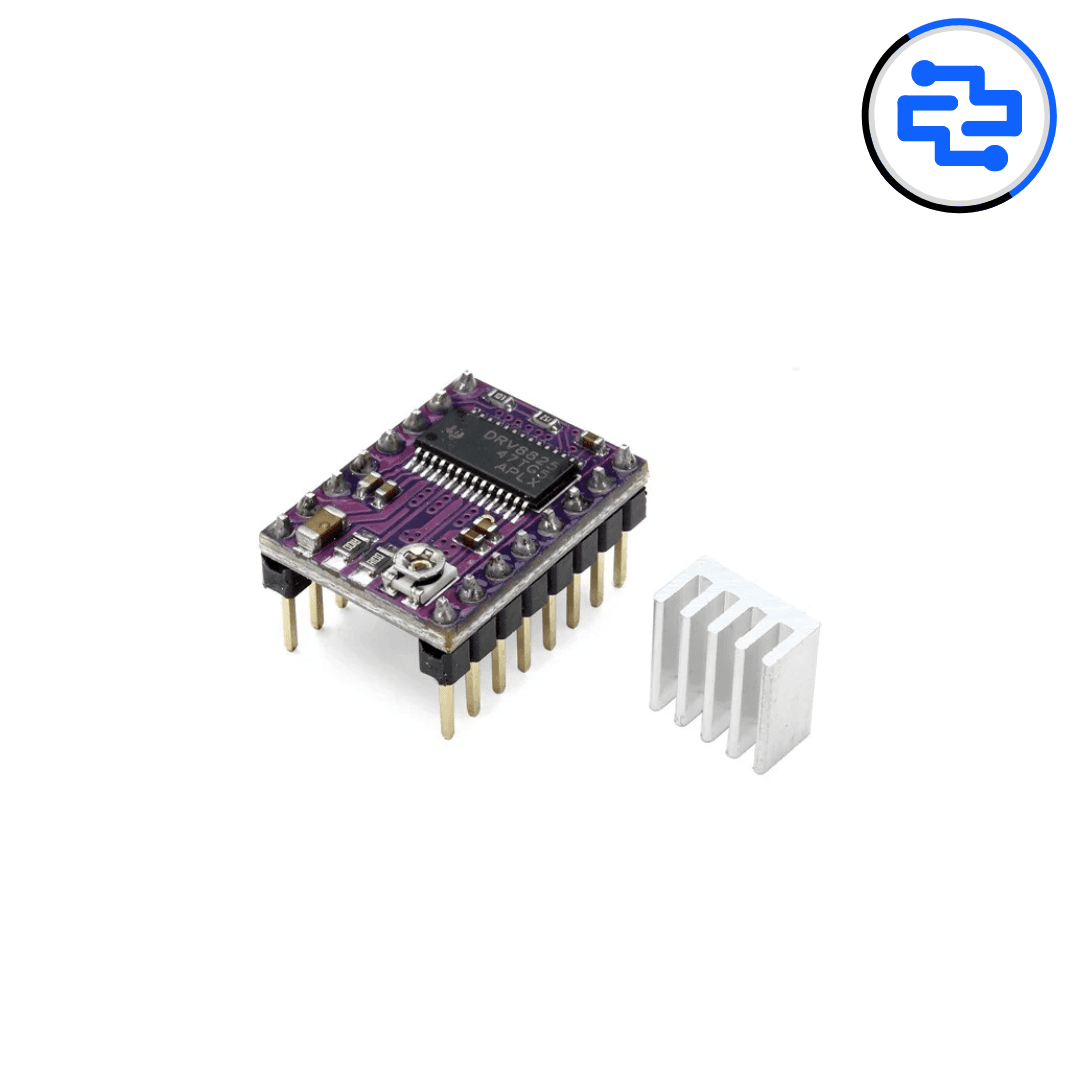

The DRV8825 Stepper Motor Driver is a high-performance microstepping driver designed to control bipolar stepper motors with improved torque, smoother motion, and higher voltage support compared to basic drivers. It is widely used in 3D printers, CNC machines, robotics, and precision motion systems. With adjustable current limiting and advanced protection features, the DRV8825 offers reliable and efficient motor control for demanding applications.
Core Driver Specifications
• Driver IC: DRV8825
• Motor Type: Bipolar stepper motor
• Control Method: Step / Direction interface
• Microstepping: Up to 1/32 step resolution
Electrical & Interface
• Motor Supply Voltage (VMOT): 8.2 V – 45 V
• Logic Voltage: 3.3 V / 5 V compatible
• Max Output Current: Up to 2.2 A per phase (with cooling)
• Control Pins: STEP, DIR, EN
• Microstep Pins: M0, M1, M2
• Protection: Overcurrent, overtemperature, undervoltage
Performance Characteristics
• Smooth and precise microstepping motion
• Higher voltage support for better high-speed torque
• Stable operation with adjustable current control
• Reduced vibration and motor noise
Physical Characteristics
• Module Type: Plug-in stepper driver module
• Form Factor: Pololu-compatible footprint
• Onboard Component: Adjustable current limit potentiometer
• Requires heatsink and airflow at higher currents
Compatibility
• NEMA 17 / NEMA 23 stepper motors
• Arduino Uno / Mega / Nano
• ESP8266 / ESP32
• CNC and 3D printer controller boards (RAMPS, CNC Shield)
Key Advantages
• Higher voltage range than A4988
• Finer microstepping for smoother motion
• Strong protection features
• Widely supported in motion-control systems
Technical Insights
• Current limit must be set before use
• Microstepping reduces vibration but also holding torque
• External cooling recommended above 1.5 A
• Proper motor wiring prevents driver damage
Applications
• 3D printers (X, Y, Z axes)
• CNC routers and engravers
• Robotics and automation
• Camera sliders and motion rigs
• Precision positioning systems
Pro Tip
• Always set current limit using a multimeter
• Use proper heatsink and airflow
• Match microstepping settings in firmware
• Never connect or disconnect motors while powered
Package Includes
• 1 × DRV8825 Stepper Motor Driver Module
