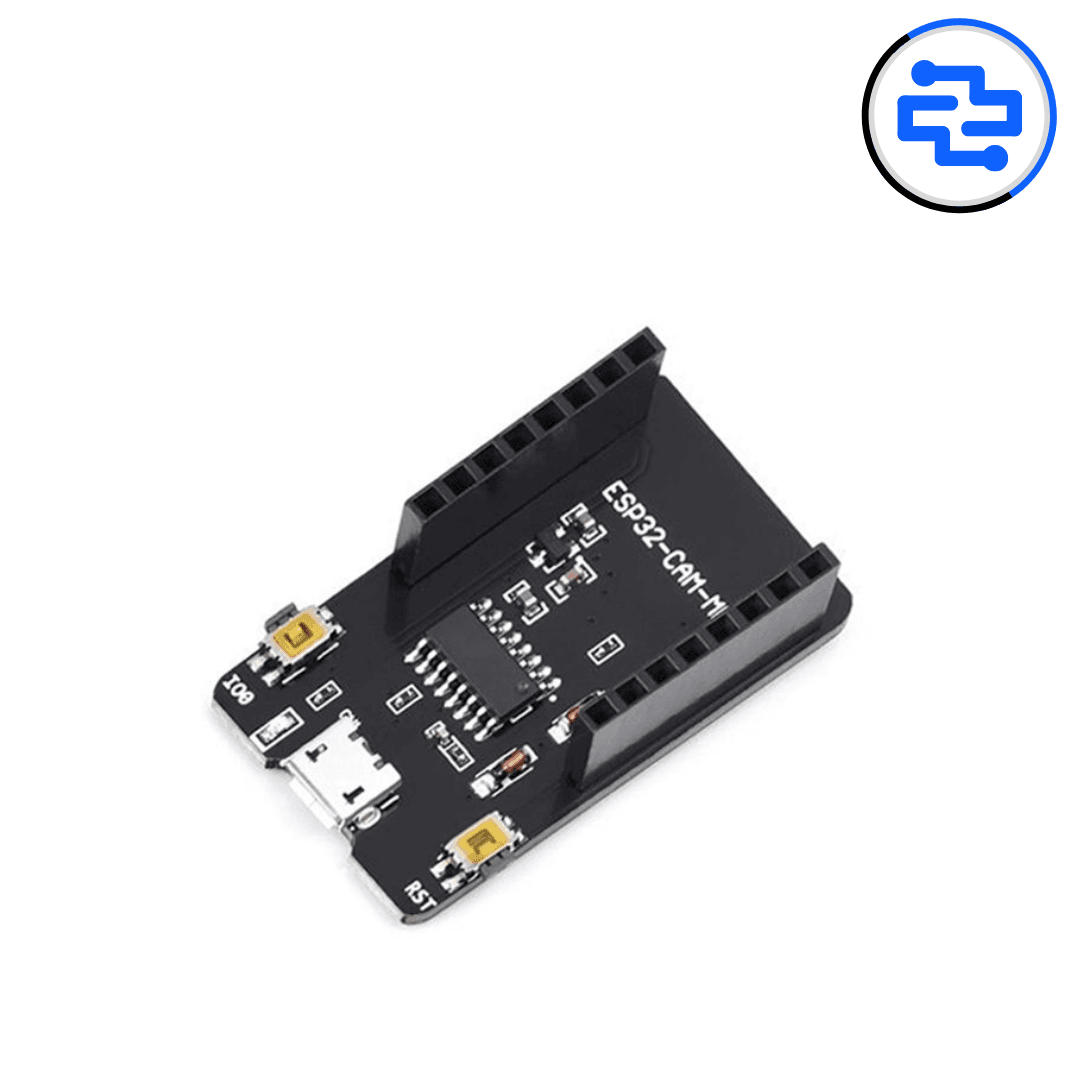

The ESP32-CAM Breakout Board is a development accessory designed to simplify programming, powering, and interfacing the ESP32-CAM module. It breaks out essential pins to standard headers, provides stable power input, and often integrates USB-to-UART support (variant dependent), making firmware flashing and prototyping faster and more reliable. This board is ideal for computer vision, IoT camera projects, and rapid ESP32-CAM development.
Core Board Specifications
• Board Type: ESP32-CAM breakout / programmer board
• Supported Module: ESP32-CAM (OV2640 compatible)
• Function: Pin breakout, power regulation, programming support
• Development Use: Prototyping and testing
Electrical & Interface
• Input Power: 5 V (USB or header)
• Logic Level: 3.3 V (ESP32 native)
• Programming Interface: USB-to-UART (onboard, variant dependent)
• Boot Control: Auto / manual GPIO0 control (variant dependent)
• Headers: Exposed GPIO, power, and serial pins
Performance Characteristics
• Stable power delivery for camera and WiFi bursts
• Reliable serial communication for flashing firmware
• Faster development cycle compared to loose wiring
• Improved debugging convenience
Physical Characteristics
• Form Factor: Compact breakout PCB
• Mounting: Header pins for breadboard or enclosure use
• Build: Lightweight and durable for repeated prototyping
Compatibility
• Arduino IDE
• ESP-IDF
• ESP32-CAM modules with OV2640
• Computer vision and IoT frameworks
Key Advantages
• Simplifies ESP32-CAM programming
• Reduces wiring errors and brownouts
• Easy access to GPIO and power pins
• Ideal for beginners and rapid prototyping
Technical Insights
• ESP32-CAM requires stable 5 V input during WiFi usage
• Some variants include onboard CH340 / CP2102 USB-UART
• GPIO availability remains limited by camera usage
• External antenna improves WiFi performance (module dependent)
Applications
• ESP32-CAM development and testing
• Smart camera prototyping
• IoT surveillance projects
• Face detection and image streaming
• Educational and maker projects
Pro Tip
• Use a good quality USB cable and power source
• Select the correct COM port and board in Arduino IDE
• Keep camera ribbon cable firmly seated
• Lower image resolution for smoother streaming
Package Includes
• 1 × ESP32-CAM Breakout Board
