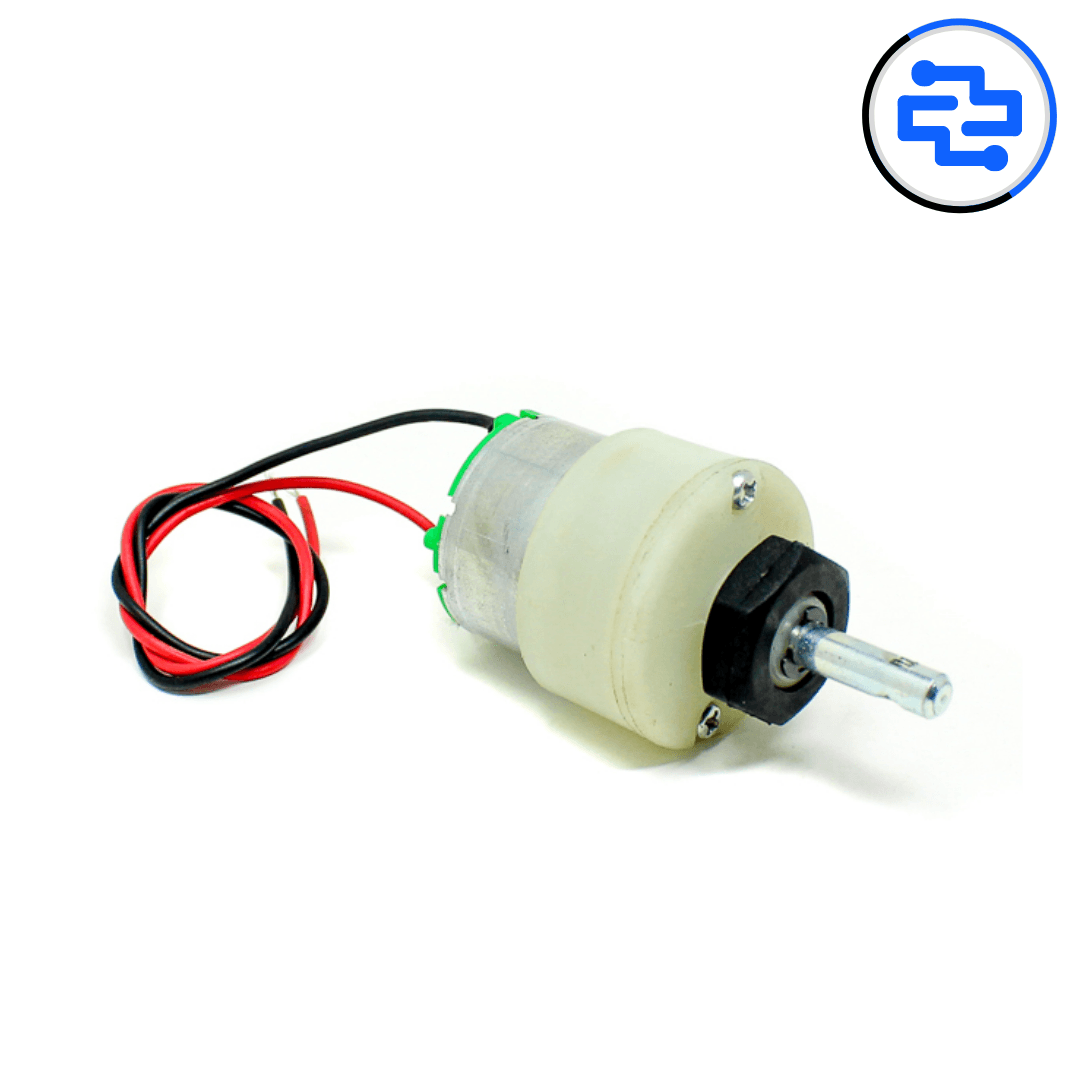

The 500 RPM Gear Motor is a high-speed DC geared motor designed for applications where faster motion is required along with controlled torque. With an integrated gearbox, it offers smoother rotation, better stability, and improved load handling compared to standard DC motors, making it suitable for robotics and automation projects.
Core Component Features
• Motor Type: DC Gear Motor
• Rated Speed: 500 RPM (no load)
• Gearbox: Built-in reduction gearbox
• Rotation: Bidirectional (CW / CCW by reversing polarity)
• Shaft Type: Metal output shaft compatible with wheels and couplers
Electrical & Interface
• Operating Voltage: Typically 6V – 12V DC
• Current Consumption: Load dependent
• Control Method: Direct DC supply or motor driver
• Direction Control: Polarity reversal
Performance & Usage
• High-speed output compared to lower RPM gear motors
• Moderate torque suitable for lightweight mechanisms
• Smooth and consistent rotation
• Speed control possible using PWM via motor driver
Physical & Integration
• Compact and lightweight motor body
• Pre-attached wires for easy connectivity
• Easy mounting on robot chassis
• Shaft supports wheels, gears, and mechanical links
Applications
• Fast robotic cars and bots
• Line follower robots requiring quick response
• Mini automation systems
• DIY electronics and robotics projects
• Small mechanical drives
Pro Tip
• Use motor drivers like L298N, TB6612FNG, or BTS7960 for safe operation
• Higher RPM motors draw more current under load, use proper power supply
• Avoid stalling the motor to increase lifespan
Package Includes
• 1 × 500 RPM DC Gear Motor
