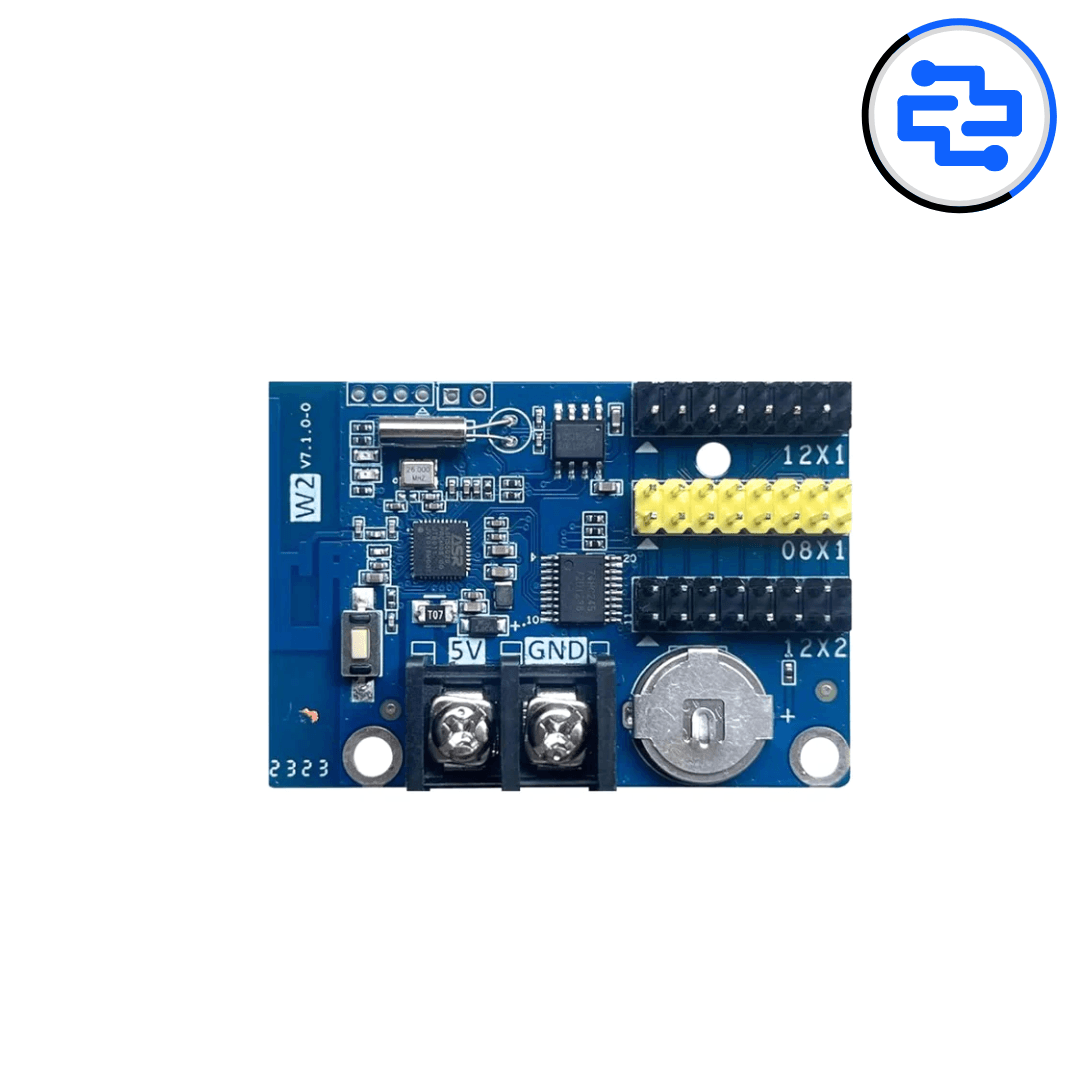

The HD-W2 P10 Single Color Controller is a compact and reliable control card designed for driving single-color P10 LED display panels. It is widely used in scrolling message boards, digital signboards, notice displays, and advertising panels. With support for USB and WiFi programming (variant dependent), the HD-W2 controller offers easy content updates, stable performance, and smooth text animations for indoor and semi-outdoor LED display applications.
Core Controller Specifications
• Controller Type: LED display control card
• Supported Display: P10 single-color LED modules
• Display Mode: Text, animation, and effects
• Control Method: USB / WiFi (model dependent)
Electrical & Interface
• Operating Voltage: 5 V DC
• Power Input: External SMPS (recommended)
• HUB Interface: HUB12 output
• Data Output: Single-color LED data
• Storage: Onboard memory for message storage
Performance Characteristics
• Smooth scrolling and animation effects
• Stable operation for continuous display use
• Fast content refresh
• Reliable communication with P10 panels
Physical Characteristics
• Board Type: PCB-mounted LED controller
• Indicators: Status LEDs
• Connectors: HUB12 ribbon cable connector
• Compact and lightweight design
Compatibility
• P10 single-color LED display modules
• LED scrolling display panels
• Indoor and semi-outdoor LED boards
• SMPS 5 V power supplies
Key Advantages
• Easy content update and configuration
• Designed specifically for P10 displays
• Compact controller for small to medium displays
• Cost-effective LED signage solution
Technical Insights
• Supports multiple text and animation modes
• Content configured via PC or mobile software
• Requires correct panel scan configuration
• External power supply required for LED panels
Applications
• LED scrolling message boards
• Shop name and advertising displays
• Information and notice boards
• Public announcement displays
• DIY LED signage projects
Pro Tip
• Always use a high-current 5 V SMPS for P10 panels
• Ensure correct HUB12 cable orientation
• Avoid hot-plugging the controller while powered ON
• Configure panel size correctly in software
Package Includes
• 1 × HD-W2 P10 Single Color LED Controller
