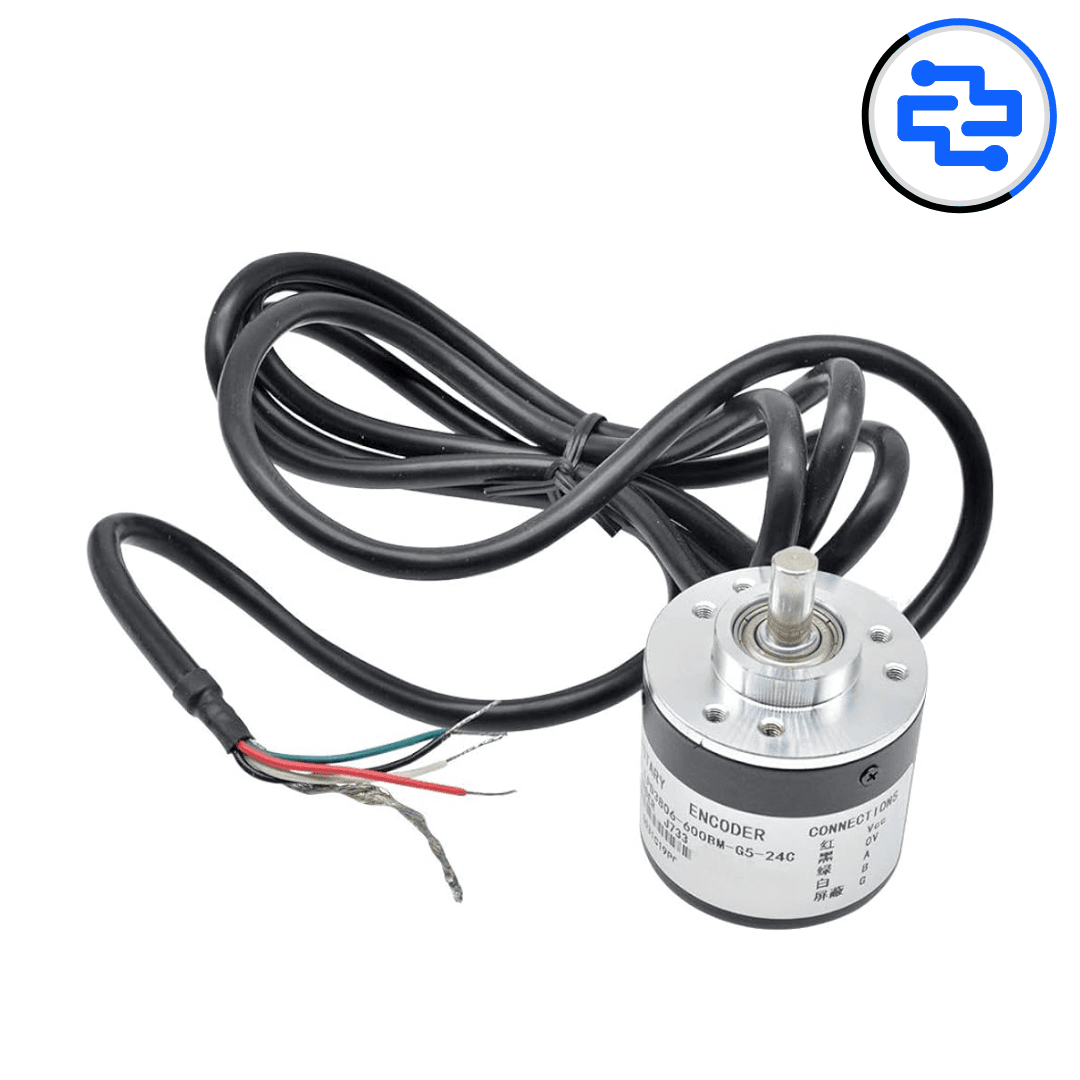

The Incremental Rotary Encoder 600 PPR is a precision position and speed sensing device used to measure rotational movement with high resolution. It generates quadrature pulse outputs as the shaft rotates, enabling accurate detection of direction, speed, and relative position. With a wide operating voltage range, this encoder is suitable for industrial automation, CNC machines, robotics, and motor control systems.
Core Encoder Specifications
• Encoder Type: Incremental rotary encoder
• Resolution: 600 pulses per revolution (PPR)
• Output Signals: Quadrature A, B (and optional Z index, variant dependent)
• Measurement Capability: Speed, direction, relative position
Electrical & Interface
• Operating Voltage: 5 V – 24 V DC
• Output Type: Digital square wave (TTL / NPN / line driver, variant dependent)
• Output Channels: A, B (90° phase shift), Z (optional)
• Interface Pins: VCC, GND, A, B, Z
• Signal Compatibility: PLCs, motor drivers, microcontrollers
Performance Characteristics
• High-resolution motion feedback
• Accurate direction sensing via quadrature outputs
• Stable signal generation at high rotational speeds
• Suitable for closed-loop control systems
Physical Characteristics
• Encoder Body: Metal / industrial-grade housing
• Shaft Type: Solid shaft (diameter variant dependent)
• Mounting: Flange or shaft-mount style
• Durable construction for continuous operation
Compatibility
• Arduino, ESP32, STM32
• PLC and industrial controllers
• Servo and stepper motor systems
• CNC and automation equipment
• Robotics and motion platforms
Key Advantages
• High resolution with 600 PPR output
• Wide operating voltage range
• Reliable quadrature signals
• Industrial and automation ready design
Technical Insights
• Position is relative (no absolute position on power loss)
• Requires pulse counting for angle calculation
• Noise filtering recommended for long cable runs
• Shielded cables improve signal integrity
Applications
• Motor speed and position feedback
• CNC machines and linear actuators
• Robotics navigation and joints
• Conveyor and automation systems
• Industrial motion control
Pro Tip
• Use hardware interrupts for accurate pulse counting
• Debounce or filter signals in noisy environments
• Match encoder output type to controller input
• Secure mechanical coupling to avoid slip
Package Includes
• 1 × Incremental Rotary Encoder 600 PPR
