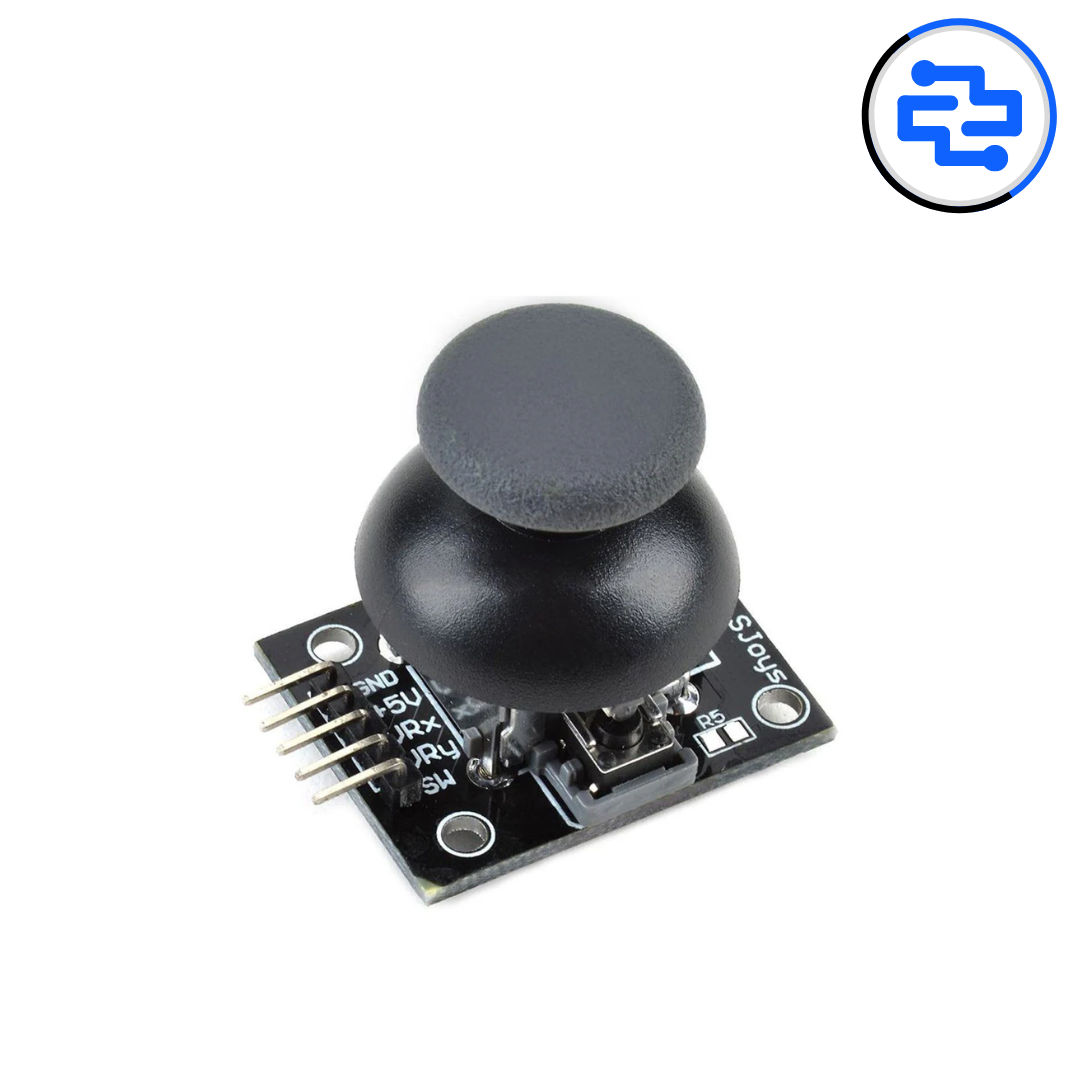

The PS2 Joystick Module is a simple and reliable dual-axis analog input device, ideal for controlling robots, drones, gaming interfaces, and DIY electronics projects. Modeled after classic game controller joysticks, it provides smooth X and Y directional control along with a digital switch for pressing the stick vertically. Its straightforward 5-pin interface makes it easy to connect with Arduino, Raspberry Pi, and other microcontrollers for precise directional input.
Technical Specifications
Core Specifications
Dual-axis analog output for X and Y movement
Integrated push-button switch activated by pressing the joystick
Operating voltage 3.3 V to 5 V for wide compatibility
Typical output range 0 V to VCC proportional to stick position
Durable potentiometer mechanism for long service life
Electrical & Physical
5-pin header interface: VCC, GND, VRx, VRy, SW
Smooth self-centering spring design for accurate readings
Module dimensions approximately 40 mm × 26 mm × 32 mm
Environmental
Reliable operation from –10 °C to +50 °C
Stable analog performance with minimal drift over time
Why Choose the PS2 Joystick Module
Provides intuitive control for robotics, gaming, and motion interfaces
Compact and lightweight for portable or embedded projects
Compatible with popular microcontrollers and sensor libraries
Critical Uses
DIY game controllers and arcade projects
Robotics navigation and speed control
Camera gimbal or pan-tilt servo control
User interfaces for custom electronics
Pro Tips
Calibrate analog readings in software for maximum accuracy
Use pull-up or pull-down resistors on the switch pin if needed
Avoid excessive force on the stick to extend the module’s lifespan
Package Includes
1 × PS2 Joystick Module (Dual Axis)
