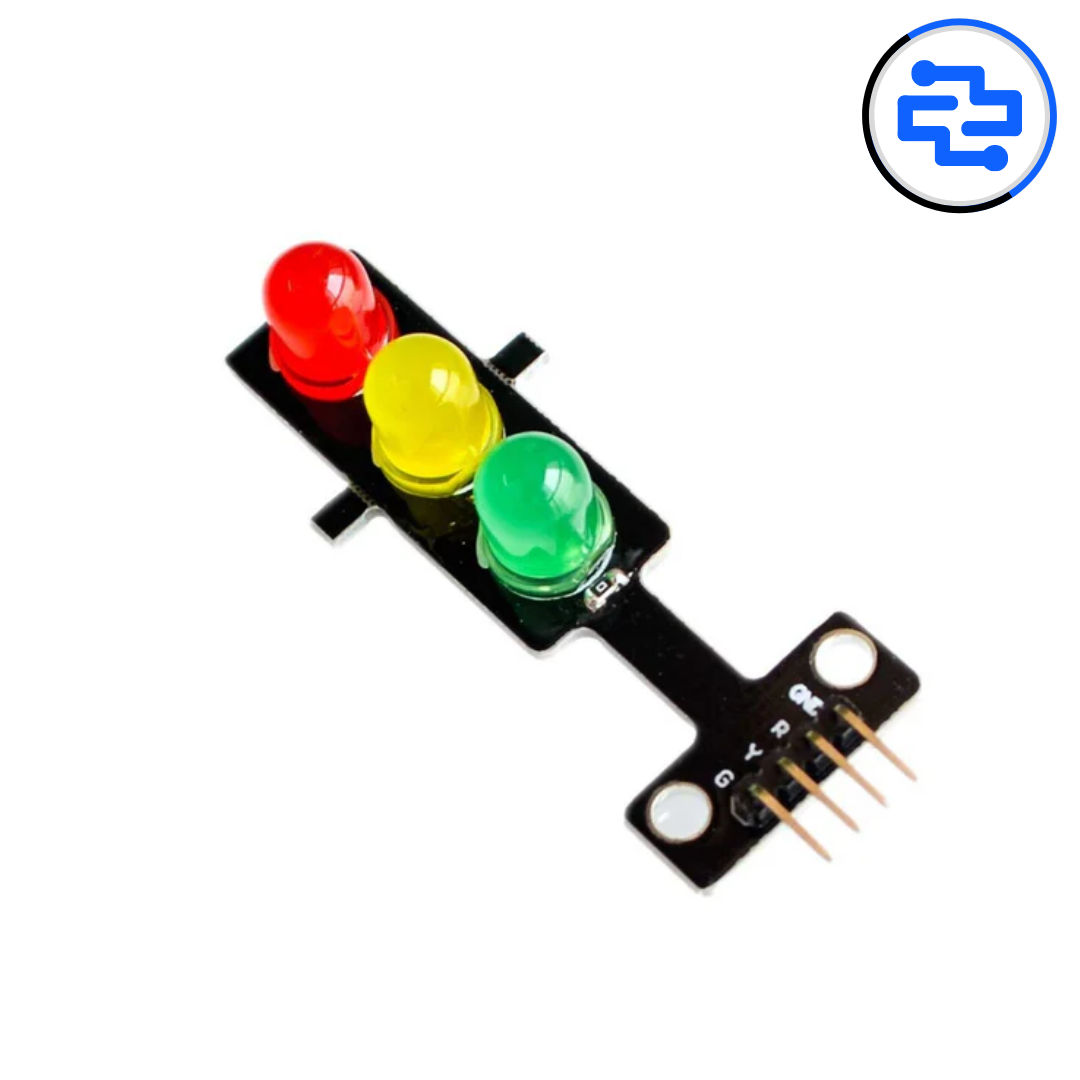

The LED Traffic Lights Signal Module is a compact indicator module that features three bright LEDs (Red, Yellow, and Green) in a single board, designed to simulate a real traffic signal system. It is widely used in Arduino learning projects, robotics indications, automation status displays, and model traffic control demonstrations. With a simple 3-wire control interface, this module makes it easy to create signal-light logic for DIY electronics projects.
Core Module Specifications
• Module Type: 3-color LED signal indicator
• LED Colors: Red + Yellow + Green
• Function: Traffic signal simulation / status indication
• Control Type: Digital ON/OFF control for each LED
Electrical & Interface
• Operating Voltage: 3.3 V – 5 V DC
• Interface Type: 4-pin header
• Pins: GND, R, Y, G (individual LED control pins)
• Output Type: Visual LED indication
• Current Limiting: Onboard resistors (typically included)
Performance Characteristics
• Bright and clearly visible LEDs
• Fast switching response
• Stable output for continuous operation
• Suitable for indoor projects and training kits
Physical Characteristics
• Module Type: Small PCB with 3 LEDs
• Mounting: PCB holes for easy fixing
• Compact and lightweight design
• Easy breadboard / jumper wire compatible
Compatibility
• Arduino Uno / Nano / Mega
• ESP8266 / ESP32
• Raspberry Pi GPIO
• STM32 boards
• Works with any 3.3V/5V microcontroller digital pins
Key Advantages
• Ready-to-use traffic light indicator module
• Easy wiring with separate LED control pins
• Ideal for learning and demo projects
• Useful for machine status or warning indication
Technical Insights
• Each LED is controlled by a separate digital pin
• Use PWM for dimming or brightness control if needed
• Common GND must be connected for proper operation
• Can be driven directly from microcontroller pins (low current)
Applications
• Arduino traffic light projects
• Robotics signal indication
• Automation and process status display
• STEM learning kits and electronics training
• Mini model road / smart city projects
Pro Tip
• Use delays or timers in code to create realistic traffic sequences
• Add a buzzer for pedestrian crossing simulation
• Combine with IR sensors for smart traffic control demos
• Use GPIO protection if powering from higher voltage systems
Package Includes
• 1 × LED Traffic Lights Signal Module
