Limit Switch Module

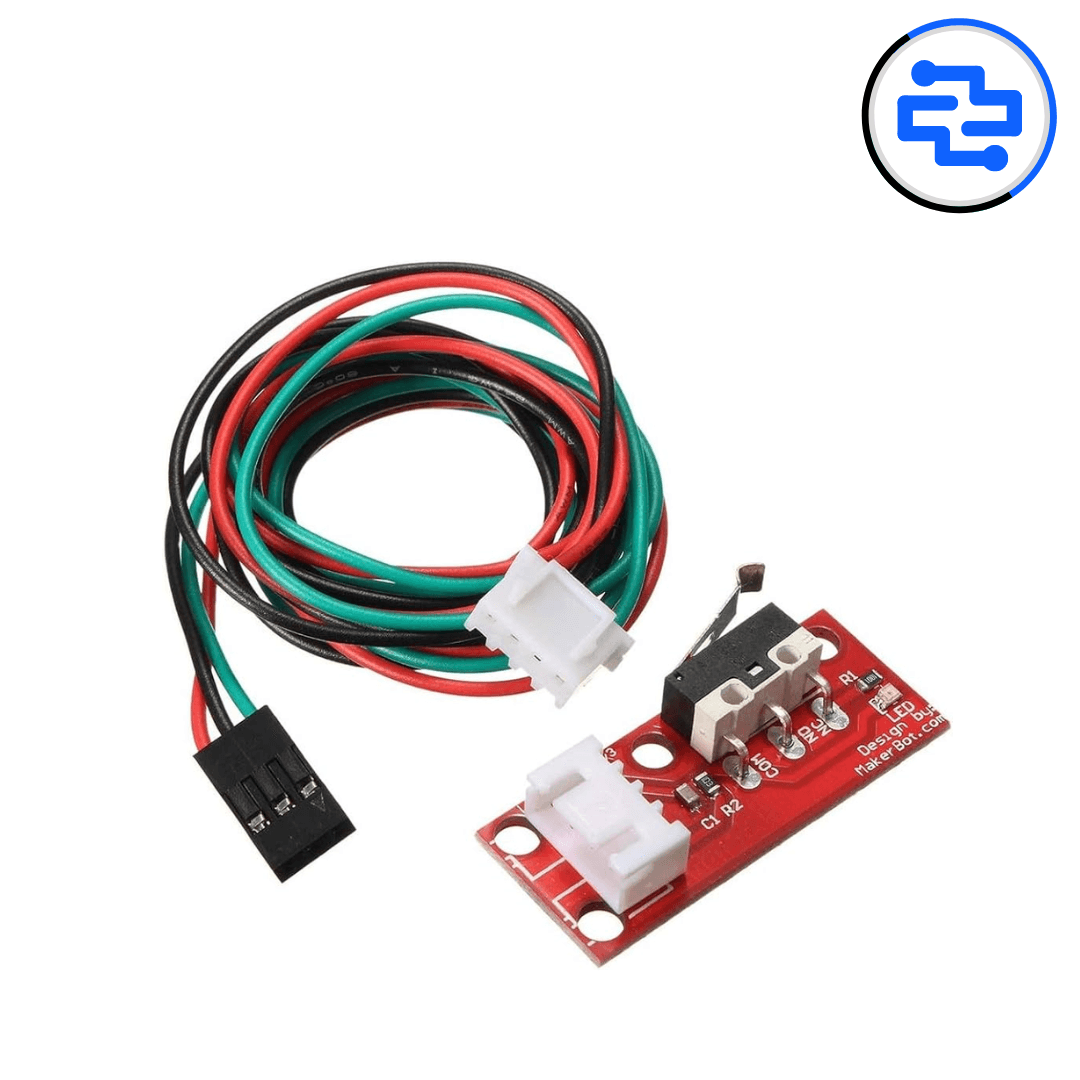

The Limit Switch Module is a compact mechanical sensing module designed to detect the position, movement, and end limits of mechanical systems. Featuring a durable lever-type limit switch with an easy-to-connect interface, this module provides reliable switching signals for automation, robotics, CNC machines, and electronic control applications. Available at Directronics, the Limit Switch Module is ideal for students, hobbyists, makers, educators, and professional engineers working on Arduino, ESP32, Raspberry Pi, robotics, and automation projects.

Features:

• High-Quality Mechanical Limit Switch

• Detects Object Position and Mechanical Movement

• Provides Digital ON/OFF Switching Signal

• Durable Lever Actuator Design

• Compact and Lightweight PCB Design

• Easy Interface with Microcontrollers

• Built-In Pull-Up/Pull-Down Circuit (Model Dependent)

• Stable and Reliable Switching Performance

• Simple Three-Pin Connection

• Compatible with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and Other Controllers

• Suitable for Automation and Motion Control Applications

Why Choose Limit Switch Module?

• Provides accurate position detection for moving systems

• Easy integration with development boards

• Helps prevent mechanical over-travel in machines

• Compact solution for robotics and automation projects

• Reliable switching operation

• Suitable for beginners, students, and professionals

Applications:

• 3D Printer End Stop Detection

• CNC Machine Limit Detection

• Robotics Position Sensing

• Motor Control Systems

• Automation Projects

• Door and Gate Position Detection

• Mechanical Safety Systems

• Arduino Sensor Projects

• Industrial Control Applications

• DIY Electronics Projects

Technical Specifications:

• Product Type: Mechanical Limit Switch Module

• Switch Type: Lever Arm Micro Switch

• Output Type: Digital Signal

• Operating Voltage: 3.3V–5V DC

• Interface Pins: VCC, GND, Signal

• Contact Type: Normally Open / Normally Closed (Model Dependent)

• Actuator Type: Roller Lever

• Switching Life: Model Dependent

• PCB Size: Compact Design

• Mounting Type: Screw Mount / PCB Mount (Model Dependent)

• Operating Temperature: -20°C to +70°C (Typical)

Package Includes:

• 1 × Limit Switch Module
