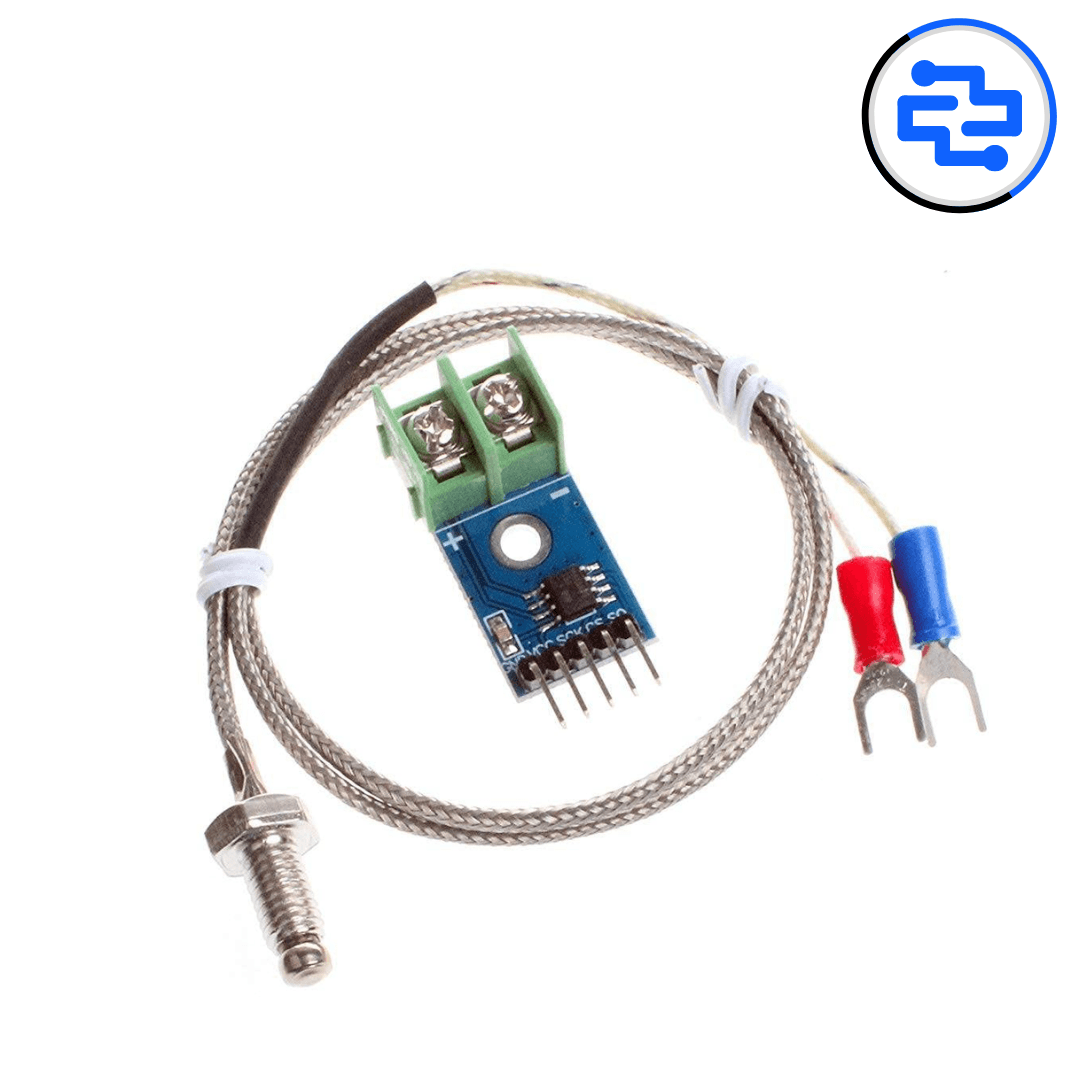

The MAX6675 Module with K Type Thermocouple Sensor is a high-temperature measurement solution designed for accurate digital temperature sensing in industrial and DIY applications. It converts the thermocouple’s small voltage signals into a stable digital output using the MAX6675 thermocouple-to-digital converter IC. This setup is perfect for measuring extreme temperatures in ovens, furnaces, 3D printers, heating plates, and CNC machines, while offering easy SPI interfacing with Arduino and other microcontrollers.
Core Sensor Specifications
• Sensor Type: Thermocouple temperature measurement module
• Converter IC: MAX6675
• Thermocouple Type: K Type
• Measurement Output: Digital temperature reading
Electrical & Interface
• Operating Voltage: 3.0 V – 5.5 V DC
• Communication Interface: SPI (3-wire)
• Interface Pins: VCC, GND, SCK, CS, SO
• Thermocouple Input: Screw terminal (T+ / T−)
• Cold Junction Compensation: Built-in
Performance Characteristics
• Wide temperature measurement capability
• Stable digital output with good noise rejection
• Fast and reliable readings for heating systems
• Suitable for continuous temperature monitoring
Physical Characteristics
• Module Type: PCB-mounted MAX6675 converter board
• Sensor Probe: Stainless steel K type thermocouple probe
• Cable Type: Braided thermocouple wire
• Easy mounting and installation design
Compatibility
• Arduino Uno / Nano / Mega
• ESP8266 / ESP32 (SPI support)
• Raspberry Pi
• CNC and 3D printer temperature control
• Industrial and DIY heating projects
Key Advantages
• Measures high temperatures beyond normal sensors
• Digital SPI output reduces ADC noise issues
• Includes cold junction compensation
• Simple wiring and wide microcontroller support
Technical Insights
• Reads temperature in steps (resolution limited by IC)
• Not suitable for very fast temperature changes
• Use proper polarity on thermocouple terminals
• Keep thermocouple wires away from high EMI sources
Applications
• 3D printer hotend temperature sensing
• Oven and furnace monitoring
• CNC spindle / motor temperature checks
• Heating plate and soldering station projects
• Industrial temperature logging systems
Pro Tip
• Tighten thermocouple terminals properly for stable reading
• Use shielded routing near motors or relays
• Avoid extending thermocouple wire using normal copper wire
• Calibrate if precision is required in critical setups
Package Includes
• 1 × MAX6675 Thermocouple Converter Module
• 1 × K Type Thermocouple Temperature Sensor
