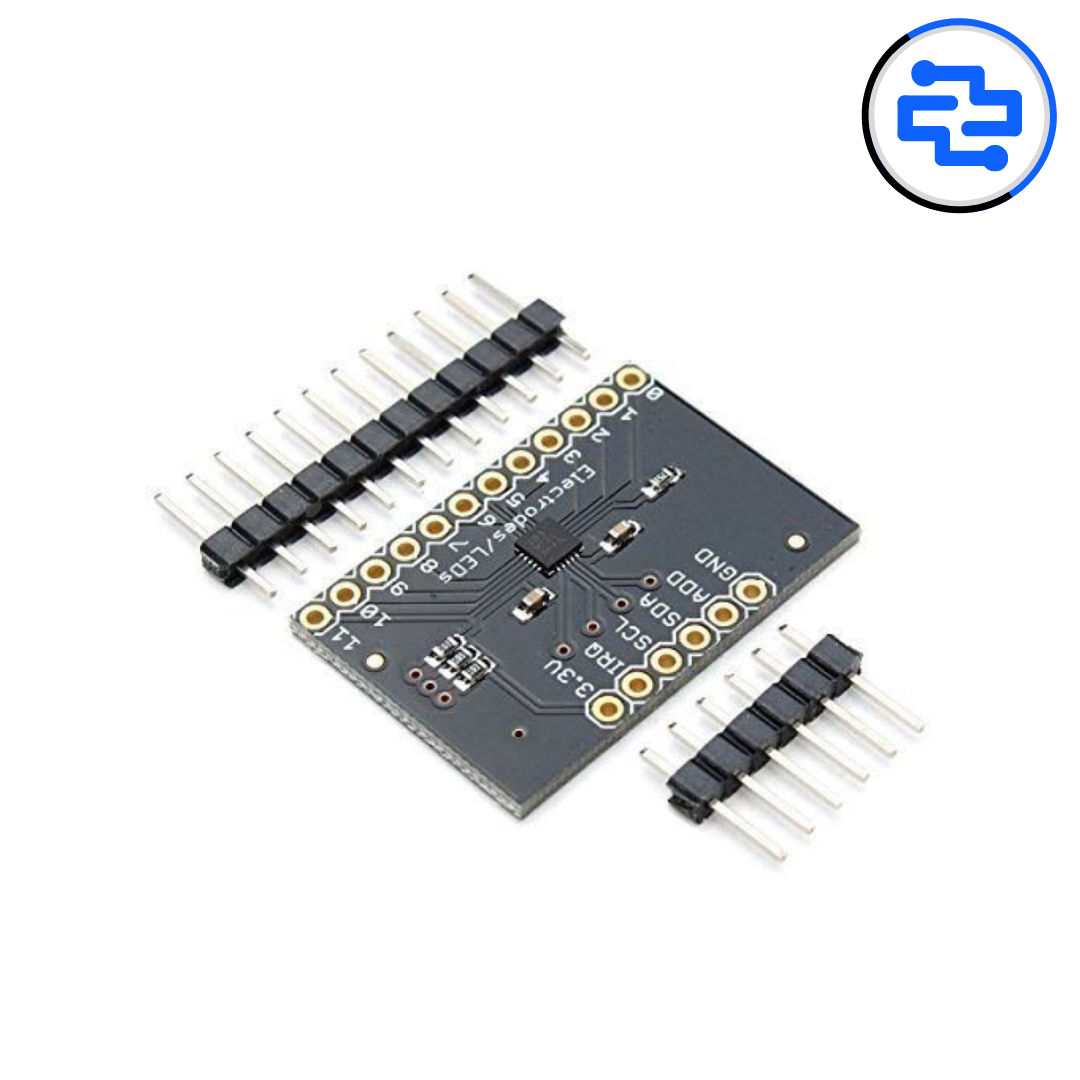

The MPR121 Breakout V12 Capacitive Touch Sensor Module is a multi-channel capacitive touch controller designed to add touch input functionality to embedded projects. It supports up to 12 independent touch electrodes, allowing you to create touch buttons, sliders, and interactive control panels without mechanical switches. With an I²C interface and built-in filtering, the MPR121 is widely used in smart home touch panels, musical instruments, interactive displays, and DIY touch-based automation projects.
Core Sensor Specifications
• Sensor Type: Capacitive touch sensor controller
• Controller IC: MPR121
• Touch Channels: 12 electrodes
• Touch Detection Type: Capacitive (touch / proximity)
Electrical & Interface
• Operating Voltage: 1.71 V – 3.6 V
• Logic Level: 3.3 V (5 V requires level shifting)
• Communication Interface: I²C
• I²C Address: 0x5A (default, configurable)
• Interface Pins: VCC, GND, SDA, SCL, IRQ
• Output Type: Digital touch status via I²C
Performance Characteristics
• Fast and accurate multi-touch detection
• Built-in baseline tracking and noise filtering
• Supports proximity detection for each channel
• Stable operation with proper grounding
Physical Characteristics
• Module Type: Breakout board for MPR121
• Electrode Outputs: 12 touch input pads/pins
• Compact and lightweight design
• Easy to connect external touch pads or wires
Compatibility
• Arduino Uno / Nano / Mega (use level shifter if 5 V)
• ESP8266 / ESP32
• Raspberry Pi
• STM32 microcontrollers
• Touch-based control systems and IoT devices
Key Advantages
• 12 touch inputs in one module
• Simple I²C interface for easy integration
• Highly configurable sensitivity and thresholds
• Ideal for modern touch UI projects
Technical Insights
• Touch pads can be made using foil, PCB pads, or wires
• Proper grounding improves stability and reduces false triggers
• IRQ pin enables interrupt-based touch detection
• Avoid noisy power sources for clean touch sensing
Applications
• Touch keypads and control panels
• Touch-based home automation switches
• Interactive art and installations
• DIY musical instruments
• Robotics and human interface projects
Pro Tip
• Keep electrode wires short to reduce noise
• Use shielded wire for long touch leads
• Tune touch/release thresholds for your enclosure
• Add level converter for Arduino 5 V I²C lines
Package Includes
• 1 × MPR121 Breakout V12 Capacitive Touch Sensor Module
• Header pins (if included)
