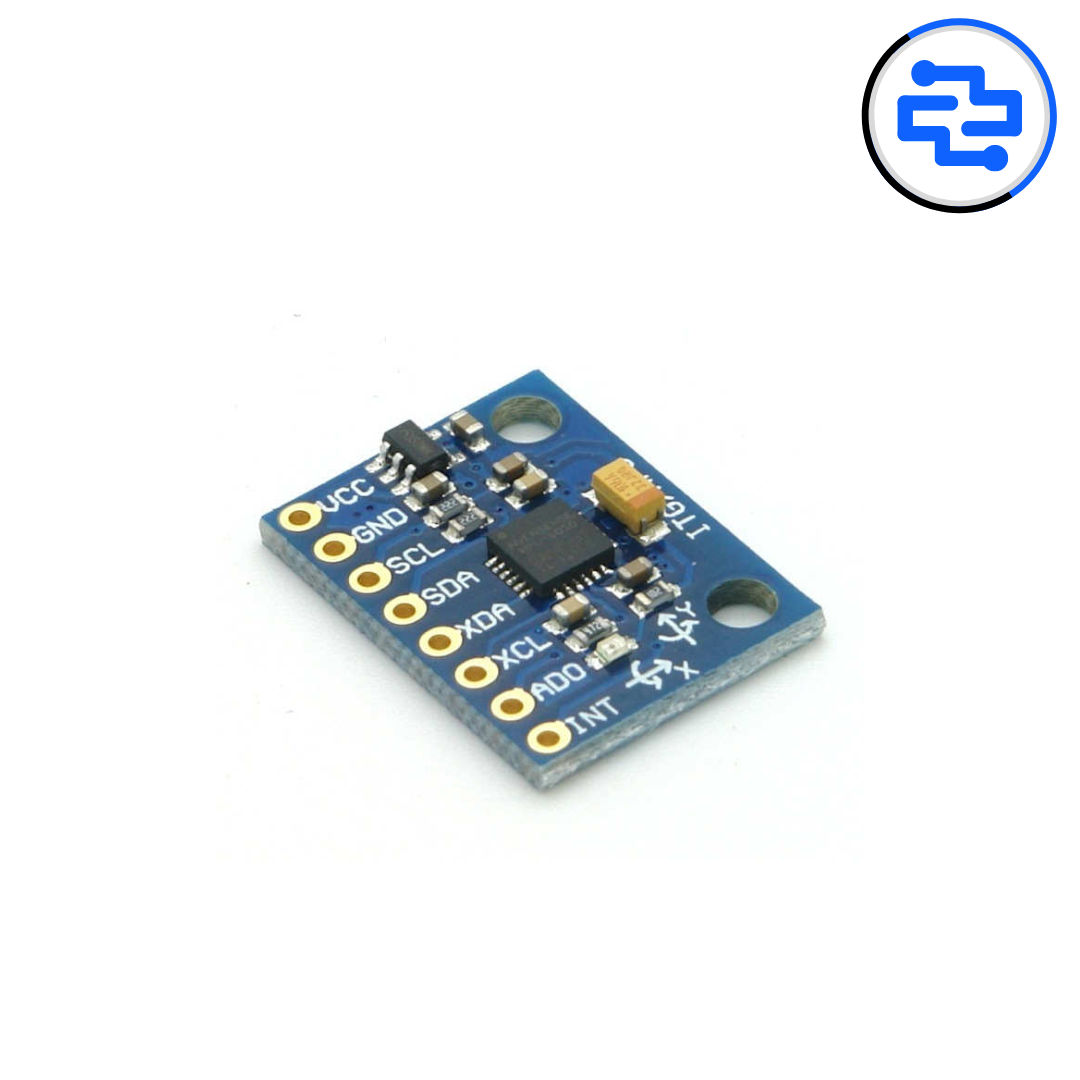

The MPU6050 is a high-performance 6-axis motion tracking module that combines a 3-axis gyroscope and a 3-axis accelerometer in a single chip. It delivers precise motion sensing for applications such as drones, robotics, gesture control, and gaming devices. With an integrated Digital Motion Processor (DMP) and I²C communication, it simplifies complex motion processing and easily interfaces with Arduino, Raspberry Pi, and other microcontrollers.
Technical Specifications
Core Specifications
3-axis gyroscope and 3-axis accelerometer in one package
Selectable gyroscope range: ±250, ±500, ±1000, ±2000 °/s
Selectable accelerometer range: ±2 g, ±4 g, ±8 g, ±16 g
Operating voltage: 3.3 V to 5 V (onboard regulator)
I²C digital interface for easy microcontroller communication
Electrical & Physical
Onboard 16-bit ADC for each channel for precise measurement
Built-in Digital Motion Processor for sensor fusion calculations
Standard 4-pin header: VCC, GND, SDA, SCL
Compact module size approximately 20 mm × 15 mm × 2 mm
Environmental
Operating temperature range: –40 °C to +85 °C
Low power consumption suitable for battery-powered applications
Why Choose the MPU6050
Integrates both accelerometer and gyroscope for complete motion tracking
High sensitivity and low noise output ideal for precise control
Compatible with a wide range of open-source libraries and platforms
Critical Uses
Drone flight stabilization and navigation
Robotics orientation and balance systems
Gesture-based user interfaces and gaming controls
Wearable motion detection and activity tracking
Pro Tips
Calibrate the sensor in software to eliminate bias and drift
Use pull-up resistors on SDA and SCL lines for reliable I²C communication
Place the module on a vibration-damped surface for best accuracy
Package Includes
1 × MPU6050 Gyroscope Sensor Module
