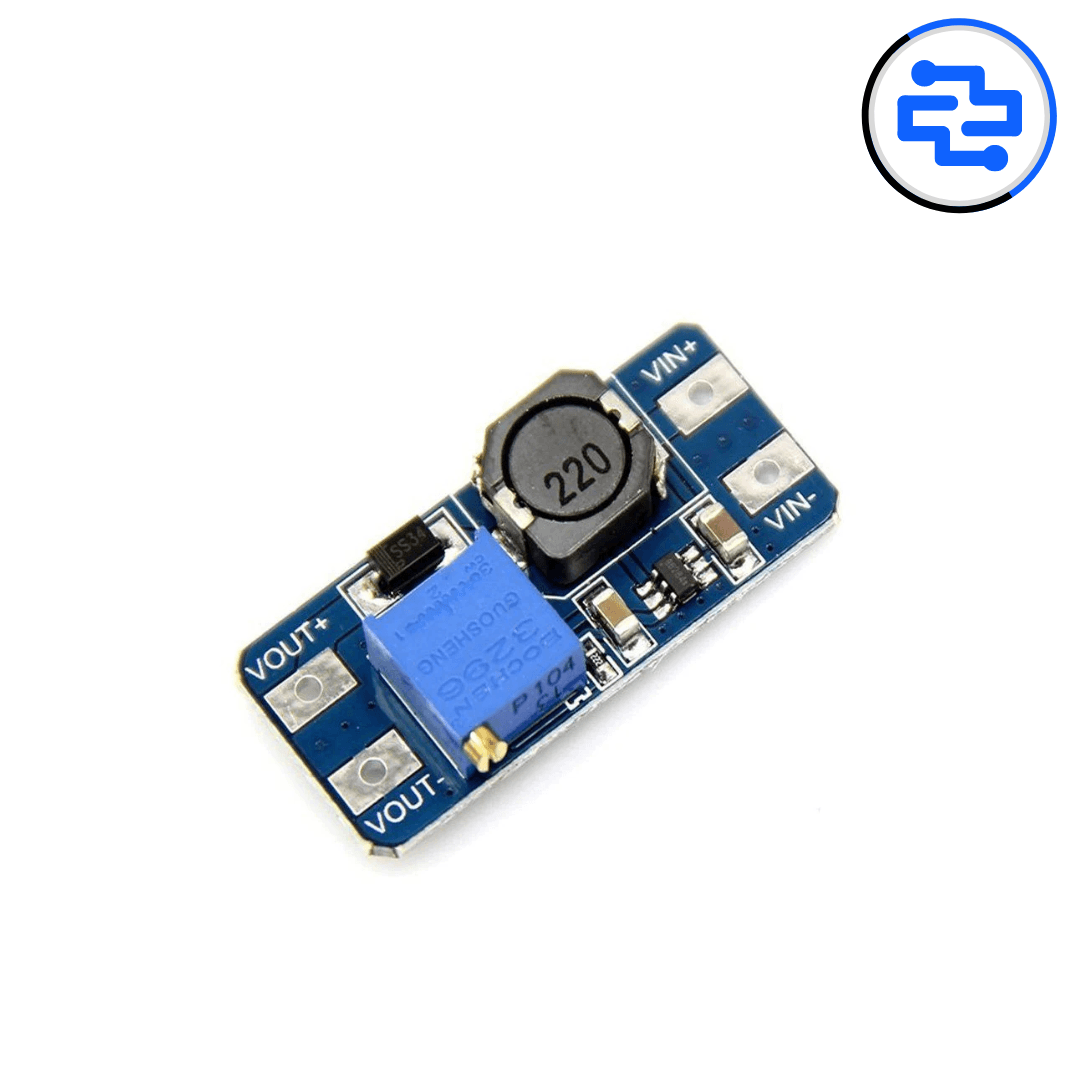

The MT3608 DC to DC Power Boost Module is a compact step-up (boost) converter designed to increase lower DC input voltages to a higher adjustable output voltage. It is widely used in battery-powered projects, portable devices, and embedded systems where a stable higher voltage is required from a low-voltage source such as Li-ion cells or USB power.
Core Module Specifications
• Converter Type: DC–DC step-up (boost)
• Controller IC: MT3608
• Output Voltage: Adjustable via onboard potentiometer
• Conversion Method: Switching regulator
Electrical & Interface
• Input Voltage Range: 2 V – 24 V DC
• Output Voltage Range: 5 V – 28 V DC (input dependent)
• Maximum Output Current: Up to 2 A (practical current lower)
• Efficiency: Up to ~93% (load dependent)
• Interface: VIN+, VIN−, VOUT+, VOUT−
Performance Characteristics
• Stable adjustable output voltage
• High efficiency switching operation
• Suitable for battery-powered applications
• Output depends on input voltage and load current
Physical Characteristics
• Module Type: PCB-mounted boost converter
• Adjustment: Multi-turn potentiometer
• Compact and lightweight design
• Onboard inductor and switching components
Compatibility
• Li-ion and Li-Po batteries
• Arduino and ESP-based projects
• STM32 and other embedded controllers
• Portable power and DIY electronics
Key Advantages
• Wide input voltage range
• Adjustable output voltage
• High efficiency with compact size
• Easy integration into embedded systems
Technical Insights
• Output voltage must be set before connecting sensitive loads
• High load currents require good airflow and heat dissipation
• Input source must supply sufficient current
• Not suitable for negative voltage generation
Applications
• Battery voltage boosting
• Portable power supplies
• Powering sensors and modules
• DIY electronics projects
• Embedded system power management
Pro Tip
• Always adjust output voltage using a multimeter before use
• Avoid short circuits on the output
• Use thick wires for high-current applications
• Do not exceed recommended input/output limits
Package Includes
• 1 × MT3608 DC to DC Power Boost Module
