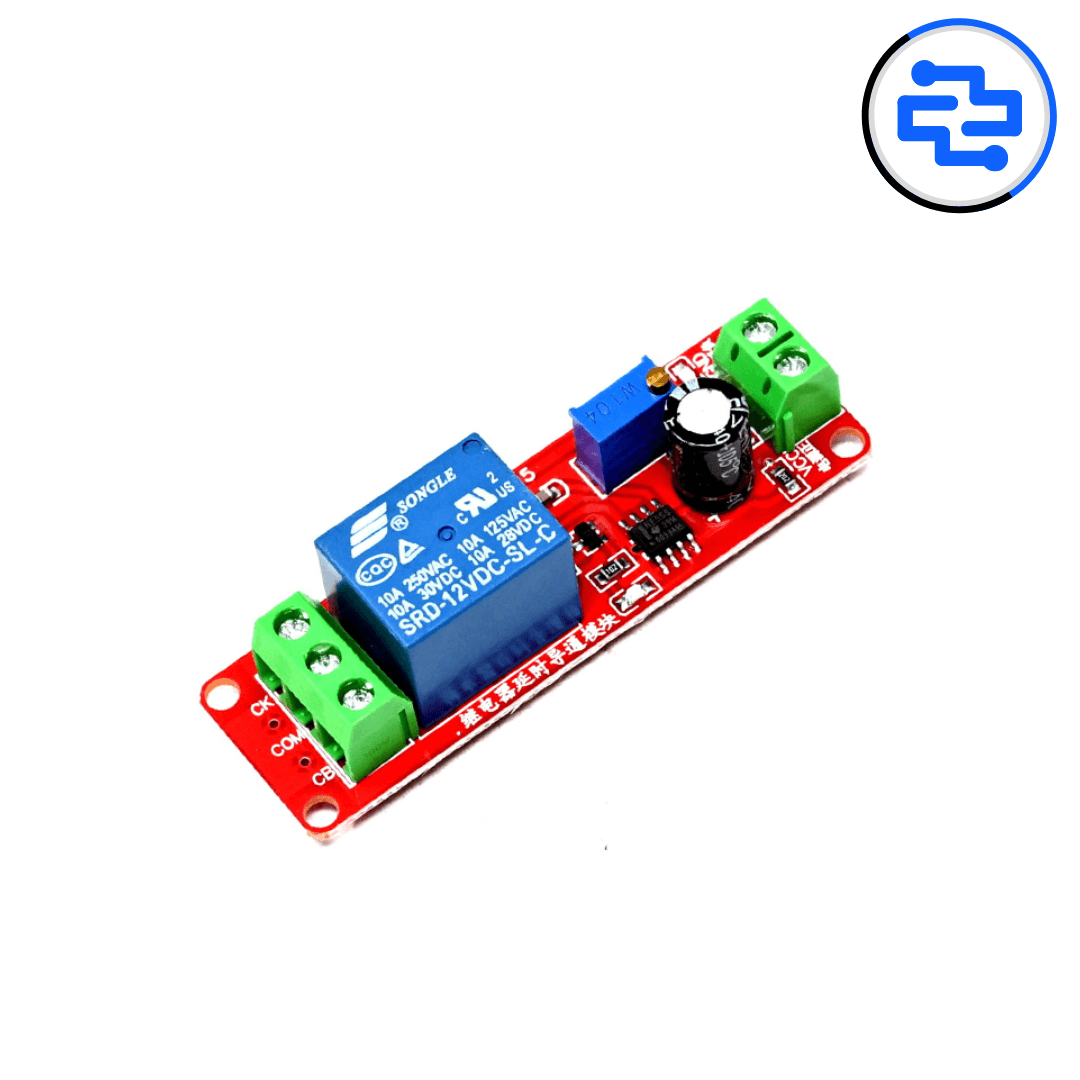

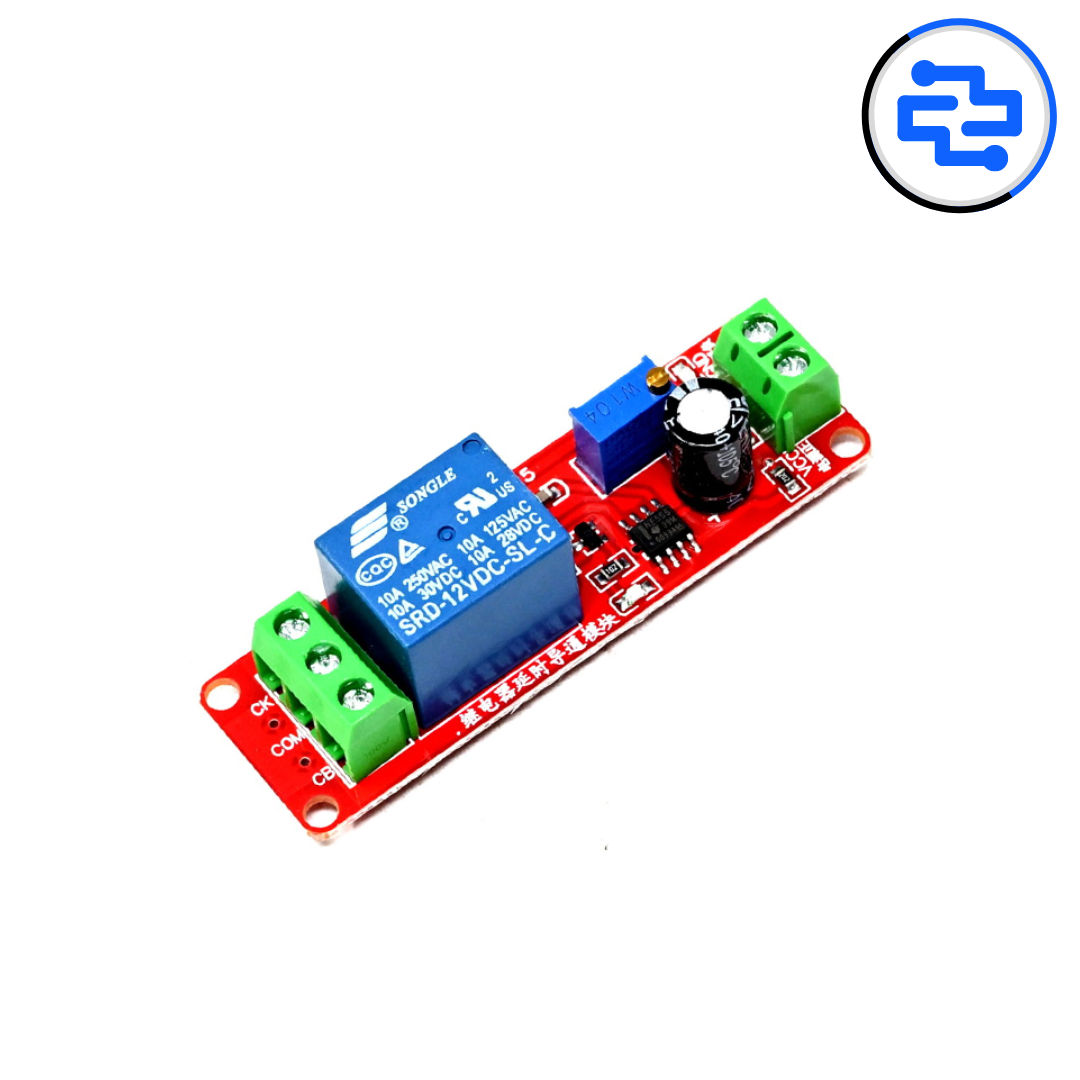

NE555 Delay Monostable Switch Module

The NE555 Delay Monostable Switch Module is a timer-based control module designed to provide adjustable time delay switching using the popular NE555 timer IC. This module operates in monostable mode, allowing an output signal to remain active for a preset duration after receiving a trigger input. With an adjustable potentiometer for setting the delay time, it is widely used in automation, relay control, timing circuits, and DIY electronics projects. Available at Directronics, the NE555 Delay Monostable Switch Module is ideal for students, hobbyists, makers, educators, and professional engineers working on timer and control applications.

Features:

• Based on NE555 Precision Timer IC

• Adjustable Time Delay Control

• Monostable Operating Mode

• Single Trigger Activated Output

• Adjustable Delay Through Potentiometer

• LED Power and Output Indicators

• Compact PCB Module Design

• Stable Timing Performance

• Simple Input and Output Connections

• Low Power Consumption

• Suitable for Relay and Load Control Applications

• Easy Integration into Electronic Projects

Why Choose NE555 Delay Monostable Switch Module?

• Provides simple and reliable time delay control

• Eliminates the need for complex microcontroller programming

• Adjustable timing makes it suitable for multiple applications

• Easy to interface with relays, motors, and electronic circuits

• Cost-effective solution for automation projects

• Ideal for beginners, students, hobbyists, and professionals

Applications:

• Relay Delay Control Systems

• Automatic Light Switching

• Motor Control Applications

• Power-On Delay Circuits

• Security Alarm Systems

• Electronic Lock Systems

• Industrial Automation Projects

• Timer-Based Control Systems

• Arduino and Microcontroller Trigger Applications

• DIY Electronics Experiments

Technical Specifications:

• Product Type: Timer Delay Switch Module

• Timer IC: NE555

• Operating Mode: Monostable Mode

• Operating Voltage: 5V–15V DC (Typical)

• Trigger Input: External Trigger Signal

• Output Type: Digital Switching Output

• Delay Time: Adjustable (Model Dependent)

• Adjustment Method: Potentiometer

• Indicator: Power LED / Output LED

• PCB Type: Compact Control Module

• Output Drive Capability: Suitable for Relay Driver and Low-Power Loads

• Operating Temperature: -20°C to +70°C (Typical)

Package Includes:

• 1 × NE555 Delay Monostable Switch Module

Related Products:

• 1-Channel Power Relay Module with Adjustable Timing Cycle

• Relay Module

• Arduino Uno

• ESP32 Development Board

• MOSFET Driver Module

• Power Supply Adapter

• Jumper Wire Bundle (40Pcs)

• Breadboard

• Sensor Modules

Why Buy from Directronics?

Directronics provides quality development boards, communication modules, sensors, electronic components, robotics modules, power management solutions, and IoT products for students, makers, educational institutions, startups, and industry professionals. Explore our complete range of Arduino, ESP32, ESP8266, Raspberry Pi, power modules, motor drivers, programming tools, and embedded development products to bring your ideas to life.

Note:

Product images are for illustration purposes only. Actual module design, timing range, pin configuration, and specifications may vary depending on the manufacturing batch. Ensure correct supply voltage and load ratings before connecting external devices. Use an appropriate relay or driver circuit when controlling high-current loads.
