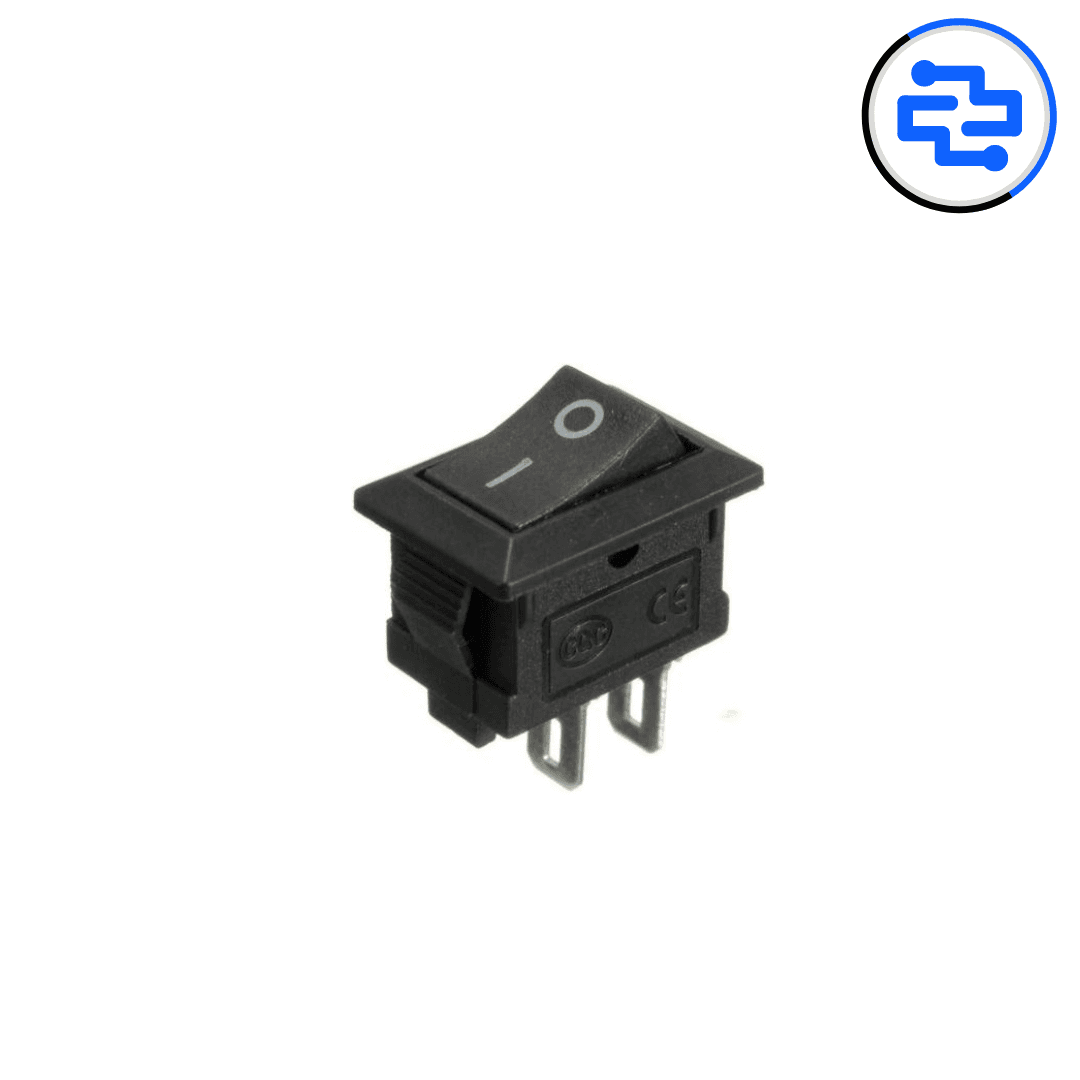

This Mini Size On/Off Rocker Switch is perfect for controlling power to electronic circuits, robots, etc. We have carefully selected the best On/Off Rocker Switch with a high load rating and the perfect size for all general-purpose On/Off applications. This rocker switch has two positions - one on position and another off position. The rocker switch stays in the one till it is pressed and changed to the other position. It has two large pins on the backside to which wires can be soldered and connected to your circuit.
The On/Off Rocker Switch is the simplest and easiest power control switch for your project. It comes with tabs on the top and bottom which secure it onto an enclosure without the need for any screws. On and Off positions are clearly marked which helps users identify the current switch position during usage.
This switch is great to turn on/off and control DC Motors in Robotics, Car and Motorcycle DC Motors, DC Motors in Industrial Machines, Water Dispensers, etc. We have sourced the best switch with a high load rating of 3A at 250VAC which should be suitable for most applications.
Features
- No of Pins: 2 Pins SPST
- No of Positions: 2 ON and OFF
- Operation Type: Latching
- Positions Marked on the rocker: I, O (On and Off) for easy identification
- Panel Cut-Out: 13.8mm x 9.2mm
- Overall Dimensions: 15mm x 10.5mm x 18.9mm (Length x Width x Height )
- Rating: Max 5A upto 250VAC
- Used widely for on/off power control, car, motorcycle, boat, some machines, water dispenser, etc.
- Color: Black
- Material : Plastic & Metal
Package Includes :
1 x On Off Rocker Switch
