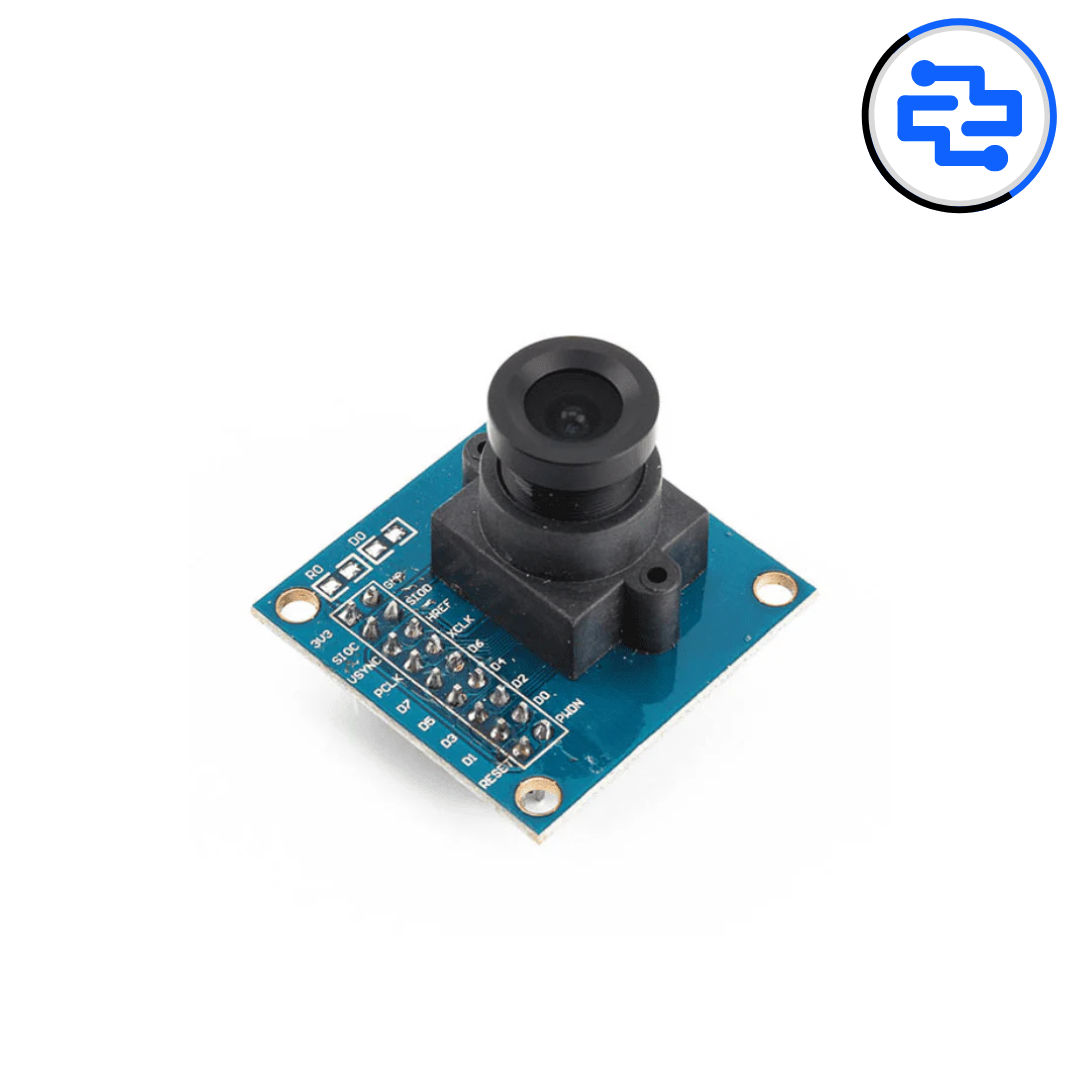

The OV7670 VGA Camera Module is a popular low-cost image sensor module used for capturing photos and real-time video frames in embedded systems. It provides VGA resolution output and supports multiple image formats, making it ideal for robotics vision, DIY surveillance, image processing projects, and microcontroller-based camera applications. With a parallel data interface and configurable registers, the OV7670 is widely used in Arduino, STM32, and FPGA-based camera projects where a compact camera solution is needed.
Core Camera Specifications
• Camera Sensor: OV7670 CMOS image sensor
• Resolution: VGA (640 × 480)
• Output Type: Parallel data output
• Supported Formats: RGB565, YUV, Bayer RAW (configurable)
Electrical & Interface
• Operating Voltage: 3.3 V DC
• Logic Level: 3.3 V
• Interface Type: 8-bit parallel (D0–D7) + sync signals
• Control Interface: SCCB (I²C compatible)
• Clock Input: External XCLK required
• Key Pins: VSYNC, HREF, PCLK, XCLK, RESET, PWDN, SCL, SDA
Performance Characteristics
• Real-time VGA frame output
• Adjustable brightness, contrast, and color settings
• Supports automatic exposure and white balance
• Suitable for basic vision and image capture tasks
Physical Characteristics
• Module Type: Compact camera board
• Lens: Fixed-focus lens (adjustable on some variants)
• Mounting Holes: Provided for easy mounting
• Lightweight and portable design
Compatibility
• STM32 development boards
• Arduino (limited by memory and speed)
• ESP32 (with parallel camera support)
• FPGA and image processing systems
• Robotics and DIY camera projects
Key Advantages
• Low-cost VGA camera solution
• Multiple image output formats
• Configurable settings through SCCB registers
• Widely used with large community support
Technical Insights
• Requires high-speed MCU for smooth frame capture
• Arduino Uno is not ideal for full-frame processing
• Best used with STM32 / ESP32 / FPGA for better performance
• Needs stable 3.3 V power and proper clock signal
Applications
• DIY image capture projects
• Robotics vision systems
• Embedded surveillance solutions
• Object detection experiments
• Educational camera and imaging projects
Pro Tip
• Use ESP32-CAM or STM32 for easier integration
• Keep data lines short to avoid signal noise
• Use proper clock frequency for stable output
• Start with low resolution for faster processing
Package Includes
• 1 × OV7670 VGA Camera Module
