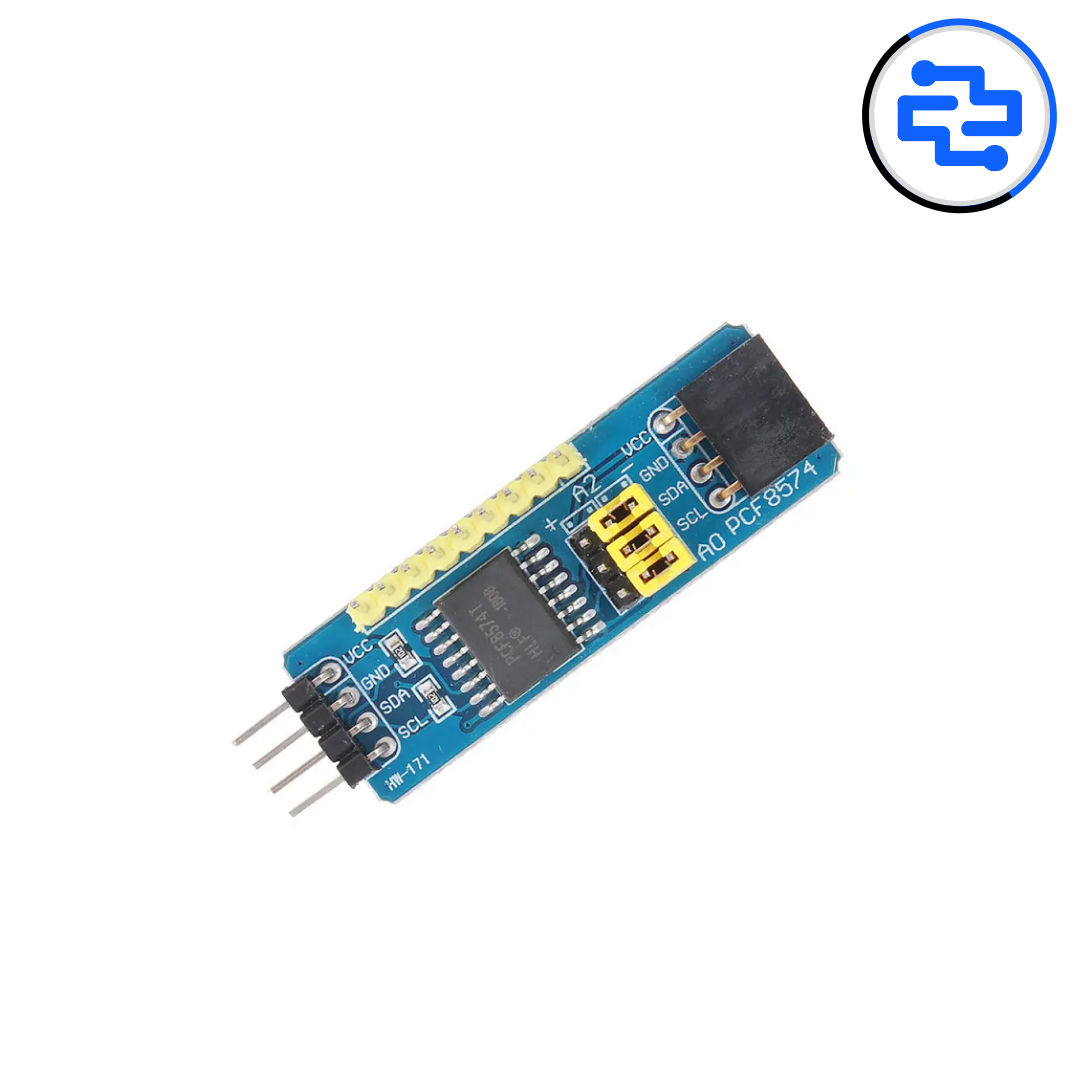

PCF8574T I2C I/O Extension Board
The PCF8574T I2C I/O Extension Board is a compact GPIO expansion module designed to increase the number of available digital input/output pins of microcontrollers using only two I2C communication lines. Based on the PCF8574T 8-bit I/O expander IC, this module provides 8 additional digital I/O pins that can be configured for input or output operations. It is widely used for connecting multiple switches, LEDs, relays, LCD displays, sensors, and other digital devices when the controller has limited GPIO pins. Available at Directronics, the PCF8574T I2C I/O Extension Board is ideal for students, hobbyists, makers, educators, and professional engineers working on Arduino, IoT, robotics, and embedded system projects. (Directronics)
Features:
• Based on PCF8574T 8-Bit I/O Expander IC
• Provides 8 Additional Digital I/O Pins (P0–P7)
• Uses I2C Two-Wire Communication Interface
• Reduces GPIO Usage of Microcontrollers
• Configurable I2C Address Using A0, A1, A2 Pins
• Supports Multiple Modules on Same I2C Bus
• Compatible with 3.3V and 5V Logic Systems
• Compact Breakout Board Design
• Low Power Consumption
• Easy Interface with Arduino, ESP32, STM32, and Raspberry Pi
• Suitable for Digital Input and Output Expansion
Why Choose PCF8574T I2C I/O Extension Board?
• Adds extra GPIO pins without using multiple controller pins
• Simplifies wiring in complex electronic projects
• Ideal for controlling multiple digital devices
• Supports easy expansion through I2C communication
• Reduces hardware complexity and saves PCB space
• Perfect for beginners, students, hobbyists, and professionals
Applications:
• I2C LCD Display Interface
• Arduino GPIO Expansion
• ESP32 Pin Expansion Projects
• Relay and LED Control Systems
• Button and Switch Input Expansion
• Robotics Control Systems
• Smart Home Automation
• IoT Device Development
• Embedded System Prototyping
• Industrial Control Applications
Technical Specifications:
• Product Type: I/O Expansion Module
• IC Used: PCF8574T
• Number of I/O Pins: 8 Digital I/O Pins
• Communication Interface: I2C
• Operating Voltage: 2.5V–6V DC
• I2C Address Range: 0x20–0x27 (Configurable)
• Address Selection: A0, A1, A2 Jumpers
• Interface Pins: VCC, GND, SDA, SCL
• Output Type: Quasi-Bidirectional Digital I/O
• Operating Frequency: Up to 100kHz (Typical)
• Compatible Controllers: Arduino, ESP32, STM32, Raspberry Pi
Package Includes:
• 1 × PCF8574T I2C I/O Extension Board
