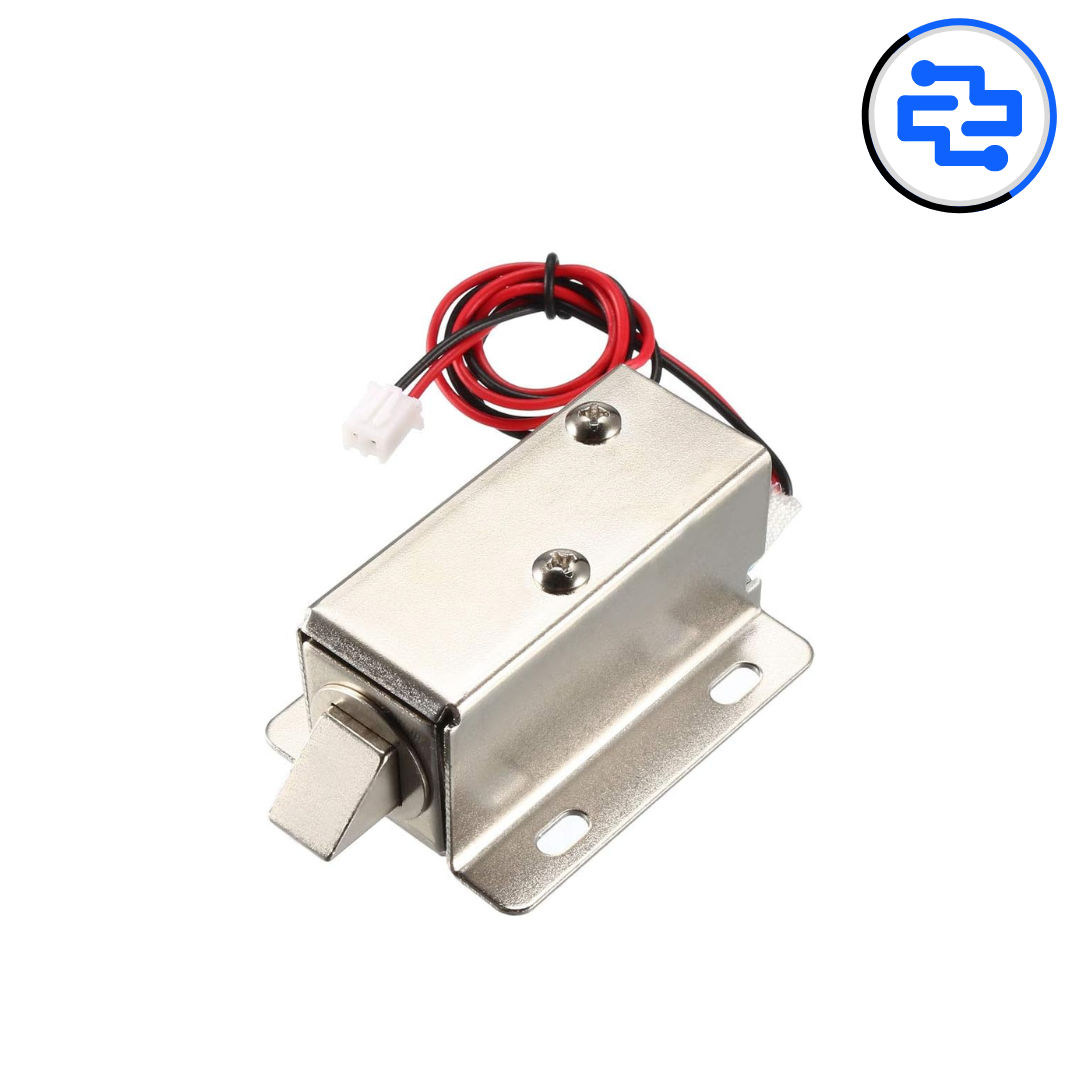

The 12V DC Solenoid Door Lock is an electrically controlled locking mechanism designed for access control and security applications. When powered, the solenoid actuates to lock or unlock the door, making it suitable for electronic door systems, smart locks, cabinets, and automation projects. Its simple operation and robust construction allow easy integration with controllers, relays, and access systems.
Core Lock Specifications
• Lock Type: Electromagnetic solenoid lock
• Operating Mode: Power ON / OFF controlled locking
• Rated Voltage: 12 V DC
• Actuation Type: Linear solenoid plunger
Electrical & Interface
• Operating Voltage: 12 V DC
• Current Consumption: ~0.8 A – 1.5 A (model dependent)
• Control Method: Relay / transistor / MOSFET
• Polarity: Non-polarized (DC)
• Duty Cycle: Intermittent (not designed for continuous ON)
Performance Characteristics
• Fast response locking and unlocking
• Strong holding force for secure closure
• Reliable operation with proper power supply
• Suitable for indoor security applications
Physical Characteristics
• Body Material: Metal housing
• Lock Mechanism: Spring-loaded plunger
• Mounting Type: Surface / embedded mounting (variant dependent)
• Compact and rugged construction
Compatibility
• Arduino (with relay or driver circuit)
• ESP8266 / ESP32
• Raspberry Pi
• RFID, keypad, and biometric access systems
Key Advantages
• Simple control using 12 V DC supply
• Easy integration with electronic access systems
• Strong mechanical locking action
• Cost-effective solution for door automation
Technical Insights
• Requires external driver; do not connect directly to GPIO
• Flyback diode recommended to protect control circuitry
• Continuous power may cause heating
• Often used in fail-secure or fail-safe configurations (model dependent)
Applications
• Smart door lock systems
• Access control using RFID or keypad
• Cabinet and locker security
• Home and office automation
• DIY security projects
Pro Tip
• Use a regulated 12 V power supply with sufficient current rating
• Always add a flyback diode across the solenoid coil
• Avoid continuous activation to prevent overheating
Package Includes
• 1 × 12 V DC Solenoid Door Lock
