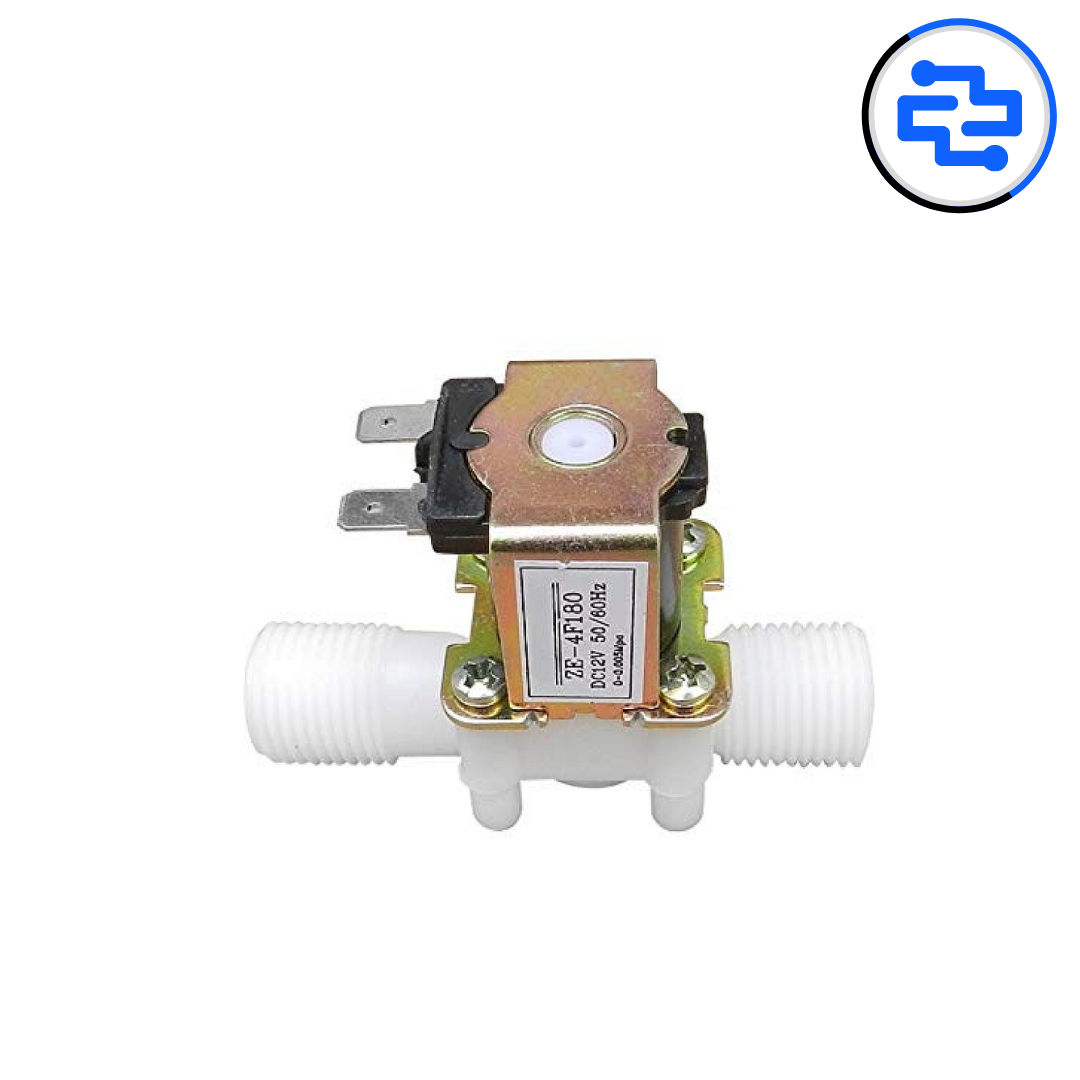

The Solenoid Water / Air Valve 12 V DC is an electrically operated valve used to control the flow of water, air, or other non-corrosive fluids automatically. When energized with 12 V DC, the valve opens or closes instantly, enabling precise flow control in automation systems. It is widely used in RO systems, smart irrigation, air control, and embedded automation projects due to its fast response and reliable operation.
Core Valve Specifications
• Valve Type: Solenoid-operated valve
• Operating Mode: Normally Closed (opens when powered)
• Rated Voltage: 12 V DC
• Media Type: Water, air, low-pressure fluids
Electrical & Interface
• Operating Voltage: 12 V DC
• Current Consumption: ~300–500 mA (model dependent)
• Control Method: Relay / MOSFET / driver circuit
• Polarity: DC (polarity-sensitive)
• Duty Cycle: Intermittent (not for continuous ON unless specified)
Performance Characteristics
• Fast switching response
• Leak-resistant sealing
• Stable operation with regulated power supply
• Suitable for low-pressure applications
Physical Characteristics
• Body Material: Plastic housing
• Inlet / Outlet: Hose pipe fittings
• Mounting Type: Inline installation
• Compact and lightweight design
Compatibility
• Arduino (with relay or driver)
• ESP8266 / ESP32
• Raspberry Pi
• PLC control systems
• Pump and fluid automation setups
Key Advantages
• Automatic flow control using electrical signal
• Simple ON/OFF operation
• Low power DC operation
• Easy integration into automation projects
Technical Insights
• Requires flyback diode for circuit protection
• Continuous power may cause coil heating
• Designed for clean water and air only
• Pressure rating depends on valve variant
Applications
• Smart irrigation systems
• RO and water purifier control
• Air flow control systems
• Home and industrial automation
• DIY electronics and IoT projects
Pro Tip
• Use a regulated 12 V power supply
• Add a flyback diode across the coil terminals
• Do not exceed recommended pressure limits
• Avoid dry running for long durations
Package Includes
• 1 × Solenoid Water / Air Valve 12 V DC
