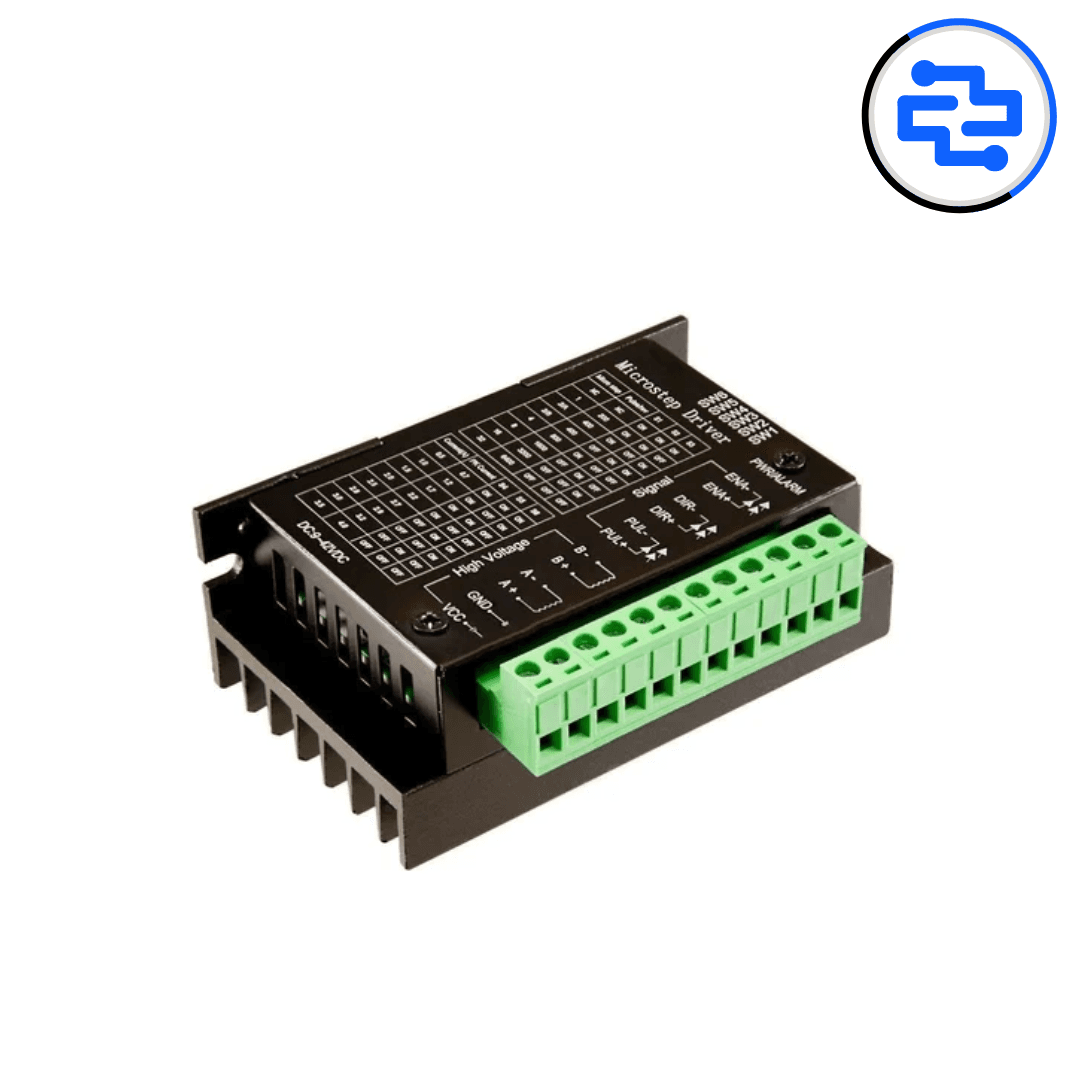

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis
The TB6600 Arduino Stepper Motor Driver is a user-friendly and professional-grade device designed for controlling two-phase stepper motors. Compatible with Arduino and other microcontrollers capable of outputting a 5V digital pulse signal, this driver offers versatility and ease of use.
With a wide power input range of 9~42VDC, the TB6600 can handle various power supplies, while its ability to output a peak current of 4A is suitable for most stepper motors. It supports speed and direction control, providing flexibility in motor operation.
Configuration is straightforward with 6 DIP switches, allowing users to set micro steps and output current. With options for 7 micro steps (1, 2/A, 2/B, 4, 8, 16, 32) and 8 current control levels (ranging from 0.5A to 3.5A), users can tailor the driver to their specific motor requirements.
Additionally, all signal terminals are equipped with high-speed optocoupler isolation, enhancing anti-high-frequency interference capabilities. This professional-grade driver is capable of driving 57, 42, and 86-type two-phase and four-phase hybrid stepper motors.
The TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis is an upgraded version, offering 32 segments for high subdivision applications. It is compatible with 57, 42, and 86-type stepper motors, both four-phase and two-phase (with 4-line, 6-line, or 8-line configurations).
Features:
- H bridge bipolar constant current drive.
- The biggest 4.0 A Eight kinds of output current are optional.
- The biggest 32 To subdivide 6 kinds of subdivision modes selectable.
- Input signal high-speed photoelectric isolation.
- A total of standard single pulse interface.
- Offline retention function.
- The semi-enclosed casing can adapt to a more stringent environment.
- Provide energy saving half automatic current lock function.
Specification:
Input Current: 0~5A
Output Current: 0.5~4.0A
Control Signal: 3.3~24V
Power (MAX): 160W
Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
Temperature: -10～45℃
H bridge bipolar constant current drive.
Package Includes:
1 x TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step.
