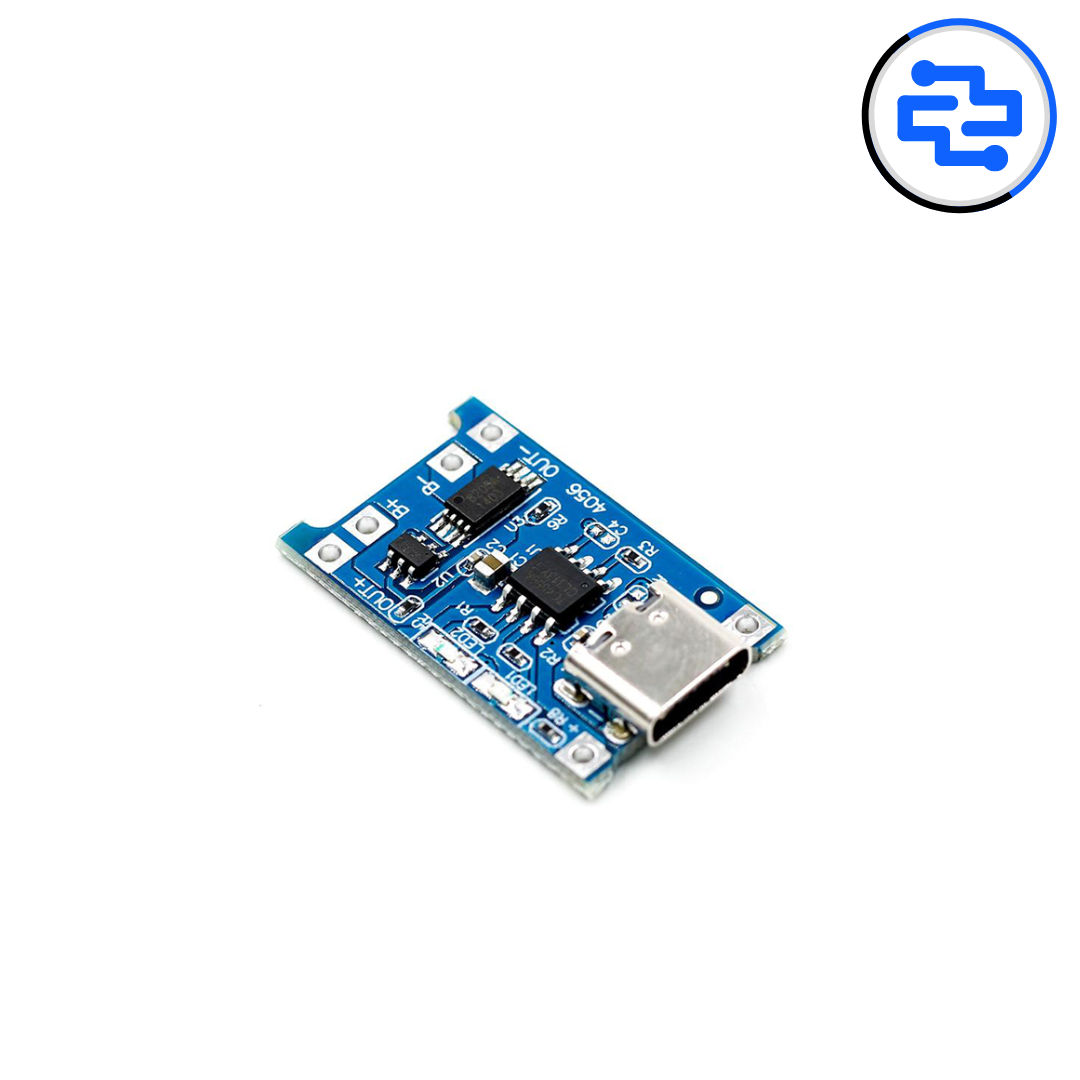

The TP4056 Charging Module with Type C connector is a compact and efficient lithium-ion battery charger designed for single-cell 3.7V Li-Ion/LiPo batteries. Featuring constant-current/constant-voltage (CC/CV) charging, overcharge protection, and a Type C input for modern devices, it provides safe and reliable charging. This module is ideal for DIY battery-powered projects, Arduino/Raspberry Pi applications, and portable electronics requiring a stable charging solution.
Technical Specifications
Core Specifications
Input voltage: 5 V DC via Type C connector
Charging current: Adjustable up to 1 A (default 1 A typical)
Battery type: Single-cell Li-Ion/LiPo (3.7 V nominal)
Charging method: Constant Current / Constant Voltage (CC/CV)
Protection: Overcharge, over-discharge, and short-circuit protection
Electrical & Physical
Type C input for modern USB power sources
Micro-LED indicators for charging (red) and full charge (blue/green)
Compact PCB size approximately 32 mm × 17 mm × 4 mm
Standard TP4056 IC with onboard protection circuitry
Easy solder pads for battery and load connections
Environmental
Operating temperature range: –10 °C to +60 °C
Suitable for indoor electronic projects and portable devices
Why Choose the TP4056 Type C Module
Safe and reliable charging for single-cell lithium batteries
Type C connector ensures compatibility with modern USB chargers
Compact design for seamless integration into DIY and portable projects
Critical Uses
DIY rechargeable battery packs for Arduino/Raspberry Pi projects
Portable LED lights and gadgets
Battery-powered IoT and sensor devices
Small robotics and hobby electronics requiring safe charging
Pro Tips
Use a high-quality 5 V Type C power source for stable charging
Ensure correct battery polarity to prevent damage
Avoid exceeding the module’s current rating for safety and longevity
Package Includes
1 × TP4056 Charging Module – Type C
