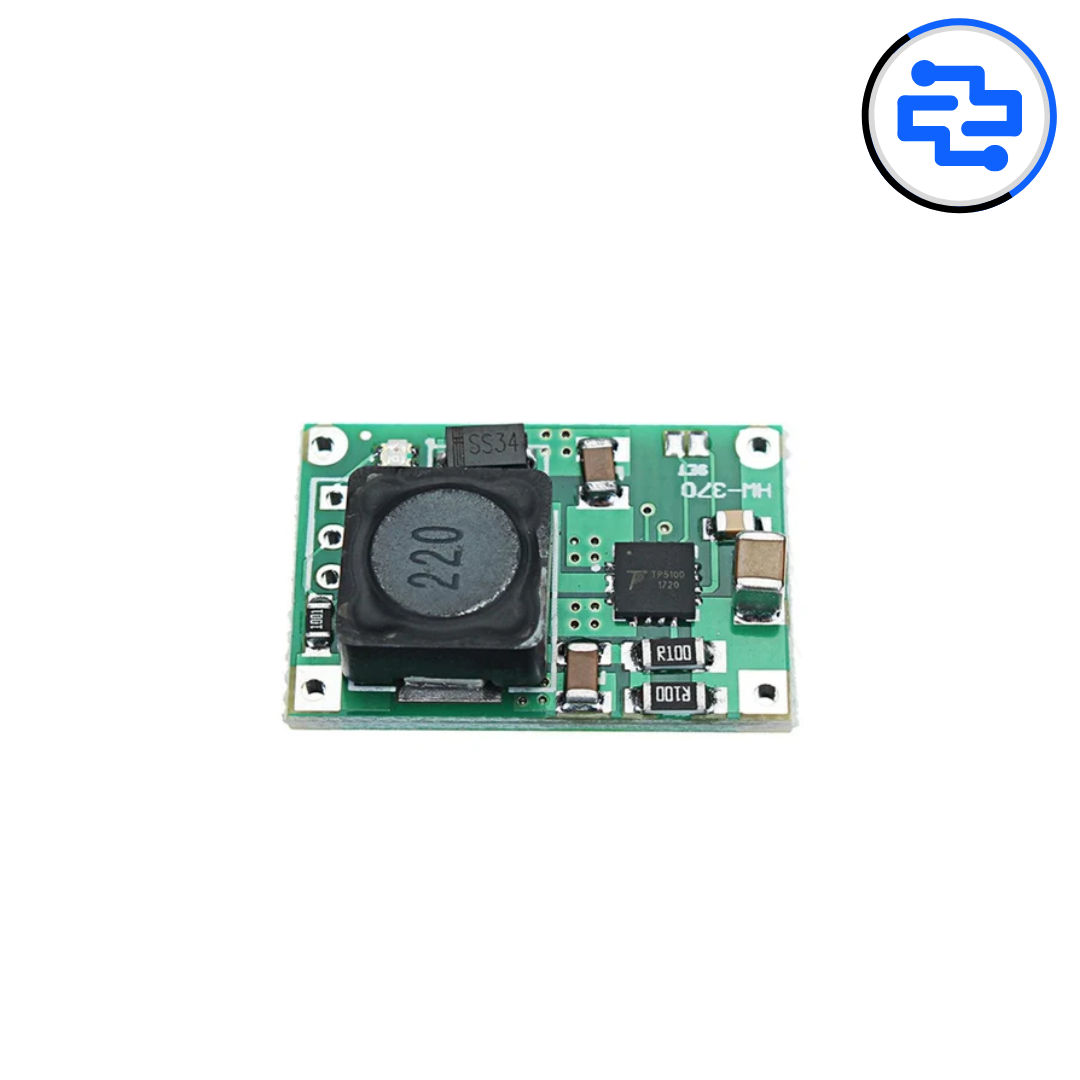

TP5100 2A Lithium Ion 18650 Battery Charger Module
- The TP5100 2A Lithium Ion 18650 Battery Charger Module is a highly efficient, dual-switch buck charge management IC designed for charging 8.4V or 4.2V lithium-ion batteries. Its compact QFN16 package and minimal external components make it ideal for portable devices that require high-current charging capabilities.
- This module is packed with built-in protection features, including safeguards against input overcurrent, undervoltage, overtemperature, short circuits, reverse battery connection, and battery temperature monitoring.
- Operating with an input voltage range of 5V to 15V, the TP5100 charges batteries in three stages: trickle charge, constant current, and constant voltage. The charge current can be adjusted via external resistors, with a maximum charging current of 2A. The 400kHz switching frequency helps minimize the size of external components and reduces heat generation, making it particularly efficient during high-current charging.
- The module also features an integrated power PMOSFET and anti-reverse protection circuitry, eliminating the need for external Schottky diodes or additional reverse protection components, thus simplifying the design and improving overall reliability.
Features:
- Double 8.4v / 4.2v lithium rechargeable single
- Programmable charge current. 0. 1A-2A
- Programmable steady pre-charge current 10% -100%
- Wide operating voltage, maximum reach I5V
- Red and green LED charge status indicator
- Chip temperature protection, overcurrent protection, under voltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
Specifications
| Model | TP5100 |
| Input Supply voltage (V) | 5 ~ 15 |
| Programmable charge current | 0.1 ~ 2 A. |
| Charge status | Full and unloaded blue lights, charging red. |
| Length (mm) | 25.5 |
| Width (mm) | 17.3 |
| Height (mm) | 5 |
| Weight (gm) | 3 |
Application
- Portable equipment, various chargers
- Smartphone, PDA, mobile cellular telephone
- MP4, MP5 players, tablets
- HM
- Power Tools
- Walkie-talkie
Specifications:
| Width (mm): | 17.3 |
|---|---|
| Height (mm): | 5 |
| Weight (g): | 3 |
Package Includes
- 1 x TP5100 4.2v 8.4v Single Double Lithium Battery Charging Board.
