- Package Type: TO-18
- Transistor Type: NPN
- Max Collector Current(IC): 100mA
- Max Collector-Emitter Voltage (VCE): 45V
- Max Collector-Base Voltage (VCB): 50V
- Max Emitter-Base Voltage (VBE): 5V
- Max Collector Dissipation (Pc): 300 Milliwatt
- Max Transition Frequency (fT): 100 MHz
- Minimum & Maximum DC Current Gain (hFE): 110 to 450
- Max Storage & Operating temperature Should be: -65 to 150 Centigrade
BC107 Transistor Explained / Description:

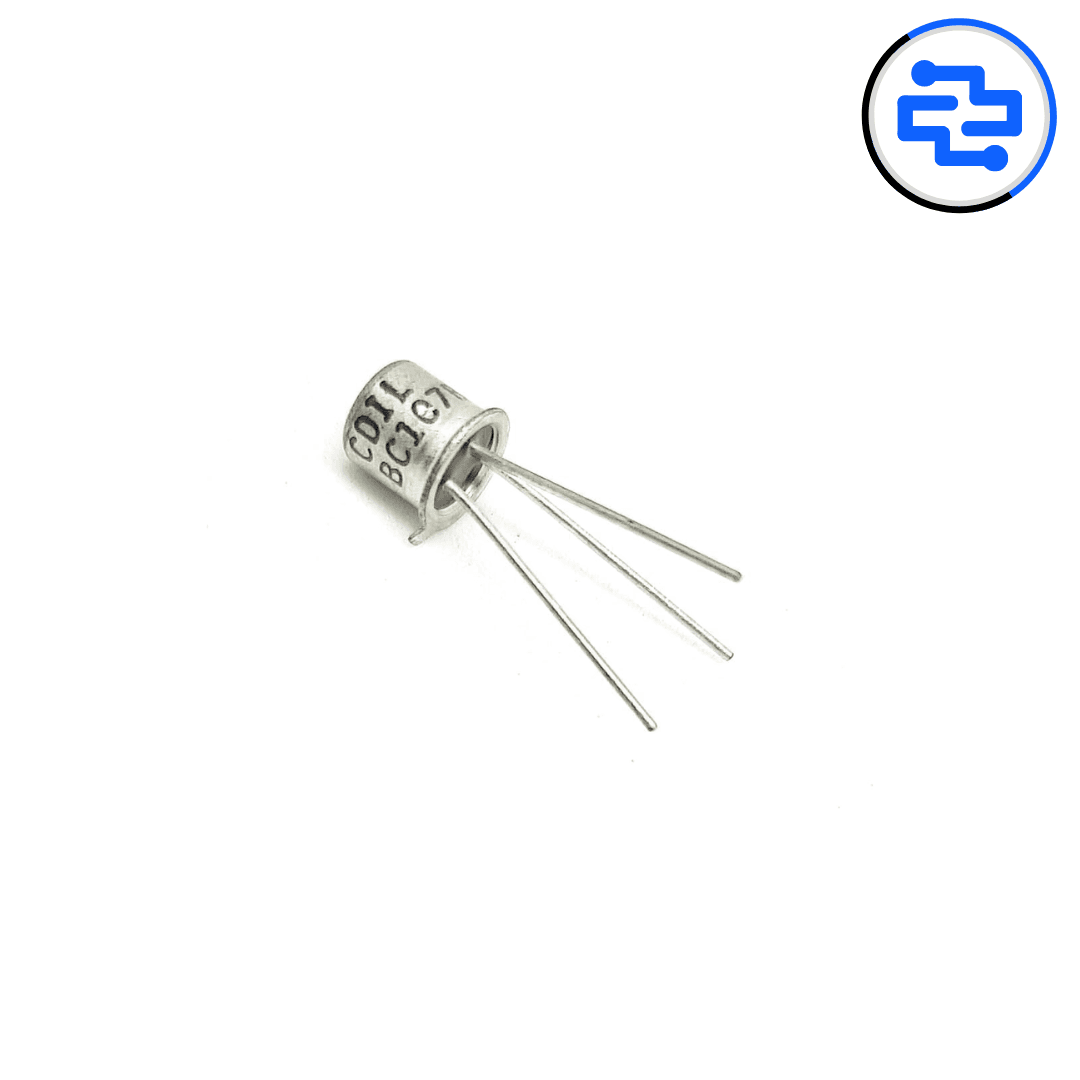

BC107 is a widely used NPN transistor, it is the transistor of BC10x NPN transistors series, and the other transistors in this series are BC108 and BC109. Like the other transistors of this series BC107 is also manufactured in TO-18 package. The maximum collector current of the transistor is 100mA and the maximum peak collector current is 200mA. The maximum collector for emitter voltage is 45V; the maximum collector for emitter voltage is the voltage that determines the maximum load voltage that this transistor is capable to drive. The max collector dissipation is 300mA and the max transition frequency is 100MHz.
Moreover the transistor has quite good low noise capabilities with the maximum DC current gain of 450.
Where We Can Use It & How to Use:
BC107 is a low noise and high gain transistor which makes it ideal to use in wide variety of small single amplification, audio preamplifiers, audio amplifiers and any type of signal amplification in electronics. The low noise capability of this transistor also makes it ideal to use in very small low gain and noisy signal amplification. Moreover it can also be used as variety of general purpose switching and amplification purposes.
Applications:
Low noise circuitry
Low noise signal processing
Radio and RF circuits
Switching circuits
Darlington pairs
Safe Operating Guidelines / Absolute Maximum Ratings:
To ensure safe use and long-term performance of the component, we should not use any component at its maximum rating and we always suggest to stay 20% below from its absolute maximum ratings. The maximum collector current of the transistor is 100mA therefore do not drive load of more than 80mA, the maximum collector-emitter voltage is 45V therefore do not drive load of more than 36V. The transistor collector is attached to the case so the transistor case should be isolated from rest of the circuit connections or if heat sink is used it should also be isolated from the circuit. The transistor should be used at temperature above -65 °C and below 150°C.
