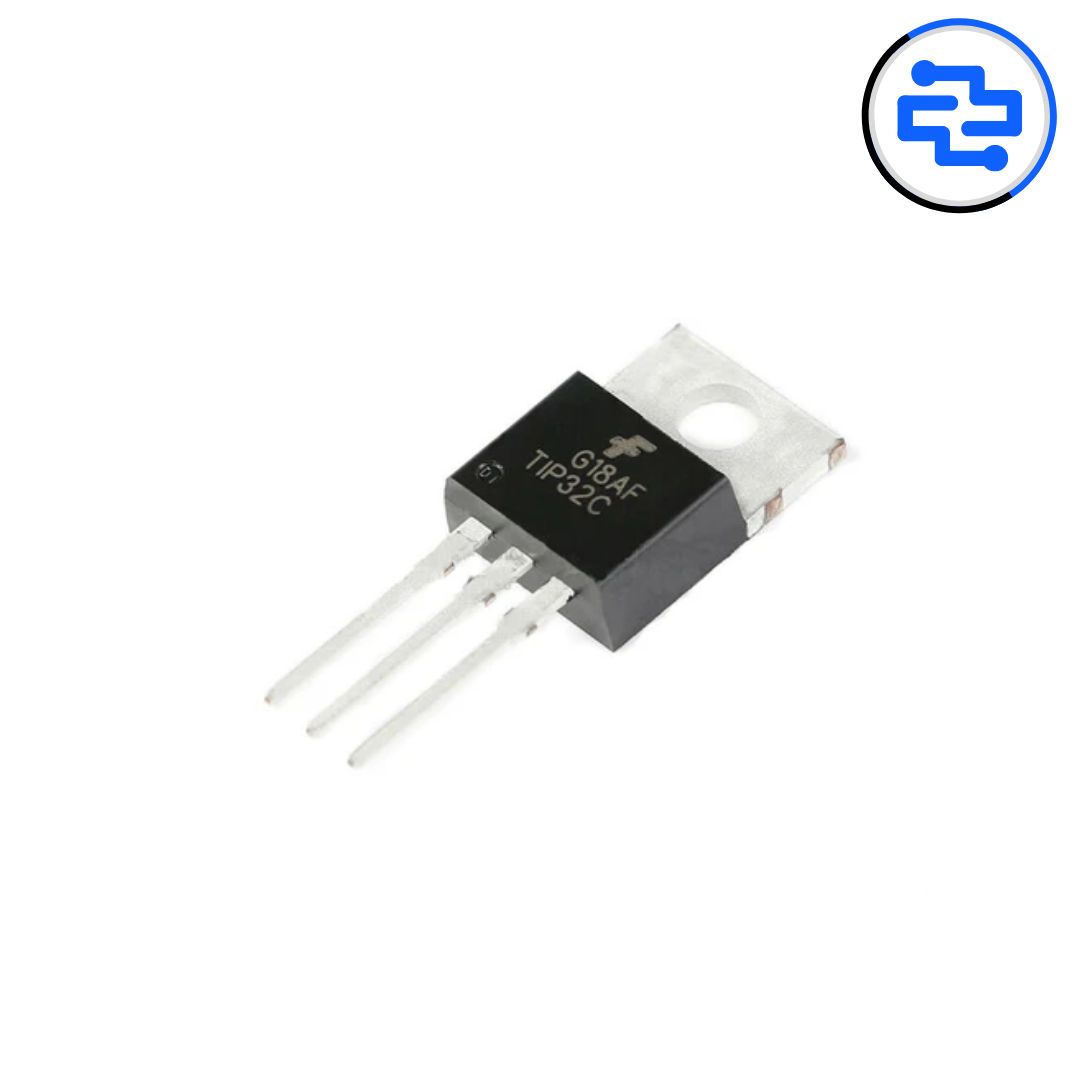

TIP32C PNP Bipolar Power Transistor 100V 3A TO-220 Package is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low distortion complementary designs
- Easy to carry and handle
Specifications:
- Transistor Polarity: PNP
- Collector−Emitter Voltage (VCEO): 40VDC
- Collector−Base Voltage (VCBO): 40VDC
- Continuous Collector Current (Ic): 3ADC
- Continuous Base Current (Ib): 1ADC
- Emitter Base Voltage (VEBO): 5VDC
- Power Dissipation (Pd): 40W
- Operating Temperature Range: -65 – 150°C
- DC Current Gain (hFE): 18537
Package Includes:
- 1 x TIP32C PNP Bipolar Power Transistor
