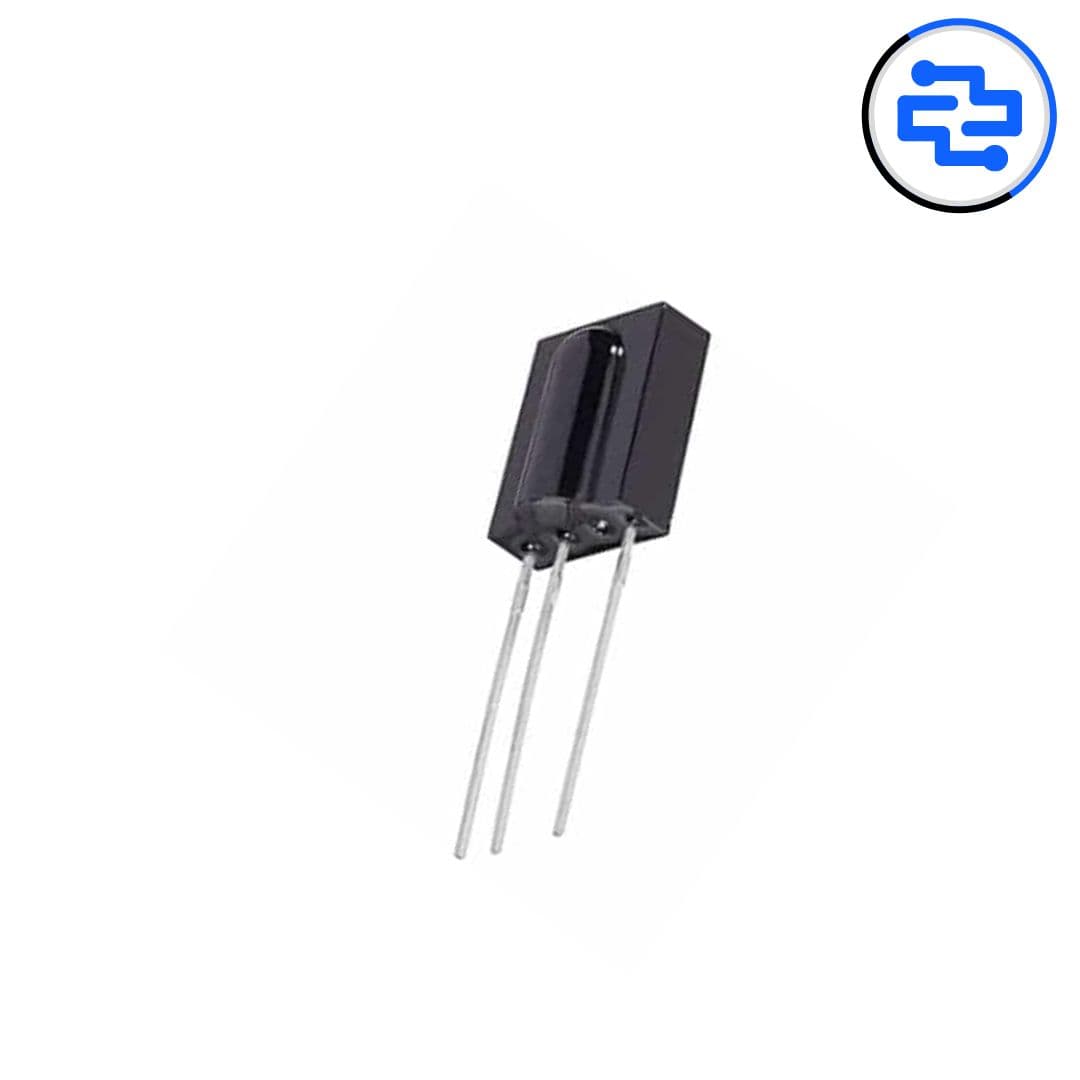

TSOP1738 IR Receiver – Infrared Receiver. The TSOP1738 IR Receiver, also known as an Infrared Receiver, is a compact sensor designed for IR remote control systems. It comprises a PIN diode and a preamplifier integrated onto the lead frame, enclosed in an epoxy package that acts as an IR filter. Part of the TSOP series, this sensor is widely compatible with various controllers and processors, enabling direct decoding of the demodulated output.
Features:
- Compact design with integrated photo detector and preamplifier
- Internal filter optimized for PCM frequency
- Enhanced shielding against electrical field disturbances
- Compatible with TTL and CMOS logic levels
- Low power consumption for efficient operation
- High immunity to ambient light interference
- Supports continuous data transmission up to 2400 bps
- Suitable burst length of 10 cycles/burst
Specifications:
- Supply Voltage: 5 V
- Power consumption: 0.4 to 1.0 mA
- Min. Ee irradiation: 0.35 mW/m2 typ.
- Angle of detection: 90
- Dimensions of the casing (mm): 12.5 x 10 x Thickness 5.8
- Temperature range: -25 C to +85 C
Package Includes:
1 x TSOP1738 IR Receiver – Infrared Receiver
