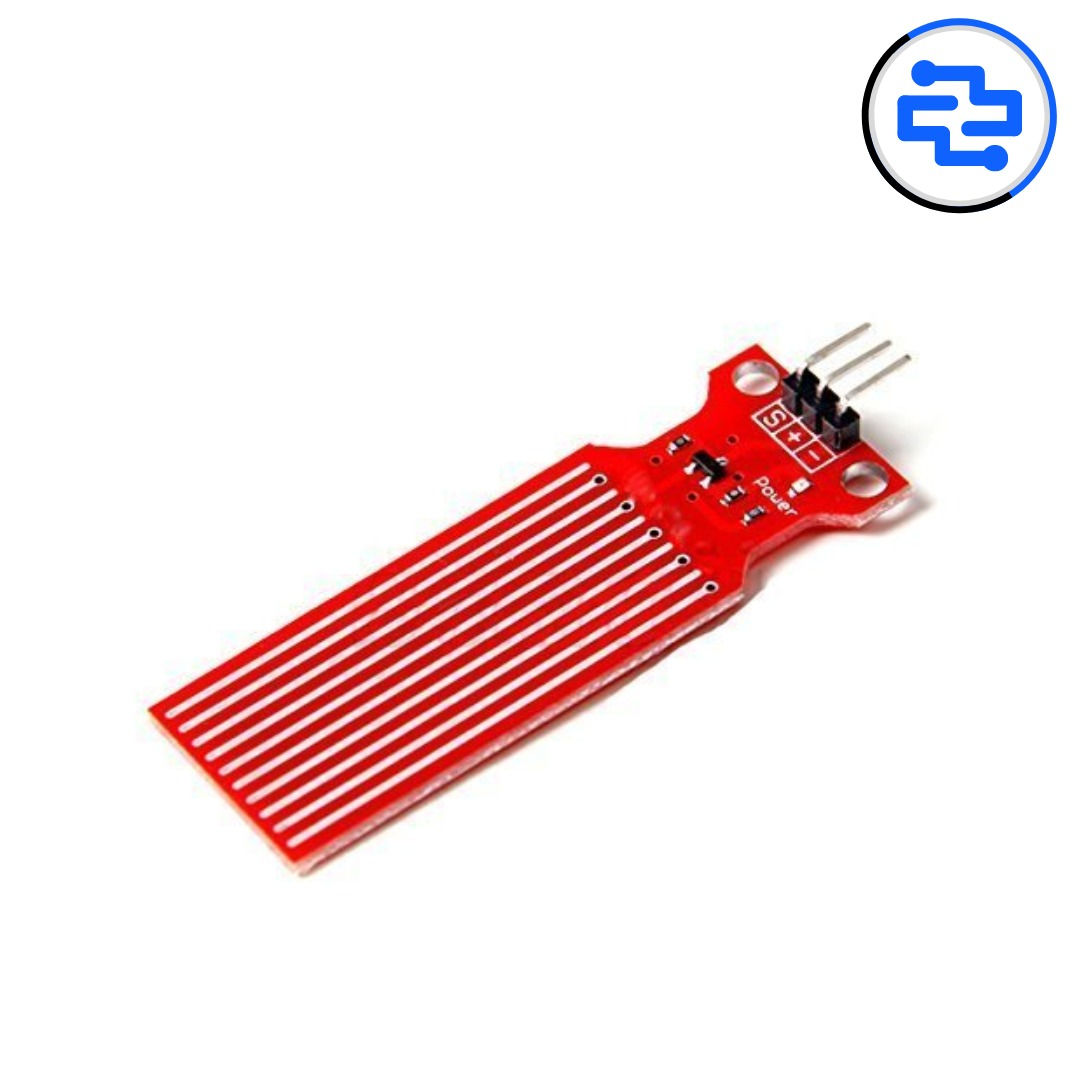

This water level sensor detects liquid depth and presence through exposed parallel traces, providing analog output for precise measurement. The red PCB module is ideal for water tanks, irrigation systems, and leak detectors, with corrosion-resistant nickel plating for durability.
Key Benefits
✔ Analog Output – Measures water depth (0–5V)
✔ Corrosion-Resistant – Nickel-plated traces
✔ No Moving Parts – Solid-state reliability
✔ Easy Installation – Mount vertically/horizontally
Technical Specifications
Core Specifications
Operating Voltage: 3.3V–5V DC
Output Signal: Analog (0–5V, higher = more water)
Detection Area: 40mm × 16mm (exposed traces)
Max Depth: ≤40mm (submersion limit)
Electrical Characteristics
Current Consumption: <20mA
Interface: 3-pin (VCC, GND, AO)
Physical Properties
Dimensions: 60mm × 30mm × 8mm
Material: FR4 PCB + nickel-plated contacts
Weight: ~9g
Why Choose This Sensor?
✔ Plug-and-Play – Works with Arduino/ESP/RPi
✔ Budget-Friendly – Low-cost liquid detection
✔ DIY Projects – Perfect for hydroponics/automation
Common Uses:
Water tank level monitoring
Automatic plant watering
Leak/flood alarms
Pro Tip:
For digital detection, use a comparator (not included).
Avoid saltwater/submerging electronics!
Package Includes:
1 x Water Level Depth Detection Sensor Module
