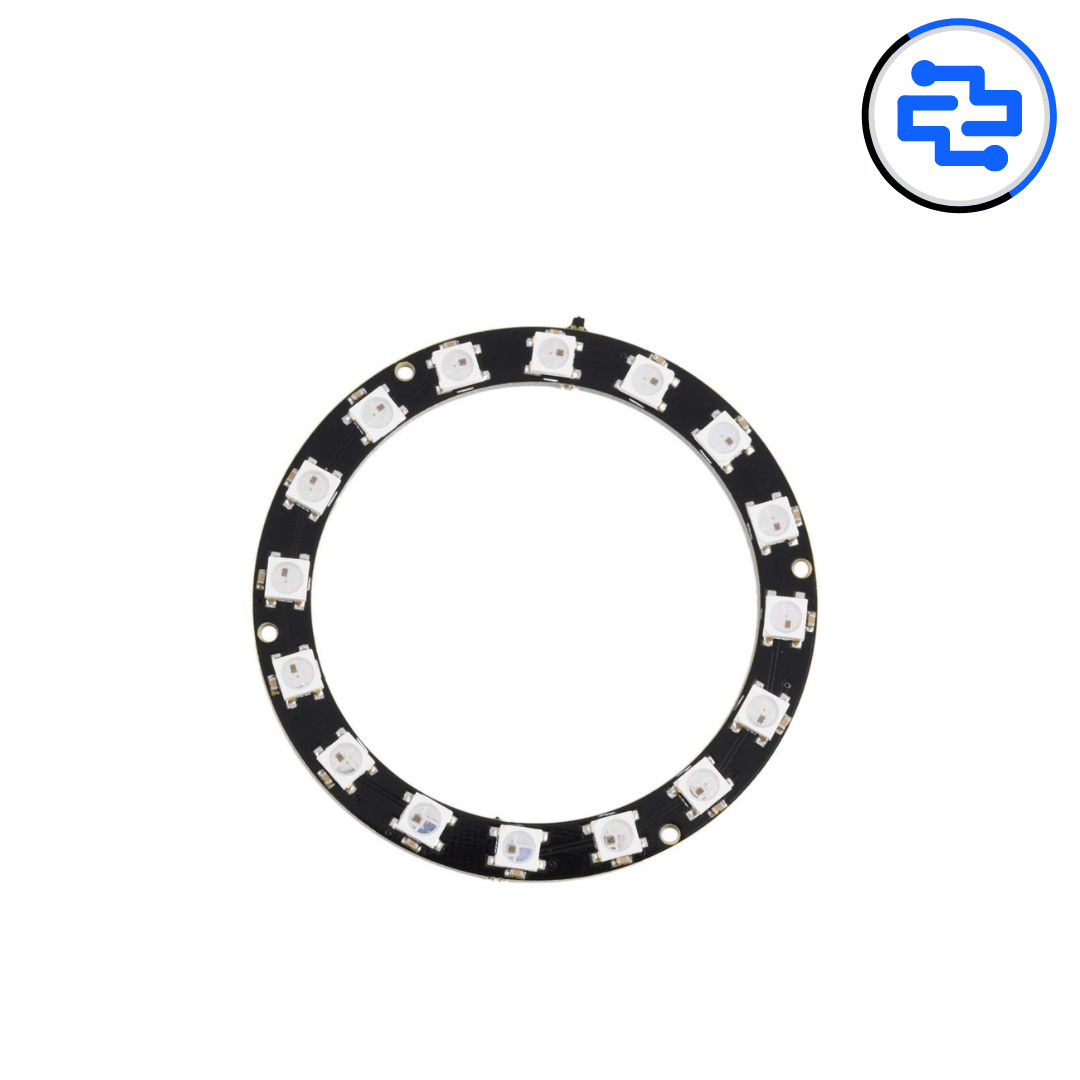

The 16Bit WS2812B 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board has round black shape, let us be clear at a glance! 16 super bright smart NeoPixels LED arranged in a 68mm outside diameter circular PCB.
Features :
- The control circuit and the LED share the only power source.
- Control circuit and RGB chip are integrated into a package of 5050 components, form a complete control of pixel point.
- Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
- Built-in electric reset circuit and power lost reset circuit.
- Each pixel of the three primary colors can achieve 256 brightness levels, or 16M colors full-color display, and scan frequency not less than 400Hz/s.
- Cascading port transmission signal by a single line.
- Any two points the distance more than 5m transmission signal without any increase circuit.
- When the refresh rate is 30fps, cascade number is not less than 1024 points.
- Send data at speeds of 800Kbps.
- The color of the light was highly consistent
- Full-color module, Full-color soft lights a lamp strip.
- LED decorative lighting, Indoor/outdoor LED video irregular screen.
Package Includes :
1 x 16Bit WS2812B 5050 RGB LED
