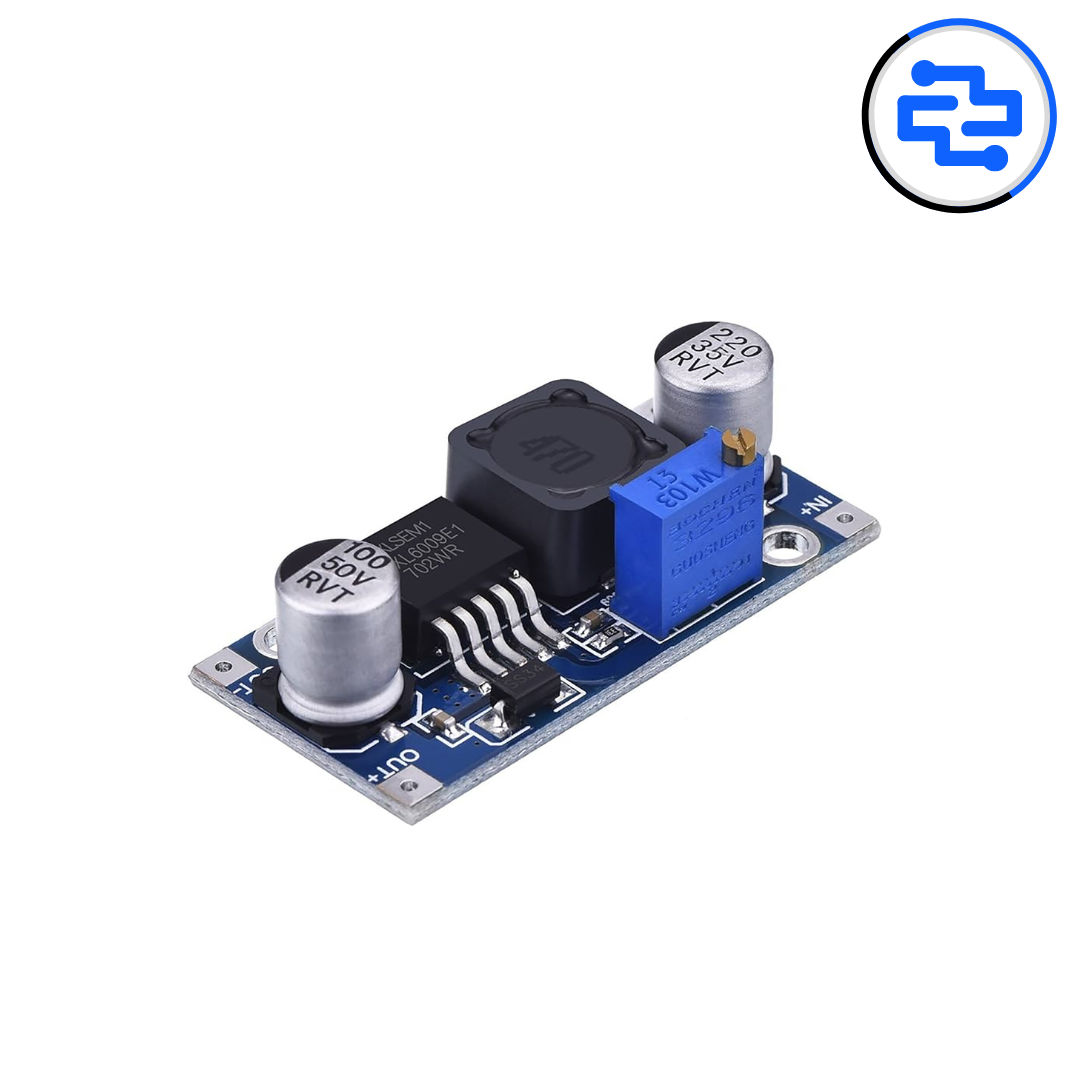

The XL6009 is a high-performance boost (step-up) converter module designed to efficiently increase a lower DC voltage to a higher, stable DC output. Based on the XL6009 switching regulator IC with integrated MOSFET, it provides excellent line and load regulation, making it ideal for battery-powered systems, LED drivers, solar projects, and DIY electronics where higher voltage is required than the input source can provide.
Technical Specifications
Core Specifications
Input voltage range 3.5 V to 32 V DC
Adjustable output voltage 5 V to 35 V DC (must be higher than input)
Maximum output current up to 4 A peak (recommended 2–3 A continuous with proper cooling)
Conversion efficiency up to 94 % depending on input/output conditions
Switching frequency 400 kHz for fast response and low ripple
Electrical & Physical
Onboard multi-turn potentiometer for precise voltage adjustment
Integrated high-current inductor and Schottky diode for stable operation
Module dimensions approximately 43 mm × 21 mm × 14 mm
Environmental
Operating temperature –40 °C to +85 °C
Built-in thermal shutdown and current limiting for safe, reliable use
Why Choose the XL6009
High efficiency with low heat generation, perfect for portable devices
Wide input range and adjustable output for versatile power applications
Compact design for easy integration into DIY or professional projects
Critical Uses
Boosting battery power for higher-voltage circuits
LED lighting and high-power LED drivers
Solar-powered projects and portable power banks
DC motor drivers requiring higher operating voltage
Pro Tips
Adjust the output voltage before connecting to sensitive electronics
Use a proper heatsink or active cooling for currents above 2 A
Ensure the output voltage is set higher than the input voltage to maintain stable operation
Package Includes
1 × XL6009 DC-DC Step-Up Converter Module
